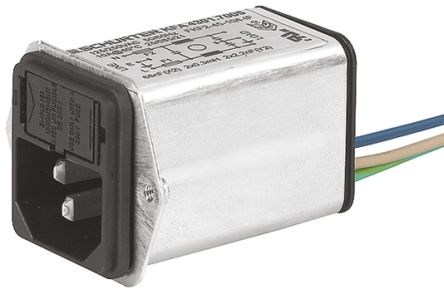

4301.7002
| 制造商 | |
| 描述 | Power Entry Module Filtered M 3 POS 250VAC 2A Fuse ST 1 Port KFA G-STECKER-KOMBI MIT FILTER 2A KFA POWER ENTRY MOD W. FLTR 2A AC Power Entry Modules 2 pole 2A INLET FILTER, IEC, SCREW, 2POLE, 2A KFAPOWERENTRYMODULEW.FILTER2A Schurter C14 螺钉 插头 IEC 滤波器 5 x 20mm, 快速连接端接, 额定2A, 125 V 交流，250 V 交流 |
| 分类 |
商业参数
| 最小起订量 | 10 | 产品 | Inlets |
| 单位包装 | 10 | 产品类别 | AC Power Entry Modules |
| 标准包装数量 | Bulk | 工厂包装数量 | 10 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85363010 | 认证机构 | :CCC |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 电流 | 2A | 电压 | 125/250VAC |
| 滤波器类型 | General Purpose | 额定电压 | 250 V |
| 开关功能 | Switched | 最大额定电流 | 2 A |
| 最小输入电压 | 250 Vac | ||
机械参数
| 重量 | 2.328081 oz | 端接方式 | Faston |
| 安装类型 | Flange Mount | 连接器类型 | IEC/EN 60320-1/C14|UL 498|CSA C22.2 |
| 安装样式 | Screw | 保险丝座类型 | Sold Separately |
| 壳体材料 | Thermoplastic | 端接样式 | Quick Connect |
| 触点数 | 3 | 接触件端接 | :Quick Connect |
| 第一连接器安装类型 | :Panel | ||
产品信息
| 类型 | Filtered | 带保险丝 | Yes |
| 连接器性别 | :Plug | 系列 | KFA |
| 产品特性 | Fuse Holder | 插头类型 | :IEC 60320 C14 |
环境参数
| 工作温度 | - 25 C to + 85 C | ||
