点击放大查看

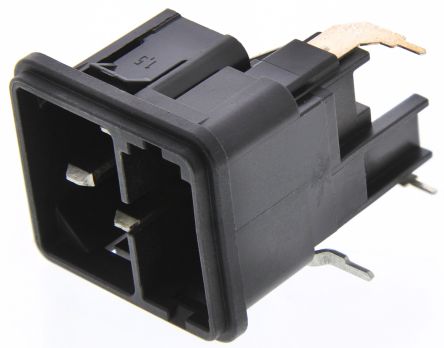

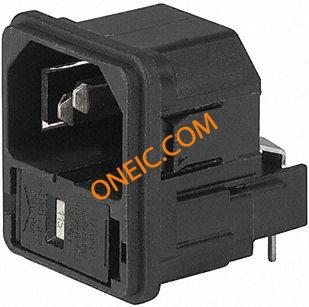

4301.3202
| 制造商 | |
| 描述 | Power Entry Module Unfiltered M 3 POS 250VAC 10A Fuse ST 1 Port KEA G-STECKER-KOMBI 10A MOD PWR ENTRY SNAP 1.5MM PNL MNT C14 Male Right Angle Panel Mount IEC Connector Snap-In Fuse Size 5 x 20mm, Rated At 10A, 250V ac AC Power Entry Modules KEA PWR ENTRY MODUL 10A IECinletC14PCBsnap-inmntfused10A Schurter C14 面板安装 直角 插头 IEC 插头 嵌入式, 熔断器尺寸5 x 20mm, 额定10A, 250 V 交流 |
| 分类 |
商业参数
| 最小起订量 | 50 | 产品 | Inlets |
| 交货时间 | 42 Days | 单位包装 | 50 |
| 子类别 | Power Entry Module | 标准包装数量 | Bulk |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 电流 | 10A | 电压 | 250V |
| 滤波器类型 | No | 额定电压 | 250 V ac |
| 开关功能 | Not Switched | 最大额定电流 | 10A |
| 最小输入电压 | 250 Vac | ||
机械参数
| 重量 | 0.610240 oz | 方向 | 直角 |
| 端接方式 | Solder | 安装类型 | Panel Mount |
| 连接器类型 | IEC/EN 60320-1 | 安装样式 | Panel |
| 连接器样式 | IEC 320-C14 | 保险丝座类型 | Sold Separately |
| 壳体材料 | Thermoplastic | 槽数 | 2 |
| 端接排数 | 嵌入式 | 连接器 - 电缆 | C14 |
| 端接样式 | Quick Connect - 0.187" (4.7mm) | 触点数 | 3 |
| 位数 | 3 | 连接器/触点类型 | C14 |
产品信息
| 类型 | Unfiltered | 带保险丝 | Yes |
| 连接器性别 | Male | 系列 | KEA-Print |
| 产品特性 | Fuse Holder | 保险丝尺寸 | 5 x 20mm |
| 保险丝类型 | 5 x 20mm | 开关类型 | None |
环境参数
| 工作温度 | - 25 C to + 70 C | ||
文档与媒体
