点击放大查看

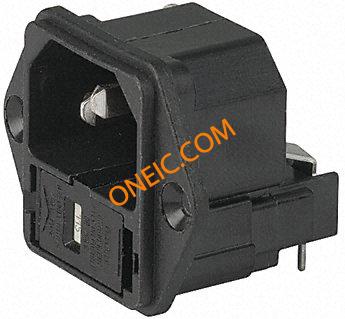

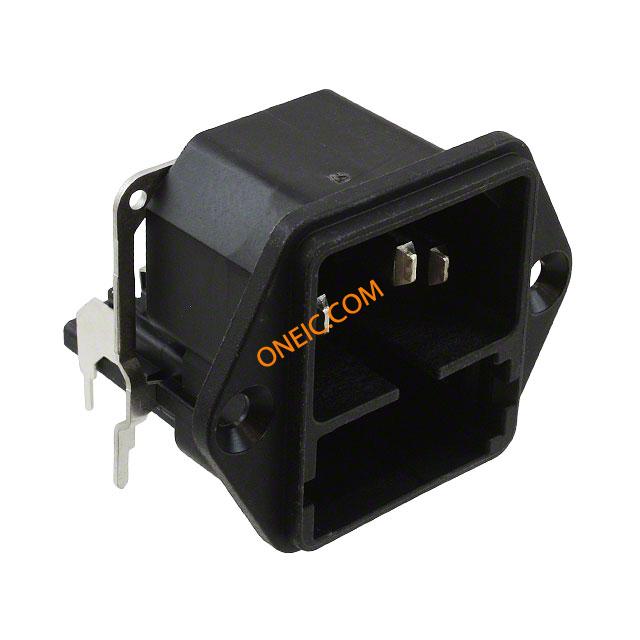

4301.3201
| 制造商 | |
| 描述 | Power Entry Module Unfiltered M 3 POS 250VAC 10A Fuse RA 1 Port AC Power Entry Modules KEA PWR ENTRY MODUL 10A KEA G-STECKER-KOMBI 10A MOD PWR ENTRY SCREW-ON PNL MNT C14 Male Right Angle Panel Mount IEC Connector, Screw Down Termination Fuse Size 5 x 20mm, Rated At 10A, 250V ac Power Entry Module Unfiltered M 3 POS 250VAC 10A Fuse Straight/Right Angle 1 Port INLET, IEC, C14, KEA PRINT, 10A CONN, FUSED POWER ENTRY MODULE, PLUG 10A KEAPOWERENTRYMODUL10A Schurter C14 面板安装 直角 插头 IEC 插头, 螺钉拧紧端接, 熔断器尺寸5 x 20mm, 额定10A, 250 V 交流 |
| 分类 |
商业参数
| 最小起订量 | 50 | 交货时间 | 20 Days |
| 单位包装 | 50 | 子类别 | Power Entry Module |
| 标准包装数量 | Bulk | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85369010 | 认证机构 | :CCC |
电气参数
| 电流 | 10A | 电压 | 250V |
| 额定电压 | 250 V ac | 额定交流电压 | :250V |
| 最大额定电流 | 10A | 最小输入电压 | 250 Vac |
| 最小供电电压 | 250VAC | ||
机械参数
| 深度 | 41.4 mm | 高度 | 34 mm |
| 重量 | 0.634931 oz | 端接方式 | Solder |
| 安装类型 | Through Hole | 连接器类型 | IEC/EN 60320-1/C14 |
| 安装样式 | Through Hole | 连接器样式 | IEC 320-C14 |
| 保险丝座类型 | Sold Separately | 本体材料 | :Thermoplastic |
| 总长度 | 44 mm | 槽数 | 2 |
| 连接器 - 电缆 | C14 | 端接样式 | Quick Connect - 0.187" (4.7mm) |
| 连接器颜色 | :Black | 触点数 | 3 |
| 接触件端接 | :Through Hole Vertical | 位数 | 3 |
| 第一连接器安装类型 | :Panel | ||
产品信息
| 类型 | Unfiltered | 连接器性别 | Male |
| 系列 | KEA-Print | 产品特性 | Fuse Holder |
| 保险丝尺寸 | 5 x 20mm | 保险丝类型 | :10A |
| 开关类型 | None | 端口数 | 1 Port |
| 附加接口 | Fuse | ||
环境参数
| 工作温度 | -25C to 70C | ||
