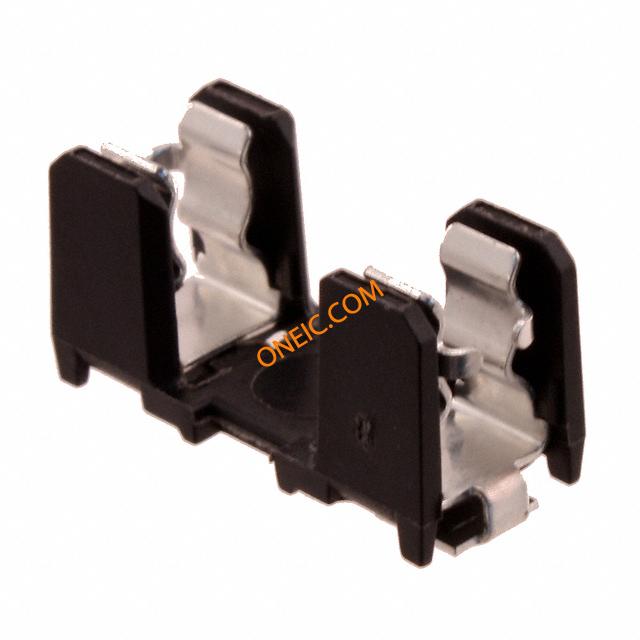

点击放大查看
0031.8225
| 制造商 | |
| 描述 | Fuse Holder 10A 500VDC Clip Holder Blister T/R Fuse Holders OGN-SMD 5x20 OGN-SMD SICHERUNGSHALTER 5X20 FUSE BLOK CARTRIDGE 500V 10A SMD FUSEHOLDER BLACK FOR SMD 5X20MM OGN-SMDFUSEHOLDER5X20 Fuse Holder OGN-SMD 5x20 OGN SMD FUSE HOLDER |
| 分类 |
商业参数
| 最小起订量 | 400 | 产品 | Fuse Holders |
| 单位包装 | 400 | 其他名称 | 486-1723-6 |
| 产品类别 | Fuse Holders | 标准包装数量 | Trays |
| 工厂包装数量 | 400 | ||
合规参数
| RoHS | RoHS Compliant | 材料阻燃等级 | UL94V-0 |
电气参数
| 电压 | 500V | 额定电压 | 250 V |
| 极数 | 1 | 最大额定电流 | 10 A |
机械参数
| 尺寸 | 22.7x13.2x10.8mm | 颜色 | Black |
| 深度 | 10.8 mm | 高度 | 13.2 mm |
| 重量 | 0.066668 oz | 包装方式 | Tape and Reel |
| 安装类型 | Holder | 接触镀层 | Tin |
| 安装样式 | SMD/SMT | 保险丝座类型 | Block |
| 本体材料 | Thermoplastic | 触头材料 | Copper Alloy |
| 总长度 | 25 mm | 刀片材料 | CopperAlloy,TinPlated |
| 端接样式 | SMD (SMT) Tab | 接线端子类型 | SMD |
产品信息
| 类型 | Fuse Holder | 系列 | OGN-SMD |
| 保险丝尺寸 | 5mm x 20mm | 保险丝类型 | Cartridge |
| 照明类型 | No | 制造商全称 | SMDSeries |
| 电路数 | 1 | 射频系列/标准 | 0031 |
| 适用产品/相关产品 | 5mm x 20mm | ||
环境参数
| 工作温度 | - 40 C to + 85 C | 结工作温度 | 85C |
文档与媒体
相关型号
0853.0551
schurter
Fuse Cover 10A 500VDC Holder Plastic Bag Fuse Holders Accessories COVER OGN mAX 1.6 0853.0551 TRANS COVER COVER FUSEBLK TRANSP PCB 5X20MM Cover for OGN fuse holders COVER, FOR OGN FUSEHOLDERS TransparentCover;Fuseholder Cover; OGN series, OGN-SMD series Covering hood ø 5 x 20 mm OGN, 0853.0551, Schurter Schurter OGN 系列 PCB 固定熔断器座盖, 使用于5 x 20mm熔断器, IP00 Fuse Holder Accessories COVER OGN mAX 1.6
0853.0576
schurter
Fuse Cover 10A 500VDC Holder Plastic Bag Fuse Holders Accessories OGN-SMD Locking Cover 0853.0576 Cover with Clamp COVER REFLOW W/CLAMP PCB 5X20MM OGNCOVER Fuse Holder Accessories OGN-SMD Locking Cover
0853.0571
schurter
Fuse Cover 10A 500VDC Holder Plastic Bag Fuse Holders Accessories SMD Cover Reflow OGN ABDECKHAUBE COVER FUSEBLK REFLOW PCB 5X20MM FUSE HOLDER COVER Fuseholders;OGN-SMDCOVER Covering hood ø 5 x 20 mm OGN, 0853.0571, Schurter Fuse Holder Accessories SMD Cover Reflow
