点击放大查看

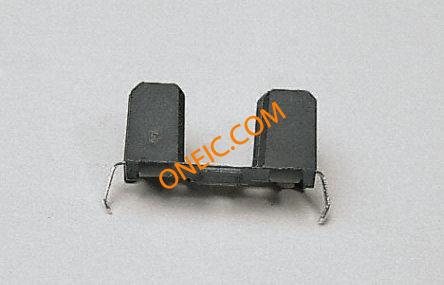

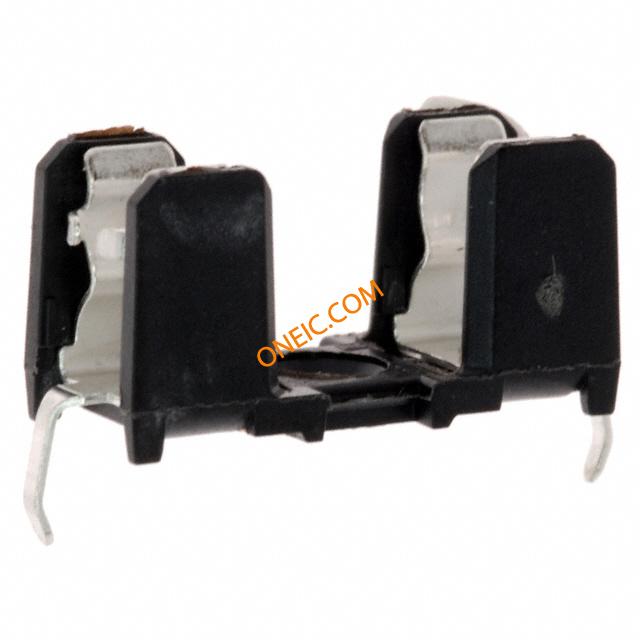

0031.8201
| 制造商 | |
| 描述 | Fuse Holder 10A 500VDC Solder Pin Through Hole Bulk Fuse Holders FUSE-HOLDER OGN 0031.8201 FUSEHOLDER OGN FUSE BLOK CARTRIDGE 500V 10A PCB Fuseholder 5x20mm OGN 10A FUSE HOLDER, PCB, 20X5MM FuseHolder;250V;10A;22.5;3kV(Min.)@50Hz,1Minute;CopperAlloy Fuse holder; tube fuses; Mounting: PCB; 5x20mm; -40÷85°C; 10A; 5mΩ Open fuse holder ø 5 x 20 mm OGN, 0031.8201, Schurter Schurter 10A PCB 固定熔断器座 , 适用于管式熔断器, 250 V 交流 Fuse Holder FUSE-HOLDER OGN |
| 分类 |
商业参数
| 最小起订量 | 100 | 产品 | Fuse Holders |
| 交货时间 | 35 Days | 单位包装 | 100 |
| 子类别 | Fuse Accessories | 产品类别 | Fuse Holders |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85363010 | 汽车级 | NO |
| 无铅定义 | RoHS-conform | 认证机构 | VDE/UR |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 电压 | 500V | 容量（如电池容量、线径容量等） | 0853.0551 |
| 电容 | extraY/N | 额定电压 | 250 V |
| 极数 | 1 | 接触电阻 | :5mohm |
| 最大额定电流 | 10 A | 每极负载侧连接方式 | :Through Hole |
机械参数
| 颜色 | Black | 深度 | 10.8 mm |
| 间距 | 25mm | 宽度 | 9.6mm |
| 高度 | 11.5mm | 长度 | 22.5mm |
| 重量 | 0.059966 oz | 包装方式 | Bulk |
| 方向 | Horizontal | 端接方式 | THT |

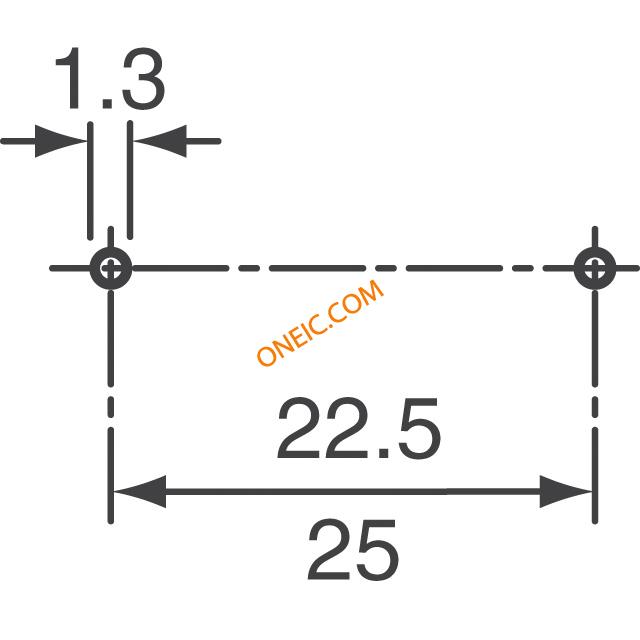

| 引脚间距 | :22.5mm | 基体材料 | Thermoplastic |
| 安装类型 | Through Hole | 端子类型 | :Solder |
| 接触镀层 | Tin | 安装样式 | Through Hole, Horizontal |
| 保险丝座类型 | Block | 锥体材料 | TIN |
| 触头材料 | Copper Alloy | 总长度 | 25 mm |
| 包装数量 | 100 | 连接器间距 | 22.5mm |
| 端接样式 | PC Pin | 连接器颜色 | black |
| 触点材料 - 镀层 | tinned | ||
产品信息
| SPG | 100 | 类型 | Fuse Holder |
| 系列 | OGN | 保险丝尺寸 | 5mm x 20mm |
| 保险丝类型 | 5x20 | 匹配码 | FUH5X20BLOCKTHT |
| 照明类型 | No | 单元数量 | 1 |
| 关联项目 | 0853.0551 | 行业别名 | 31.8201 |
| 标准交期 | 6 weeks | 电路数 | 1 |
| 射频系列/标准 | 0031 | 附带电池数量 | :1 |
| 适用产品/相关产品 | 5mm x 20mm | ||
环境参数
| 防护等级 | NoY/N | 工作温度 | - 40 C to + 85 C |
| 结工作温度 | 85C | ||
文档与媒体
相关型号
0853.0551
schurter
Fuse Cover 10A 500VDC Holder Plastic Bag Fuse Holders Accessories COVER OGN mAX 1.6 0853.0551 TRANS COVER COVER FUSEBLK TRANSP PCB 5X20MM Cover for OGN fuse holders COVER, FOR OGN FUSEHOLDERS TransparentCover;Fuseholder Cover; OGN series, OGN-SMD series Covering hood ø 5 x 20 mm OGN, 0853.0551, Schurter Schurter OGN 系列 PCB 固定熔断器座盖, 使用于5 x 20mm熔断器, IP00 Fuse Holder Accessories COVER OGN mAX 1.6
0853.0576
schurter
Fuse Cover 10A 500VDC Holder Plastic Bag Fuse Holders Accessories OGN-SMD Locking Cover 0853.0576 Cover with Clamp COVER REFLOW W/CLAMP PCB 5X20MM OGNCOVER Fuse Holder Accessories OGN-SMD Locking Cover
0853.0571
schurter
Fuse Cover 10A 500VDC Holder Plastic Bag Fuse Holders Accessories SMD Cover Reflow OGN ABDECKHAUBE COVER FUSEBLK REFLOW PCB 5X20MM FUSE HOLDER COVER Fuseholders;OGN-SMDCOVER Covering hood ø 5 x 20 mm OGN, 0853.0571, Schurter Fuse Holder Accessories SMD Cover Reflow

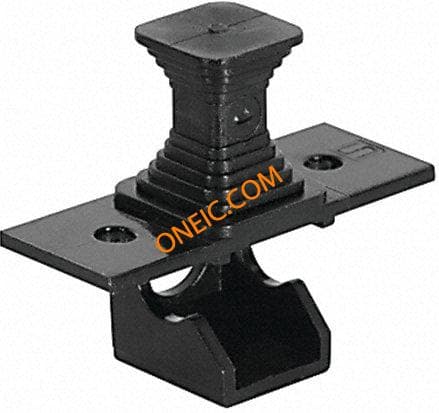

0853.1201
Schurter Inc
FUSE CARRIER OGN 5X20MM OGN-SMD Carriage black Fuse Holders Accessories OGN-SMD Carriage 151 Fuse Carriage FUSE CARRIAGE, 5X20MM, BLACK FuseCarriage;5X20MM;OGN-SMD;ThermoplasticBlack Cover; OGN series, OGN-SMD series Fuse carriage with handle ø 5 x 20 mm OGN, 0853.1201, Schurter Schurter 10A PCB 固定熔断器座 , 适用于管式熔断器, 250 V 交流 Fuse Holder Accessories OGN-SMD Carriage 151 Carriage black for OGN,OGN-SMD

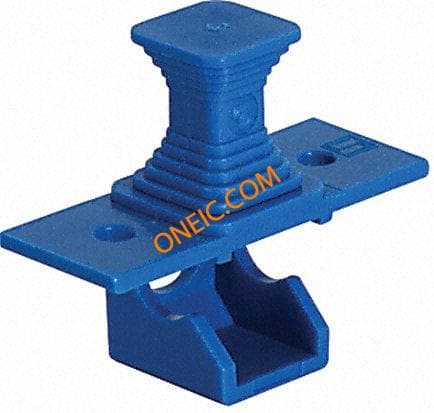

0853.1203
