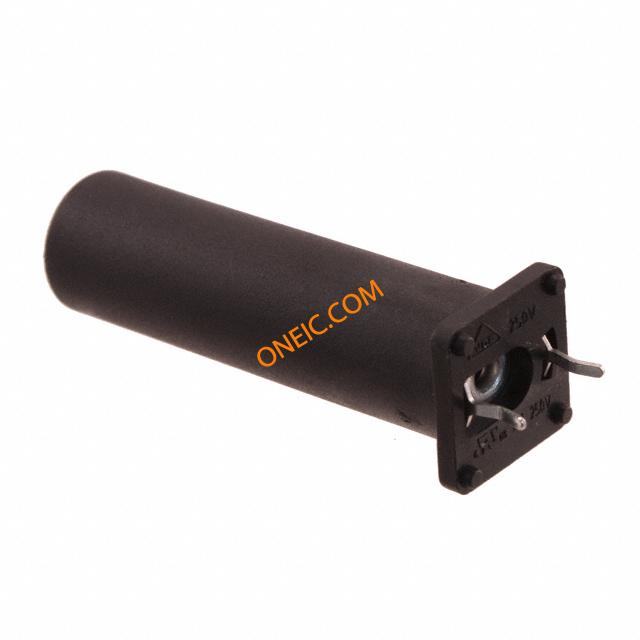

0031.3804
| 制造商 | |
| 描述 | Fuse Holder 16A 400VAC Pin Through Hole Bulk Fuse Holders SOCKET FAC 5X20 & FAC Socket 5x20/6.3x32 kicked FUSE HLDR CARTRIDGE 400V 16A PCB FUSEHOLDER, VERTICAL PCB MOUNT FACSOCKET5X20/6.3X32 Fuse holder FAC ø 5 x 20/6.3 x 32 mm, 0031.3804, Schurter Fuse Holder SOCKET FAC 5X20 & |
| 分类 |
商业参数
| 最小起订量 | 100 | 产品 | Fuse Holders |
| 交货时间 | 20 Days | 单位包装 | 100 |
| 子类别 | Fuse Accessories | 产品类别 | Fuse Holders |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 标准 | CSAC22.2no.39/IEC60127-6/UL4248-1/UL512 | 海关税号 | 85361010 |
| 汽车级 | NO | 无铅定义 | RoHS-conform |
| 认证机构 | VDE/UR | ||
电气参数
| 电压 | 400V | 电容 | extraY/N |
| 额定电压 | 250 V | 极数 | 1 |
| 最大额定电流 | 10 A | 每极负载侧连接方式 | :Kicked Terminal |
机械参数
| 颜色 | Black | 深度 | :47.5mm |
| 间距 | 10mm | 宽度 | 14.9mm |
| 高度 | 14.9mm | 长度 | 47.5mm |
| 重量 | 0.236336 oz | 包装方式 | Bulk |
| 方向 | Vertical | 端接方式 | THT |
| 轴细节 | Bayonet Knob Release | 安装类型 | Through Hole |
| 端子类型 | :Solder | 接触镀层 | Tin |
| 安装样式 | Through Hole, Vertical | 保险丝座类型 | Holder |
| 本体材料 | Thermoplastic | 锥体材料 | Cu |
| 触头材料 | Copper Alloy | 刀片材料 | CopperAlloy,Tin-Plated |
| 端接样式 | PC Pin | 接线端子类型 | KickedTerminal |
产品信息
| 类型 | Fuse Holder | 系列 | FAC |
| 保险丝尺寸 | 5mm x 20mm, 1/4" Dia x 1-1/4" L (6.35mm x 31.8mm) | 保险丝类型 | 5x20/6x32 |
| 匹配码 | FUHSOCKETSAFETHTVER | 照明类型 | No |
| 制造商全称 | FACSeries | 标准交期 | 8 weeks |
| 电路数 | 1 | 射频系列/标准 | 0031 |
| 附带电池数量 | :1 | 适用产品/相关产品 | 5mm x 20mm, 3AG |
环境参数
| 防护等级 | YesY/N | 工作温度 | - 40 C to + 85 C |
