点击放大查看

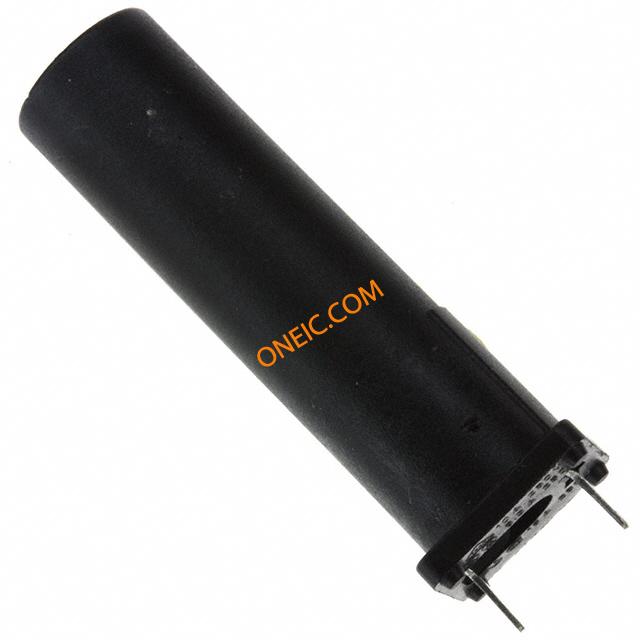

0031.3803
| 制造商 | |
| 描述 | Fuse Holder 16A 400VAC Pin Through Hole Bulk Fuse Holders SOCKET FAC 5X20 & FAC Holder 5x20/6.3x32 straight FUSE HLDR CARTRIDGE 400V 16A PCB FACSOCKET5X20/6.3X32 Fuse holder FAC ø 5 x 20/6.3 x 32 mm, 0031.3803, Schurter Fuse Holder SOCKET FAC 5X20 & |
| 分类 |
商业参数
| 最小起订量 | 1 | 产品 | Fuse Holders |
| 交货时间 | 49 Days | 单位包装 | 100 |
| 子类别 | Fuse Accessories | 产品类别 | Fuse Holders |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 标准 | CSAC22.2no.39/IEC60127-6/UL4248-1/UL512 |
| 汽车级 | NO | 无铅定义 | RoHS-conform |
| 认证机构 | VDE/UR | ||
电气参数
| 电压 | 400V | 电容 | includedY/N |
| 额定电压 | 400 V | 极数 | 1 |
| 最大额定电流 | 16 A | ||
机械参数

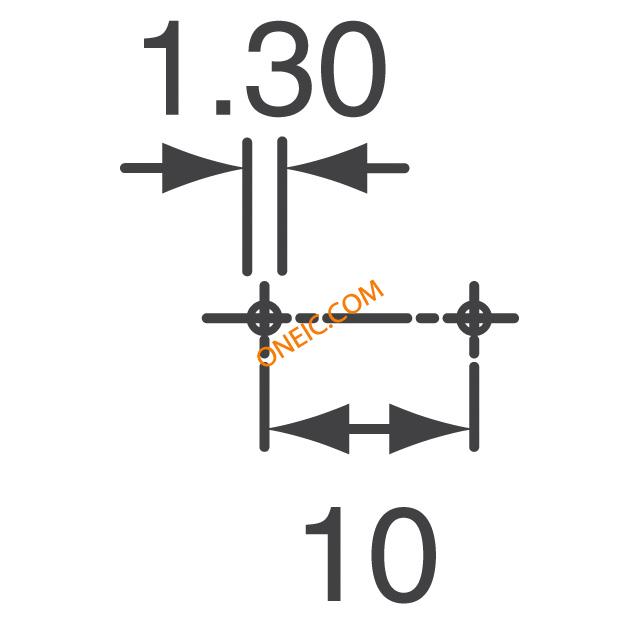

| 颜色 | Black | 间距 | 10mm |
| 宽度 | 14.9mm | 高度 | 14.9mm |
| 长度 | 47.5mm | 重量 | 0.236336 oz |
| 包装方式 | Bulk | 方向 | Vertical |
| 端接方式 | THT | 轴细节 | Screwdriver Release |
| 安装类型 | Through Hole | 接触镀层 | Tin |
| 安装样式 | Through Hole, Vertical | 保险丝座类型 | Holder |
| 本体材料 | Thermoplastic | 锥体材料 | Cu |
| 触头材料 | Copper Alloy | 刀片材料 | CopperAlloy,Tin-Plated |
| 端接样式 | PC Pin | 接线端子类型 | StraightTerminal |
产品信息
| 类型 | Fuse Holder | 系列 | FAC |
| 保险丝尺寸 | 5mm x 20mm, 1/4" Dia x 1-1/4" L (6.35mm x 31.8mm) | 保险丝类型 | 5x20/6x32 |
| 匹配码 | FUHSOCKETSAFETHTVER | 照明类型 | No |
| 制造商全称 | FACSeries | 标准交期 | 6 weeks |
| 电路数 | 1 | 射频系列/标准 | 0031 |
| 适用产品/相关产品 | 5mm x 20mm, 3AG | ||
环境参数
| 防护等级 | YesY/N | 工作温度 | - 40 C to + 85 C |
