点击放大查看

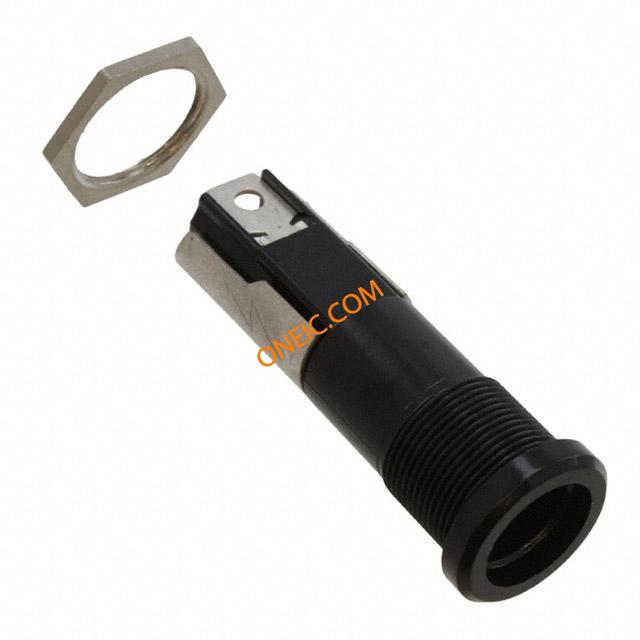

0031.2307
| 制造商 | |
| 描述 | Fuse Holder 30A 500VAC Lug Panel Mount Bulk Fuse Holders SOCKET FUL 5X20 & FUL SOCKEL 5X20/6.3X32 IP 40 FUSE HLDR CART 600V 30A PNL MNT FULSOCKET6.3X32IP40 Fuse holder; tube fuses; 5x20mm,6,3x32mm; 16A; Mounting: on panel Fuse Holder SOCKET FUL 5X20 & FUL Holder IP40 Solderlug 500V |
| 分类 |
商业参数
| 最小起订量 | 100 | 产品 | Fuse Holders |
| 交货时间 | 42 Days | 单位包装 | 25 |
| 子类别 | Fuse Accessories | 产品类别 | Fuse Holders |
| 标准包装数量 | Bulk | 工厂包装数量 | 25 |
合规参数
| RoHS | RoHS Compliant | 标准 | CSAC22.2no.39/IEC60127-6/UL4248-1/UL512 |
| 汽车级 | NO | 无铅定义 | RoHS-conform |
| 认证机构 | VDE/UR | 材料阻燃等级 | UL94V-0 |
电气参数
| 电压 | 600V | 电容 | extra Y/N |
| 额定电压 | 250 V | 极数 | 1 |
| 接触电阻 | 3.5mΩ | 最大额定电流 | 16 A |
机械参数
| 颜色 | Black | 长度 | 62.9 mm |
| 重量 | 0.740753 oz | 直径 | 22 mm |
| 包装方式 | Bulk | 引脚样式 | for soldering |
| 端接方式 | SOLDERLUG | 基体材料 | thermoset |
| 安装类型 | Panel Mount | 接触镀层 | Tin |
| 安装样式 | Panel | 保险丝座类型 | Holder |
| 本体材料 | Thermoplastic | 锥体材料 | Cu |
| 面板厚度 | max 10mm | 触头材料 | Copper Alloy |
| 包装数量 | 25 | 端接样式 | Solder Lug |
| 连接器颜色 | black | 接线端子类型 | Solder |
| 安装孔直径 | Ø19mm | 触点材料 - 镀层 | tinned |
产品信息
| SPG | 25 | 类型 | Fuse Holder |
| 系列 | FUL | 保险丝尺寸 | 5mm x 20mm, 1/4" Dia x 1-1/4" L (6.35mm x 31.8mm) |
| 保险丝类型 | Cartridge | 照明类型 | No |
| 制造商全称 | FULSeries | 单元数量 | 1 |
| 电路数 | 1 | 射频系列/标准 | 0031 |
| 适用产品/相关产品 | 5mm x 20mm, 3AG | ||
环境参数
| 防护等级 | IP40 | 工作温度 | - 40 C to + 85 C |
