点击放大查看

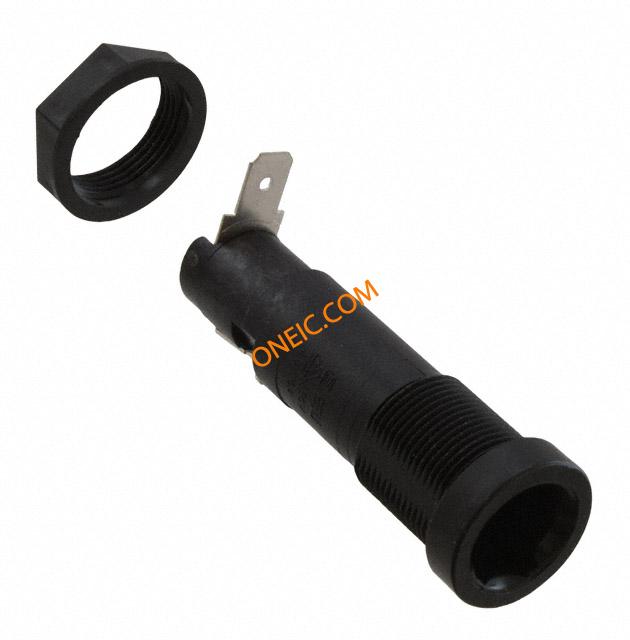

0031.1693
| 制造商 | |
| 描述 | Fuse Holder 20A 250VAC Quick Connect Panel Mount Bulk Fuse Holders SOCKET FEU 5X20 & FEU SOCKEL 5X20/6.3X32 IP 40 FUSE HLDR CART 250V 20A PNL MNT FUSE HOLDER, 20X5MM FEU SOCKET 5X20/6.3X32 IP 40 FEUSOCKET5X20/6.3X32IP40 Fuse holder FEU ø 5 x 20/6.3 x 32 mm, 0031.1693, Schurter Fuse Holder SOCKET FEU 5X20 & FEU Holder IP40 Quickcon no cap |
| 分类 |
商业参数
| 最小起订量 | 100 | 产品 | Fuse Holders |
| 交货时间 | 42 Days | 单位包装 | 100 |
| 子类别 | Fuse Accessories | 产品类别 | Fuse Holders |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 标准 | CSAC22.2no.39/IEC60127-6/UL4248-1/UL512 | 海关税号 | 85369010 |
电气参数
| 电压 | 250V | 额定电压 | 250 V |
| 极数 | 1 | 额定交流电压 | :250V |
| 最大额定电流 | 10 A | 每极负载侧连接方式 | :Quick Connect |
机械参数
| 颜色 | Black | 深度 | Not Required mm |
| 高度 | Not Required mm | 重量 | 0.186952 oz |
| 包装方式 | Bulk | 安装类型 | Panel Mount |
| 端子类型 | :Quick Connect | 接触镀层 | Tin |
| 安装样式 | Panel | 保险丝座类型 | Holder |
| 本体材料 | Thermoplastic | 触头材料 | Copper Alloy |
| 总长度 | 46.5 mm | 刀片材料 | CopperAlloy,Tin-Plated |
| 端接样式 | Quick Connect - 0.187" (4.7mm) | 接线端子类型 | QuickConnect |
产品信息
| 类型 | Fuse Holder | 系列 | FEU |
| 保险丝尺寸 | 5mm x 20mm, 1/4" Dia x 1-1/4" L (6.35mm x 31.8mm) | 保险丝类型 | Cartridge |
| 照明类型 | No | 制造商全称 | FEUSeries |
| 电路数 | 1 | 射频系列/标准 | 0031 |
| 附带电池数量 | :1 | 适用产品/相关产品 | 5mm x 20mm, 3AG |
环境参数
| 工作温度 | - 40 C to + 85 C | 结工作温度 | 85C |
文档与媒体
