点击放大查看

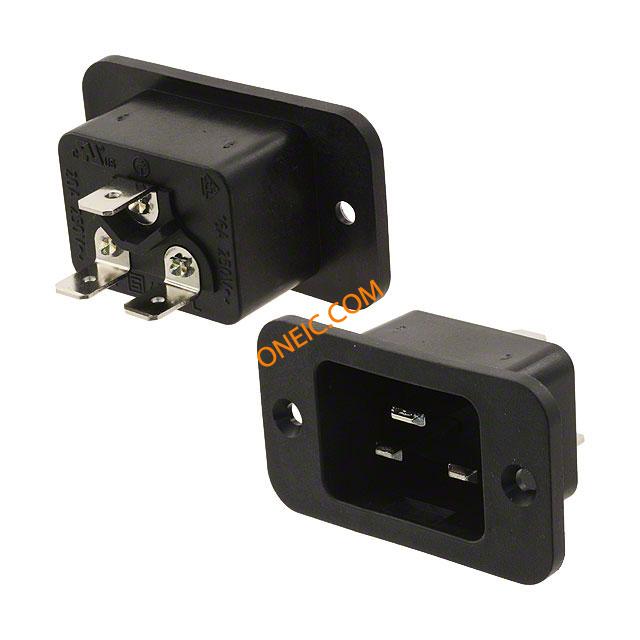

4798.9000.21

制造商	Schurter Holding AG
描述	V-LOCK APPLIANCE INLET 16A 4798 G-STECKER 16A 70°C V-LOCK APPLIANCE INLET 16A 250V Conn Inlets PL 3 POS Faston ST Panel Mount 3 Terminal 1 Port ApplianceInlet;C20;V-Lock;Screw-On;20A;250VAC;60Hz;6.3x0.8mm Connector: IEC 60320,AC mains; C20 (I), V-lock; socket; male; 16A Schurter C20 螺钉安装直向插头 IEC 连接器, 快速连接端接, 额定16 (IEC) A, 20 (CSA) A, 20 (UL) A, 250 V 交流
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

最小起订量	100	单位包装	100
标准包装数量	100

合规参数

RoHS	Lead free / RoHS Compliant	标准	SEV,VDE,VDE,SEMKO,UL,CSAApprovals
认证机构	cULus,UL,CSA	材料阻燃等级	UL94V-0

电气参数

电流	16A	电压	250V
额定电压	250VAC	极数	3
介电强度	2kV@50Hz	最大额定电流	20A
绝缘电阻	>10Megohms@500VDC

机械参数

颜色	Black	重量	0.03 kg
出线方向	是	方向	直
端接方式	QuickConnect	触头类型	Pin
安装类型	Panel Mount, Screw Hole	连接器类型	Receptacle, Male Pins
安装样式	Screw-On	连接器样式	IEC 320-C20
保险丝座类型	Drawer Not Required	本体材料	Thermoplastic
壳体材料	Thermoplastic	包装数量	100
主要材料	Screw-On	端接排数	快速连接
连接器 - 电缆	socket	端接样式	Quick Connect - 0.250" (6.3mm)
触点数	3	位数	3
连接器/触点类型	C20

产品信息

SPG	100	类型	Inlet
产品特性	PanelMounted	开关类型	3 极
单元数量	1

环境参数

防护等级

IP40
