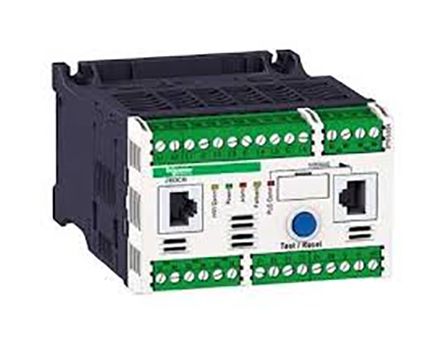

LTMEV40FM

制造商	Schneider Electric SE
描述	EXPANSION MODULE 115 230VAC 施耐德(SCHNEIDER) 扩展模块 Schneider Electric component LTMEV40FM: extension module LTM E TeSys T - 100..240 V AC Schneider Electric TeSys T 系列扩展模块 , 100 → 240 V 交流, 3.1 → 7.5 mA
分类	集成电路电源管理ICDrMOS电源模块

对参数有疑问？问 AI 助手

合规参数

标准

CSA 22-2 No 14EN 60947-4-1IACS E10IEC 60947-4-1UL 508

认证

ABSATEXBVCCCCSAC-TickDNVGLGOSTKERILROS (Lloyds register of shipping)NOMRINARMRoSUL

输出类型	Logic input: 0...40 V and <= 15 A for 25 ms (at state 0)Logic input: 79...264 V and >= 2 A for 25 ms (at state 1)	额定电压	690 V, category III (degree of pollution: 3) CSA C22-2 No 14 certified conforming to EN/IEC 60947-1
输入数量	4	供电电压	Via the controller
输入偏置电流	3.1 mA at 100 V7.5 mA at 240 V	最大额定电流	3.1 → 7.5 mA
最大功耗	1 kV (serial mode) for control circuit conforming to EN/IEC 61000-4-52 kV (common mode) for communication conforming to EN/IEC 61000-4-52 kV (common mode) for control circuit conforming to EN/IEC 61000-4-52 kV (serial mode) for voltage inputs conforming to EN/IEC 61000-4-54 kV (common mode) for voltage inputs conforming to EN/IEC 61000-4-5	短路电流	100 kA conforming to EN/IEC 60947-4-1
击穿电压（V(BR)GSS）	4 kV for supply, inputs and outputs conforming to EN/IEC 60947-4-16 kV for current or voltage measurement circuit conforming to EN/IEC 60947-4-1	阻抗 - 不平衡/平衡	10 V/m, level 3 conforming to EN/IEC 61000-4-3
滑臂电阻（欧姆）（典型）	6 kV, level 3 (on contact) conforming to EN/IEC 61000-4-28 kV, level 3 (in open air) conforming to EN/IEC 61000-4-2	ESR（等效串联电阻）	2 kV, level 3 (other circuits) conforming to EN/IEC 61000-4-44 kV, level 4 (on supply and relay outputs) conforming to EN/IEC 61000-4-4
集电极-发射极击穿电压（最大）	100 → 240 V 交流

深度	120.7 mm	宽度	45 mm
高度	61 mm	重量	0.21 kg
第一连接器	Connector, 1 flexible cable with cable end 0.25...2.5 mm ² /AWG 24...14 for control circuitConnector, 1 flexible cable without cable end 0.2...2.5 mm ² /AWG 24...14 for control circuitConnector, 1 flexible cable without cable end 0.25...2.5 mm ² /AWG 24...14 for control circuitConnector, 1 solid cable without cable end 0.2...2.5 mm ² /AWG 24...14 for control circuitConnector, 2 flexible cable with cable end 0.2...1 mm ² /AWG 24...14 for control circuitConnector, 2 flexible cable without cable end 0.2...1.5 mm ² /AWG 24...14 for control circuitConnector, 2 flexible cable without cable end 0.5...1.5 mm ² /AWG 24...14 for control circuitConnector, 2 solid cable without cable end 0.2...1 mm ² /AWG 24...14 for control circuit	安装类型	DIN 导轨
连接器间距	5.08 mm	绝缘直径	10 V, level 3 conforming to EN/IEC 61000-4-6
最大瞬时扭矩（oz-in / mNm）	0.5...0.6 N.m, 3 mm flat screwdriver for control circuit

类型	扩展模块	系列	TeSys T
产品子类型	Extension module	测量范围	TeSys T
设备简称	LTME	其他规格	650 °C conforming to EN/IEC 60695-2-12960 °C conforming to UL 94

抗冲击能力	15 gn (half sine wave, 11 ms) conforming to EN/IEC 60068-2-27	防护处理	12 x 24 hour cycles conforming to EN/IEC 60068-2-3048 h conforming to EN/IEC 60070-2-11TH conforming to EN/IEC 60068
抗振性	1 gn (f = 5...300 Hz) mounted on symmetrical rail conforming to EN/IEC 60068-2-64 gn (f = 5...300 Hz) plate mounted conforming to EN/IEC 60068-2-6	工作温度	-20...60 °C (operation)-40...80 °C (storage)
