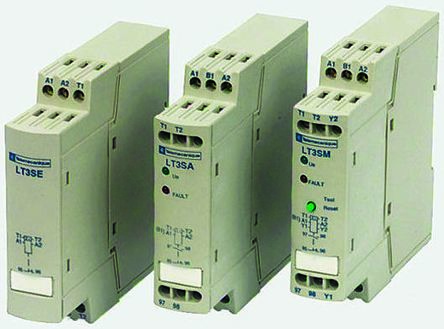

LT3SM00E

制造商	Schneider Electric SE
描述	施耐德(SCHNEIDER) 接触器附件 Schneider Electric component LT3SM00E: PTC probe relay TeSys - LT3 with manual reset - 24 V - 1 NO + 1 NC Schneider Electric TeSys LT3 LT3S 系列过载继电器 , 100 VA, 24 → 48 V 交流
分类	工业电源组件和继电器功率继电器，2安培以上接触器和启动器

对参数有疑问？问 AI 助手

商业参数

交货时间

14 Days

子类别

Electromechanical Relay

标准	IEC 34-11-2VDE 0660	合规性	Immunity to microbreaks and voltage drops conforming to IEC 61000-4-11Resistance to electrostatic discharge - test level level 3 conforming to IEC 61000-4-2Resistance to fast transient - test level level 3 conforming to IEC 61000-4-4Surge resistance 1.2/50-8/20 - test level level 4 conforming to IEC 61000-4-5Susceptibility to electromagnetic fields - test level level 3 conforming to IEC 61000-4-3
认证	LROS (Lloyds register of shipping)

复位	Manual	电阻	1500...1650 Ohm reset2700...3100 Ohm tripping
UL电压	250 V AC 50/60 Hz for output control relay	额定功率	100 VA
额定电压	500 V AC output control relay	极数	<= 6
供电电压	0.85...1.1 Uc	绝缘电阻	< 20 Ohm
最小供电电压	2 A at 24 V DC DC-133 A at 250 V AC AC-166 A at 120 V AC AC-16	触点额定值 @ 电压	250 V 交流
空载功耗	< 2.5 VA	击穿电压（V(BR)GSS）	2.5 kV
集电极-发射极击穿电压（最大）	24 至 48 V 交流

深度	100 mm	宽度	22.5 mm
高度	100 mm	长度	100mm
重量	0.22 kg	第一连接器	Power circuit: cage type connector 1 cable 0.75...2.5 mm ² - cable stiffness: flexible - with cable endPower circuit: cage type connector 1 cable 0.75...2.5 mm ² - cable stiffness: solid - with cable endPower circuit: cage type connector 1 cable 1...2.5 mm ² - cable stiffness: flexible - without cable endPower circuit: cage type connector 1 cable 1...2.5 mm ² - cable stiffness: solid - without cable endPower circuit: cage type connector 2 cable 0.75...2.5 mm ² - cable stiffness: flexible - with cable endPower circuit: cage type connector 2 cable 0.75...2.5 mm ² - cable stiffness: solid - with cable endPower circuit: cage type connector 2 cable 1...2.5 mm ² - cable stiffness: flexible - without cable endPower circuit: cage type connector 2 cable 1...2.5 mm ² - cable stiffness: solid - without cable end
连接器类型	笼式弹簧夹	触头材料	1 NC + 1 NO single voltage
尺寸/外形	100 x 22.5 x 100 mm	触点数	2
最大瞬时扭矩（oz-in / mNm）	0.8 N.m

系列	LT3S	功能	Fault indicationVoltage indication
产品子类型	Thermistor protection units	控制方式	Manual resetManual test
测量范围	LT3	可充电	Label mark A conforming to IEC 60034-11
行业别名	785901699002	设备简称	LT3SE
常态配置	常开/常闭

测试条件	Connection of probes 1000 m for >= 2.5 mm ²Connection of probes 500 m for >= 1.5 mm ²	工作寿命	100 VA at 220 V - electrical durability: 500000 cycles
抗冲击能力	5 gn 11 ms conforming to IEC 60068-2-27	存储接口	-40...85 °C conforming to IEC 60068-2-1-40...85 °C conforming to IEC 60068-2-2
防护等级	IP20 conforming to VDE 0106IP20 conforming to IEC 60529	工作压力	<= 1500 m without derating in temperature> 1500...3000 m with derating in temperature
抗振性	1 gn 25...150 Hz conforming to IEC 60068-2-62.5 gn 2...25 Hz conforming to IEC 60068-2-6	工作温度	-25...60 °C
热电流 (Ith)	5 A for output control relay
