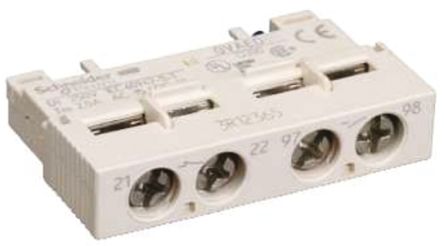

点击放大查看
GVAED101
| 制造商 | |
| 描述 | Industrial Relays MAN-START 575V AC AUX CONTACT Schneider Electric component GVAED101: TeSys GV3 - auxiliary contact block - 2 NO Schneider Electric GVAE 系列 前面安装 辅助触点 , 2 常开 Circuit Breakers MAN-START 575V AC AUX CONTACT |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 交货时间 | 14 Days | 子类别 | Circuit Protection Misc |
合规参数
| 防护类型 | GB2CB... circuit breaker rating according to operational current for Ue <= 415 VGG fuse <= 10 A | ||
电气参数
| UL电压 | 24...240 V AC24...60 V DC | 额定功率 | 300 VA at 48 V AC-15 - electrical durability: 100000 cycles400 VA at 690 V AC-15 - electrical durability: 100000 cycles500 VA at 110...127 V AC-15 - electrical durability: 100000 cycles500 VA at 500 V AC-15 - electrical durability: 100000 cycles650 VA at 440 V AC-15 - electrical durability: 100000 cycles720 VA at 230...240 V AC-15 - electrical durability: 100000 cycles850 VA at 380...415 V AC-15 - electrical durability: 100000 cycles |
| 额定电压 | 600 V - conforming to CSA C22-2 No 14600 V - conforming to UL 508690 V - conforming to IEC 60947-1 | 开关电压 | 17 V |
| 开关电流 | 5 mA | 最大功率（瓦特） | 120 W at 240 V DC-13 - electrical durability: 100000 cycles140 W at 110 V DC-13 - electrical durability: 100000 cycles140 W at 24 V DC-13 - electrical durability: 100000 cycles180 W at 60 V DC-13 - electrical durability: 100000 cycles240 W at 48 V DC-13 - electrical durability: 100000 cycles |
机械参数
| 深度 | 66 mm | 宽度 | 9.3 mm |
| 高度 | 89 mm | 重量 | 0.05 kg |
| 第一连接器 | Screw clamp terminals 1 cable 1...2.5 mm ² - cable stiffness: solidScrew clamp terminals 2 cable 1...2.5 mm ² - cable stiffness: solidScrew clamp terminals 1 cable 0.75...2.5 mm ² - cable stiffness: flexible - without cable endScrew clamp terminals 2 cable 0.75...2.5 mm ² - cable stiffness: flexible - without cable endScrew clamp terminals 2 cable 0.75...1.5 mm ² - cable stiffness: flexible - with cable endScrew clamp terminals 1 cable 0.75...1.5 mm ² - cable stiffness: flexible - with cable end | 致动器类型 | DP |
| 安装类型 | Front side | 安装样式 | 正面安装 |
| 触头材料 | 2 NO | 触点数 | 2 |
| 最大瞬时扭矩（oz-in / mNm） | <= 1.4 N.m - on screw clamp terminals | ||
产品信息
| 系列 | GVAE | 功能 | Fault signal 1 NO |
| 制造商全称 | Schneider Electric | 产品子类型 | Auxiliary contact block |
| 兼容性 | GV3LGV3P | 测量范围 | TeSys GV3 |
| 行业别名 | 785901914303, GVAED101 | 设备简称 | GVAED |
| 常态配置 | 2 常开 | ||
环境参数
| 机械寿命 | 100000 cycles | 防护等级 | Normal environment |
| 热电流 (Ith) | 2.5 A | ||
