点击放大查看

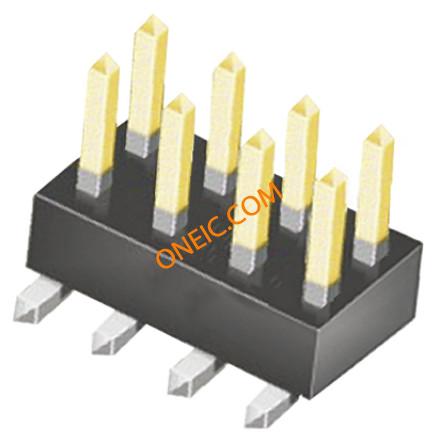

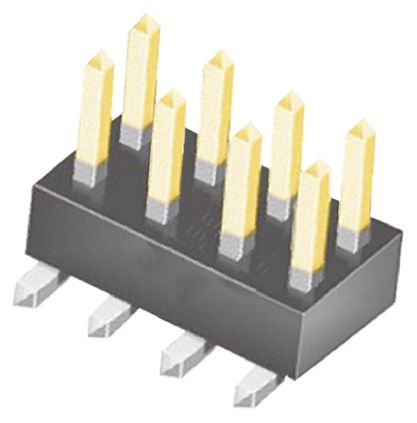

TSM-104-01-L-DV
| 制造商 | Samtec, Inc. |
| 描述 | Conn Unshrouded Header HDR 8 POS 2.54mm Solder ST SMD Tube CONN HEADER .1" 8POS DUAL SMD Samtec TSM Series 2.54mm Pitch 8 Way 2 Row Straight PCB Header, Solder Termination, 7A HEADER, 2.54MM, SMT, 2X4WAY Samtec TSM 系列 2.54mm节距 8路 (2排) 直 引脚管座, 焊接端接, 7A , 表面安装 |
| 分类 |
商业参数
| 其他名称 | Q6302603 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85369010 | ||
电气参数
| 额定电压 | 475 V ac | 最大额定电流 | 7A |
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 重量 | 0.0004 | 包装方式 | Tube |
| 排间距 | 0.100" (2.54mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Surface Mount |
| 连接器类型 | Header, Unshrouded | 接触镀层 | Gold Over Nickel |
| 排数 | 2 | 触头材料 | Phosphor Bronze |
| 触点数 | 8 | 接触件端接 | :Surface Mount Vertical |
| 位数 | 8 | 接触长度 - 配合 | 0.230" (5.84mm) |
| 接触镀层厚度 | 10µin (0.25µm) | ||
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 系列 | TSM | 加载位置数 | All |
