点击放大查看

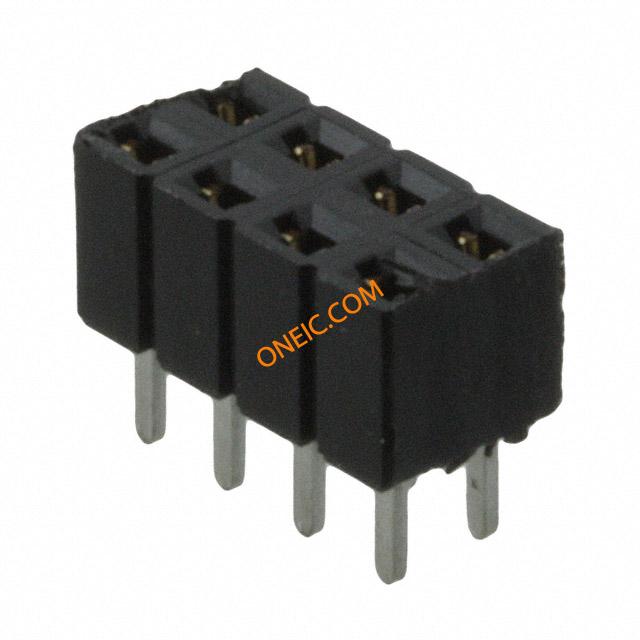

SLW-104-01-S-D
| 制造商 | Samtec, Inc. |
| 描述 | Conn Socket Strip SKT 8 POS 2.54mm Solder ST Thru-Hole CONN RCPT .100" 8POS DL 30GOLD SOCKET, 2.54MM, 2X4WAY |
| 分类 |
商业参数
| 其他名称 | SAM1090-04 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85369010 | ||
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 重量 | 0.0005 | 包装方式 | Bulk |
| 排间距 | 0.100" (2.54mm) | 端接方式 | Solder |
| 安装类型 | Through Hole | 连接器类型 | Receptacle |
| 接触镀层 | Gold Over Nickel | 排数 | 2 |
| 触头材料 | :Phosphor Bronze | 板面高度 | 0.180" (4.57mm) |
| 触点数 | 8 | 接触件端接 | :Through Hole Vertical |
| 位数 | 8 | 接触镀层厚度 | 30µin (0.76µm) |
| 堆叠高度（配合） | 0.240" (6.09mm) | ||
产品信息
| 类型 | Socket Strip | 连接器性别 | SKT |
| 系列 | :- | 加载位置数 | All |
文档与媒体
相关型号
MTSW-104-08-S-D-300
samtec inc.
Conn Unshrouded Header HDR 8 POS 2.54mm Solder ST Thru-Hole CONN HEADER 8POS .100" TH DUAL
TSW-104-17-S-D
samtec inc.
Conn Unshrouded Header HDR 8 POS 2.54mm Solder ST Thru-Hole CONN HEADER 8POS .100" DUAL GOLD

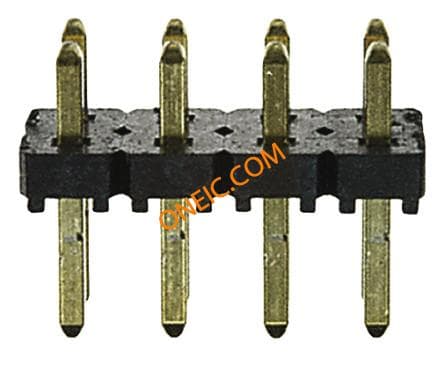

TLW-104-05-G-D
