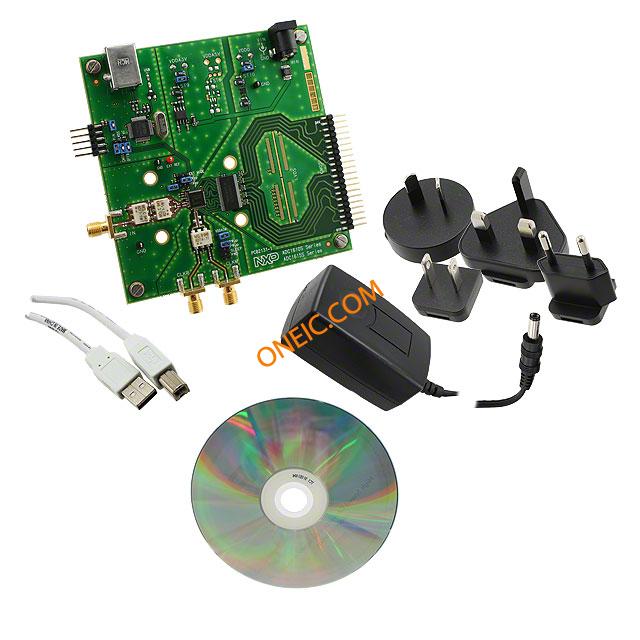

ADC1610S125F1-DB

制造商	Renesas Electronics Corporation
描述	BOARD BOARD DEMO FOR ADC1610S12F1 Data Conversion IC Development Tools BOARD DEMO FOR ADC1610S125F1
分类	嵌入式系统与开发工具嵌入式开发工具评估与开发套件

对参数有疑问？问 AI 助手

商业参数

标准包装数量

合规参数

RoHS

RoHS Compliant

电气参数

输入范围	1 ~ 2 Vpp	数据接口	LVCMOS
位数	16	ADC/DAC 数量	1
典型功耗（条件）	630mW @ 125MSPS	采样率（每秒）	125M

产品信息

内容	Board, Cable, Power Supply, Software	使用的IC/零件	ADC1610S125
A/D转换器数量	1

环境参数

工作温度

-40°C ~ 85°C

文档与媒体

PDF 文档

ADC1610S Series
