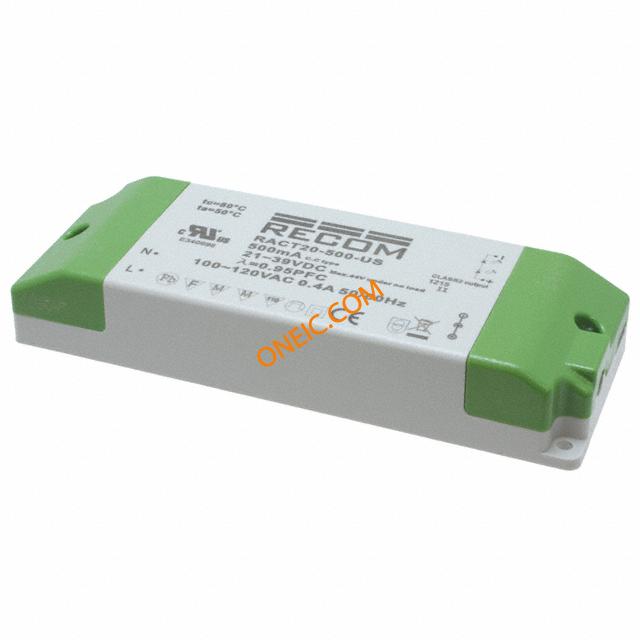

RACT20-500-US
| 制造商 | RECOM Power GmbH |
| 描述 | LED SUPP CC AC/DC 21-39V 0.5A LED SUPPLY CC AC/DC 21-39V 500MA LED Power Supplies 20W AC/DC-LED Power LIGHTLINE LEDDr MODULE 115V 500mA 12W |
| 分类 |
商业参数
| 产品 | Switching Supplies | 商标名 | Lightline |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 汽车级 | NO |
| 无铅定义 | RoHS-conform | 认证机构 | CE, cULus |
电气参数
| 噪声 | 4 mV[pp] | 调光方式 | Triac |
| 隔离 | 3.75 kv[AC] | 效率 | 82% |
| 输出功率 | 20 W | 功率（瓦） | 20W |
| 额定功率 | 20 W | 工作模式 | Constant Current (CC) |
| 额定电压 | 115 V | 输出电流 | 500mA |
| 输出数量 | 1 | 隔离电压 | 3.75kV (3750V) |
| 最小输入电压 | 21 ~ 39 V | 功率因数校正 | YES YES/NO |
| 输入偏置电流（最大） | 200 mA | 输出电流/通道 | 500 mA |
机械参数
| 重量 | 0.32 lb (145.15g) | 包装方式 | BOX |
| 安装类型 | Chassis Mount | 安装样式 | Chassis |
| 面板安装类型 | Enclosed | 尺寸/外形 | 5.41" L x 1.98" W x 0.91" H (137.5mm x 50.2mm x 23.0mm) |
| 端接样式 | 5.5mm Socket, Screw Terminal | ||
产品信息
| 类型 | Constant Current | 系列 | RACT20 |
| 产品特性 | OTP, SCP | 拓扑 | AC DC Converter |
| 保修 | 5 Years | 应用领域 | Commercial |
环境参数
| 额定等级 | IP20 | 密封等级 | 20 |
| 工作温度 | -30°C ~ 50°C | ||
