点击放大查看

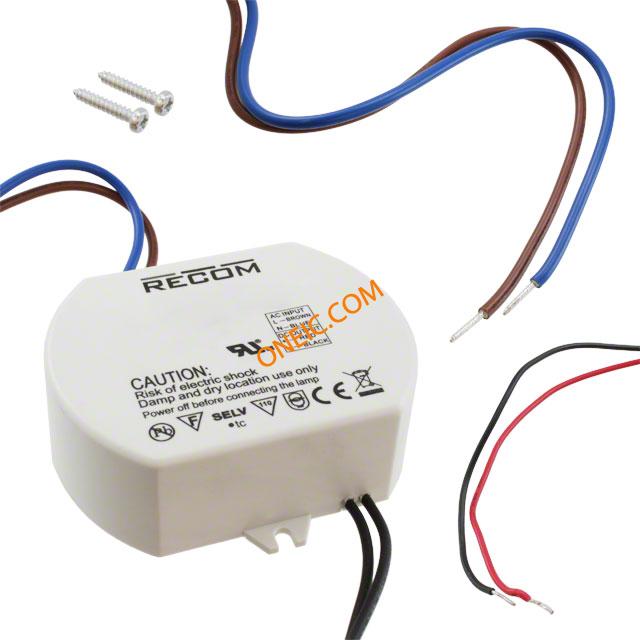

RACD20-500/277

制造商	RECOM Power GmbH
描述	LED SUPPLY CC AC/DC 20-40V 0.5A LED SUPPLY CC AC/DC 20-40V 500MA LED Driver,Constant Current,500mA,20W LED Drivers Power Supplies 20W 20-40V 500 mA ST LED DRIVER Recom LED 驱动器 , 20 → 40V, 0.5A, 20W
分类	集成电路电源管理ICLED照明驱动器

对参数有疑问？问 AI 助手

商业参数

产品	Switching Supplies	商标名	Lightline
标准包装数量	1

合规参数

RoHS

Compliant

认证机构

CE, cULus, EN

电气参数

操作方式	Constant Current	效率	80%
最大功率	20W	输出功率	20 W
功率（瓦）	20W	额定电压	90 → 264 V ac
输出电流	500mA	供电电压	20 ~ 40 V
输出数量	1	隔离电压	3.75kV (3750V)
最大额定电流	500mA	最小输入电压	20 ~ 40 V
直流输入电压（最大）	AC	直流输入电压（最小）	90VAC
输出电流/通道	500 mA

机械参数

尺寸	3.15" L x 2.91" W x 1.04" H (80.0mm x 74.0mm x 26.5mm)	重量	0.43 lb (195.04g)
安装类型	Chassis Mount	安装样式	Chassis
面板安装类型	Enclosed	尺寸/外形	3.15" L x 2.91" W x 1.04" H (80.0mm x 74.0mm x 26.5mm)
端接样式	Wire Leads

产品信息

类型	Constant Current	系列	RACD20
产品特性	OCP	拓扑	AC DC Converter
应用细节	LED Lighting

环境参数

额定等级	IP66	防护等级	IP20
工作温度	-20°C ~ 50°C

文档与媒体

PDF 文档

RACD20/277

PDF 文档

RACD20.pdf
