点击放大查看
RACD12-500
| 制造商 | RECOM Power GmbH |
| 描述 | LED Drivers Power Supplies 12W AC/DC LED PW SUP REG 90-264in 3-24out AC/DC-CONVERTER AC/DC CONVERTER 500mA 12W LED SUPPLY CC AC/DC 3-24V 500MA LED Power Supply,LED Driver,500mA,12W LED Power Supplies 12W AC/DC LED PW SUP REG 90-264in 3-24out POWER SUPPLY; AC; LED DRIVER; REMOTE; 12W; 3-24DC; INPUT 90-264VAC LED driver, RACD12-500, Recom Recom LED 驱动器 , 3 → 24V, 0.5A, 12W |
| 分类 |
商业参数
| 最小起订量 | 1 | 产品 | Switching Supplies |
| 商标名 | LIGHTLINE | 单位包装 | 1 |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 无铅定义 | RoHS-conform | 认证机构 | CE, cULus, SEMKO |
电气参数
| 输出端 | 24VDC@0.5A | 隔离 | 3kv[AC] |
| 操作方式 | Constant Current | 效率 | 78% |
| 最大功率 | 12W | 输出功率 | 12 W |
| 功率（瓦） | 12W | 额定功率 | 12W |
| 工作模式 | Constant Current (CC) | 额定输出功率 | 12 W |
| 额定电压 | 90 V to 264 V | 输出电流 | 500mA |
| 输出数量 | 1 | 隔离电压 | 3kV (3000V) |
| 最小输入电压 | 3 V to 24 V | 功率因数校正 | NOYES/NO |
| 直流输入电压（最大） | AC | 输入偏置电流（最大） | 200mA |
| 输出电流/通道 | 500 mA | ||
机械参数
| 宽度 | 45 | 重量 | 0.221 lb (100.24g) |
| 包装方式 | Bulk | 安装类型 | Screw |
| 安装样式 | Chassis | 总长度 | 123 |
| 主要材料 | AC-DC | 尺寸/外形 | 123 mm L x 45 mm W |
| 端接样式 | Wire Leads | 位数 | 4 |
| 外壳尺寸-插件 | 18.5 | ||
产品信息
| 类型 | ACDC | 系列 | RACD12 |
| 产品特性 | OCP, OTP, OVP, SCP | 拓扑 | AC DC Converter |
| 保修 | 5Years | 匹配码 | RACD12-500 |
| 应用领域 | Commercial | 制造商全称 | RACD12 Series |
| 配置 | Encapsulated | 标准交期 | 11 weeks |
| 印刷电路板数量 | 4 | ||
环境参数
| 额定等级 | IP20 | 密封等级 | 20 |
| 工作温度 | 25° | ||
文档与媒体
相关型号
BXRB-27E0360-A-00
OSRAM Opto Semiconductors GmbH
LED ARRAY WARM WHITE 2725K 370LM
BXRB-30E0360-A-00
OSRAM Opto Semiconductors GmbH
LED ARRAY WARM WHITE 3045K 400LM
BXRB-30G0360-A-00
OSRAM Opto Semiconductors GmbH
LED ARRAY WARM WHITE 3045K 360LM
BXRB-27G0360-A-00
OSRAM Opto Semiconductors GmbH
LED ARRAY WARM WHITE 2700K 330LM
GW5SMC60P0C
Sharp Microelectronics
LED ZENIGATA High Power LEDs - White 5W Petit Zenigata 6000K 410LM 82CRI
GW5SMC50P0C
Sharp Microelectronics
LED ZENIGATA High Power LEDs - White 5W Petit Zenigata 5000K 410LM 82CRI
GW5SMC40P0C
Sharp Microelectronics
LED ZENIGATA High Power LEDs - White 5W Petit Zenigata 4000K 400LM 82CRI
GW5SMC30P0C
Sharp Microelectronics
LED ZENIGATA High Power LEDs - White 5W Petit Zenigata 3000K 380LM 82CRI
GW5SMC27P0C
Sharp Microelectronics
LED ZENIGATA High Power LEDs - White 5W Petit Zenigata 2700K 350LM 82CRI
GW6BME50HED
Sharp Microelectronics
LED ZENIGATA High Power LEDs - White 7W Mini Zenigata 5000K 720LM 82CRI
GW6BME40HED
Sharp Microelectronics
LED ZENIGATA High Power LEDs - White 7W Mini Zenigata 4000K 700LM 82CRI
GW6BME30HED
Sharp Microelectronics
LED ZENIGATA High Power LEDs - White 7W Mini Zenigata 3000K 650LM 82CRI
GW6BME27HED
Sharp Microelectronics
LED ZENIGATA High Power LEDs - White 7W Mini Zenigata 2700K 620LM 82CRI

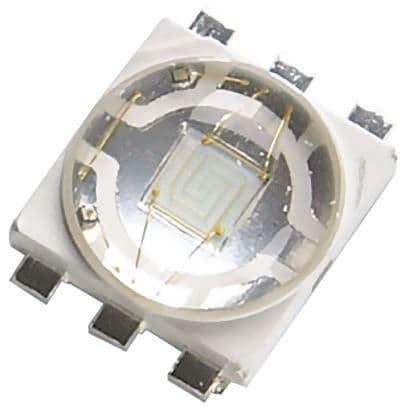

ASMT-JB11-NMP01
