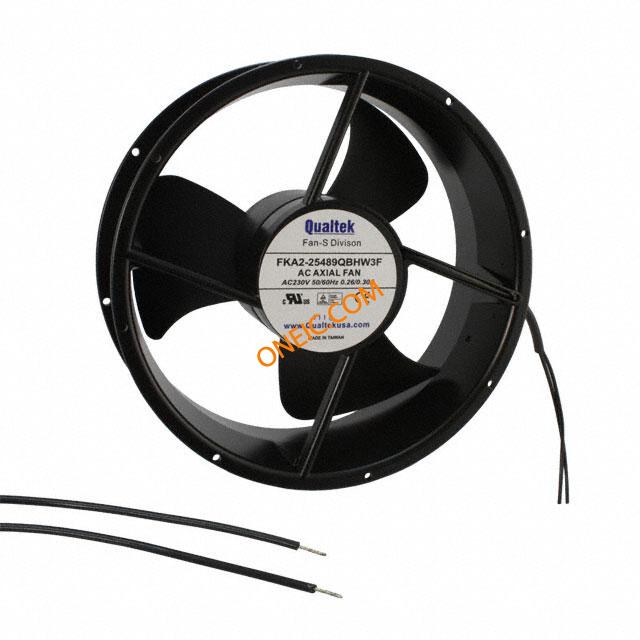

FKA2-25489QBHW3F

制造商	Qualtek Electronics Corp.
描述	FAN 254X89MM BALL 230VAC WIRE Fans AC FAN 254x89mm Ball 230VAC WIRE
分类	硬件与散热解决方案直流风扇鼓风机

对参数有疑问？问 AI 助手

商业参数

产品类别

Fans

标准包装数量

合规参数

RoHS

RoHS Compliant

电气参数

噪声	62 dB(A)	功率（瓦）	62.8W
额定电压	230VAC	最大额定电流	0.300A

机械参数

RPM	2000 RPM	重量	4.4 lbs (2kg)
风量	530.0 CFM (15.01m³/min)	风扇类型	Tubeaxial
端接方式	2 Wire Leads	轴承类型	Ball
静压	0.276 in H2O (68.7 Pa)	刀片材料	Plastic
框架材料	Aluminum	尺寸/外形	Round - 254mm Dia x 89mm W

产品信息

功能

环境参数

工作温度

14 ~ 158°F (-10 ~ 70°C)

文档与媒体

PDF 文档

FKA2-25489 Series

PDF 文档

FKA2-25489.pdf
