点击放大查看

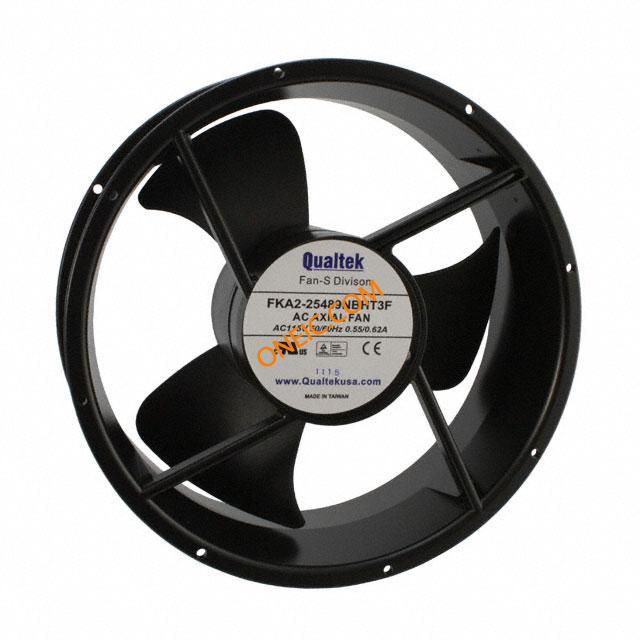

FKA2-25489NBHT3F

制造商	Qualtek Electronics Corp.
描述	FAN 254X89MM BALL 115VAC TERM Fans AC FAN 254x89mm Ball 115VAC TERM Fan;AC;115V;254x89mm;Round;680/630CFM;56/67.8W;66/62dBA;Terminals
分类	硬件与散热解决方案直流风扇鼓风机

对参数有疑问？问 AI 助手

商业参数

产品类别

Fans

标准包装数量

合规参数

RoHS

RoHS Compliant

电气参数

噪声	62 dB(A)	转速	2100/2200RPM
频率	50/60Hz	功率（瓦）	67.8W
额定功率	56/67.8W	额定电压	115VAC
最大额定电流	0.620A

机械参数

RPM	2000 RPM	尺寸	10x3.5(254x89)In.(mm)
重量	4.4 lbs (2kg)	风量	630.0 CFM (17.84m³/min)
风扇类型	Tubeaxial	材料（通用）	AluminumAlloy
旋转范围	CCW	端接方式	2 Terminals
轴承类型	Ball	静压	0.276 in H2O (68.7 Pa)
刀片材料	Plastic	框架材料	Aluminum
主要材料	Fans	尺寸/外形	Round - 254mm Dia x 89mm W
风扇附件类型	10x3.5(254x89)In.(mm)	总体尺寸	10x3.5In.

产品信息

类型	Round	功能	AC
方向	ExhaustoverStruts	开关类型	AC
制造商全称	FKA2-25489Series	配置	Round

环境参数

工作温度	14 ~ 158°F (-10 ~ 70°C)	自然散热热阻	680/630CFM
结工作温度	70°C

文档与媒体

PDF 文档

FKA2-25489 Series

PDF 文档

FKA2-25489.pdf
