FAD1-12038CBAW12

制造商	Qualtek Electronics Corp.
描述	FAN 120X38.5MM 12VDC BALL WIRE Fans DC FAN 120x38mm Ball 12VDC WIRE
分类	硬件与散热解决方案直流风扇鼓风机

对参数有疑问？问 AI 助手

商业参数

产品类别

Fans

标准包装数量

合规参数

RoHS

RoHS Compliant

电气参数

噪声	28.4 dB(A)	功率（瓦）	1.44W
额定电压	12VDC	最大额定电流	0.120A

机械参数

RPM	1500 RPM	重量	0.518 lb (234.96g)
风量	57.3 CFM (1.62m³/min)	风扇类型	Tubeaxial
端接方式	2 Wire Leads	轴承类型	Ball
静压	0.085 in H2O (21.2 Pa)	刀片材料	Plastic
框架材料	Plastic	尺寸/外形	Square - 120mm L x 120mm H x 38.5mm W

产品信息

功能

环境参数

工作温度

14 ~ 158°F (-10 ~ 70°C)

文档与媒体

PDF 文档

FAD1-12038 Series

PDF 文档

FAD1-12038-60360.pdf

相关型号

07145-24

Qualtek

AC Power Cords 24 FAN PWR CORD POWER CORD FAN 45DEG ANGLE 24" Power Cord; 24 in.; 45 deg; UL Recognized; CSA Certified; 300 V; 7 A Fan Cords & Accessories 24 FAN PWR CORD Cable Assembly Cord 0.609m 18AWG 2 POS Power RCP FAN POWER CORD PowerCord;24in.;45deg;ULRecognized,CSACertified;300V;7A Fan Accessories Fan Power Cords Cord Length (mm): 610 Cord Length (in.): 24 Style: 45 Cordage: SPT-1(18/2)

¥5.1830

详情

07199-36

Qualtek

AC Power Cords 36 FAN PWR CORD POWER CORD FAN T-TYPE 36" Power Cord; 36 in.; T-Type; UL Recognized; CSA Certified; 300 V; 7 A Fan Cords & Accessories 36 FAN PWR CORD Cable Assembly Cord 0.914m 18AWG 2 POS Power RCP PowerCord;36in.;T-Type;ULRecognized,CSACertified;300V;7A Fan Accessories Fan Power Cords Cord Length (mm): 915 Cord Length (in.): 36 Style: T-Type Cordage: SPT-1(18/2)

¥6.2023

详情

07145-SP072

Qualtek

AC Power Cords 72 45 DEGREE PLUG POWER CORD W/PLUG FAN 45DEG 72" Fan Cords & Accessories 72 45 DEGREE PLUG

¥12.0652

详情

07199-24

Qualtek

AC Power Cords 24 FAN PWR CORD POWER CORD FAN T-TYPE 24" Fan Cord; 24 in.; T-Type; UL Listed; CSA Certified; Blunt Cut; 300 V; 7 A Fan Cords & Accessories 24 FAN PWR CORD Cable Assembly Cord 0.609m 18AWG 2 POS Power RCP FAN POWER CORD FanCord;24in.;T-Type;ULListed,CSACertified;BluntCut;300V;7A Fan Accessories Fan Power Cords Cord Length (mm): 610 Cord Length (in.): 24 Style: T-Type Cordage: SPT-1(18/2)

¥5.2360

详情

07145-36

Qualtek

AC Power Cords 36 FAN PWR CORD POWER CORD FAN 45DEG ANGLE 36" Power Cord; 36 in.; 45 deg; UL Recognized; CSA Certified; 300 V; 7 A Fan Cords & Accessories 36 FAN PWR CORD Thrml Mgmt Access Fan Cord FAN POWER CORD PowerCord;36in.;45deg;ULRecognized,CSACertified;300V;7A Fan Accessories Fan Power Cords Cord Length (mm): 915 Cord Length (in.): 36 Style: 45 Cordage: SPT-1(18/2)

¥6.2023

详情

07100-SP036

Qualtek

AC Power Cords 36FAN PWR CORD POWER CORD W/PLUG STRAIGHT 36" Fan Cords & Accessories 36FAN PWR CORD

¥11.0160

详情

07100-24

Qualtek

AC Power Cords 24 FAN PWR CORD POWER CORD FAN STRAIGHT 24" Power Cord; Fan; 2; Straight; UL Listed; CSA Certified; 300 V; 7 A Fan Cords & Accessories 24 FAN PWR CORD Cable Assembly Cord 0.6m 2 POS Power PL FAN POWER CORD PowerCord,Fan;2;Straight;ULListed,CSACertified;300V;7A Fan Accessories Fan Power Cords Cord Length (mm): 610 Cord Length (in.): 24 Style: Straight Cordage: SPT-1(18/2)

¥5.1830

详情

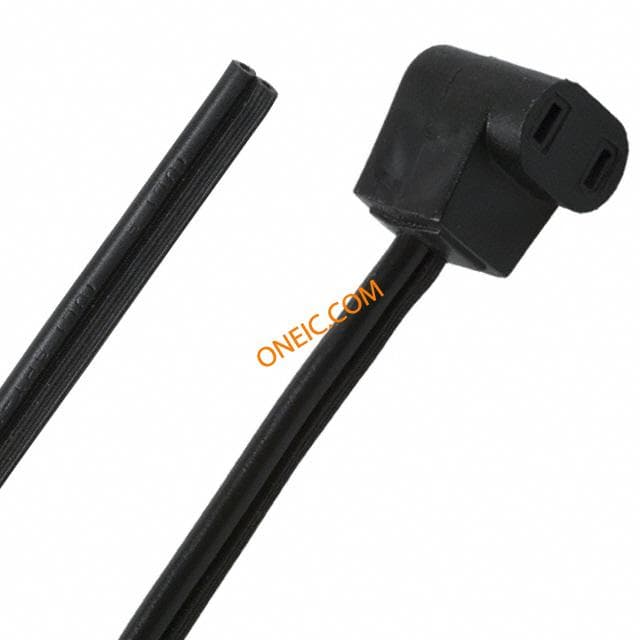

07190-12

Qualtek

AC Power Cords 12 FAN PWR CORD POWER CORD FAN RIGHT ANGLE 12" Power Cord; 12 in.; 90 deg; UL Recognized; CSA Certified; 300 V; 7 A Fan Cords & Accessories 12 FAN PWR CORD Cable Assembly Cord 0.305m 18AWG 2 POS Power RCP PowerCord;12in.;90deg;ULRecognized,CSACertified;300V;7A Fan Accessories Fan Power Cords Cord Length (mm): 305 Cord Length (in.): 12 Style: 90 Cordage: SPT-1(18/2)

¥4.0786

详情

07100-50

Qualtek

AC Power Cords 50 FAN PWR CORD POWER CORD FAN STRAIGHT 50" Fan Cords & Accessories 50 FAN PWR CORD Cable Assembly Cord 1.27m 18AWG 2 POS Power RCP Fan Accessories Fan Power Cords Cord Length (mm): 1270 Cord Length (in.): 50 Style: Straight Cordage: SPT-1(18/2)

¥7.7316

详情

06450-M

Qualtek

Fan Cords & Accessories ALUM FLTR MIL 4 1/2 FAN FILTER/SCREEN 120MM Filter; 06 Series; 4-1/2 in. Fan; Aluminum; 4.68 in. H x 0.175 in. W Fan Accessories ALUM FLTR MIL 4 1/2 Thrml Mgmt Access Fan Filter Screen 120mm Aluminum EMI/RFI Fan Filter Filter;06Series;4-1/2in.Fan;Aluminum;4.68in.Hx0.175in.W Fan Accessories Aluminum & Stainless Steel Fan Filters 120 mm - 4 1/2 in. Use With Fan Size (in.): 4.5 Finish: Mill (No Finish) Sixz (inches) H (sq): 4.68 Size (inches) Thickness: 0.175 M/C: 4.125

¥9.2480

详情

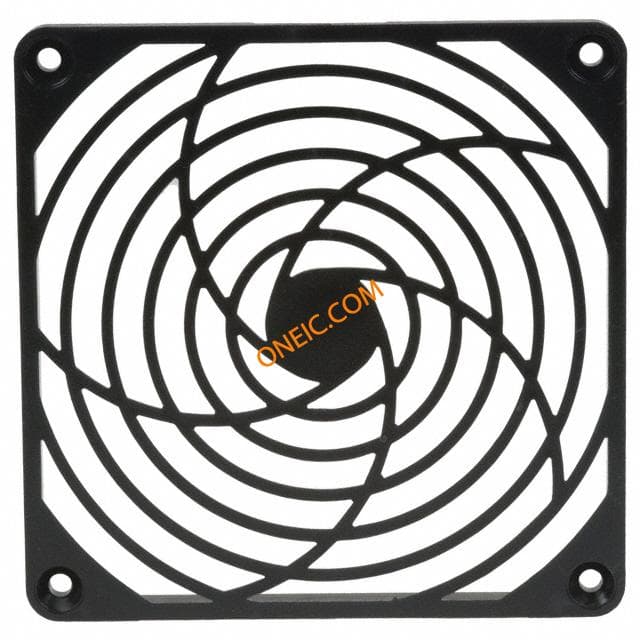

09450-G

Qualtek

Fan Cords & Accessories BLK PLSTC GUARD 4.65 FINGER GUARD 120MM PLASTIC Fan Accessories BLK PLSTC GUARD 4.65 Thrml Mgmt Access Guard 120mm Plastic FINGER GUARD FanGuard;Plastic Fan Accessories Plastic Fan Guards For Use With Fan Size (mm): 120 For Use With Fan Size (in.): 4.5

¥3.5360

详情

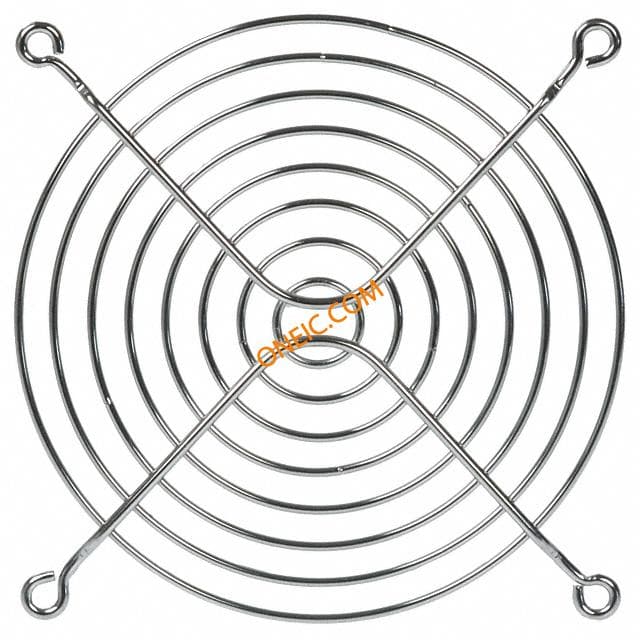

08130

Qualtek

Fan Cords & Accessories 120mm WIRE FAN GD FINGER GUARD 120MM METAL Fan Guard; Wire; 4 1/2 Inch A(120MM) Fan Accessories 120mm WIRE FAN GD Thrml Mgmt Access Finger Guard FINGER GUARD FanGuard,Wire,41/2InchA(120MM) Fan Accessories Wire Form Fan Guards For Use With Fan Size (mm): 120 For Use With Fan Size (in.): 4.5

¥3.0600

详情

09123-G

Qualtek

Fan Cords & Accessories 120mm PLASTIC FAN GD PLASTIC FAN GUARD 120MM Fan Accessories 120mm PLASTIC FAN GD Thrml Mgmt Access Fan Guard Plastic FanGuard,Plastic,41/2Inch(120MM)

¥5.9840

详情

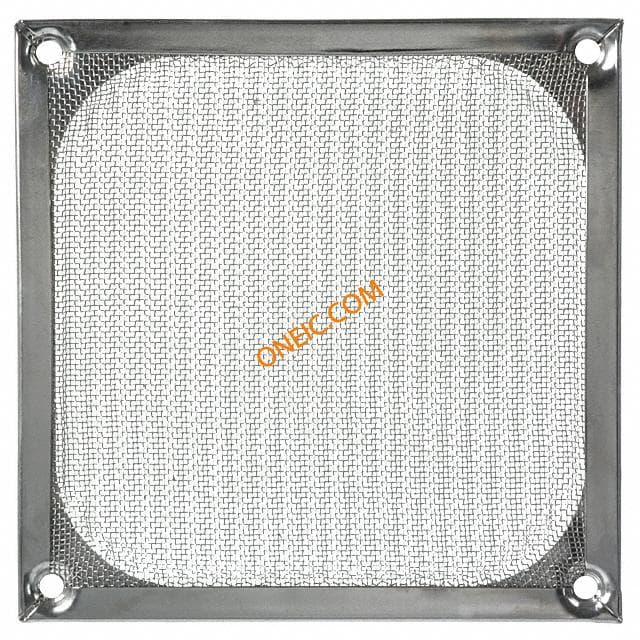

06450-SS

Qualtek

Fan Cords & Accessories STEEL FILTER 120MM FAN FILTER/SCREEN STEEL 120MM Filter; 06 Series; 4-1/2 in. Fan; Stainless Steel; 4.68 in. H x 0.175 in. W Fan Accessories STEEL FILTER 120MM EMI/RFI Fan Filter Filter;06Series;4-1/2in.Fan;StainlessSteel;4.68in.Hx0.175in.W Fan Accessories Aluminum & Stainless Steel Fan Filters 120 mm - 4 1/2 in. Use With Fan Size (in.): 4.5 Finish: Stainless Steel Sixz (inches) H (sq): 4.68 Size (inches) Thickness: 0.175 M/C: 4.125

¥20.0600

详情

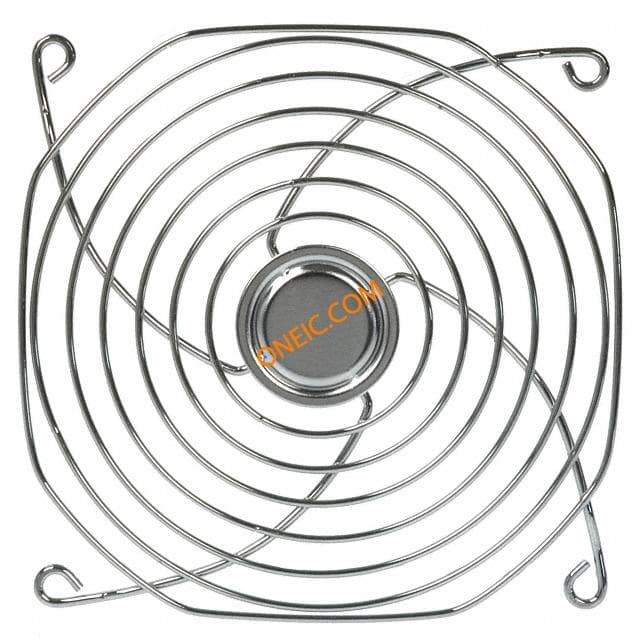

08141
