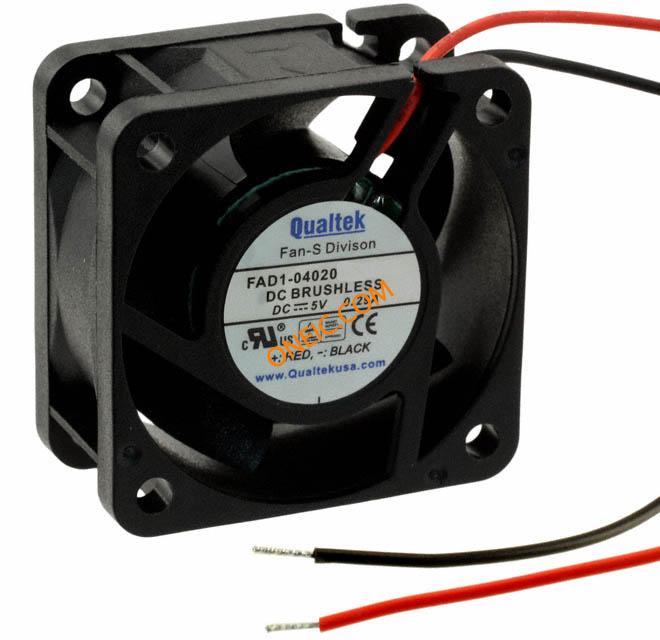

FAD1-04020BBLW11

制造商	Qualtek Electronics Corp.
描述	FAN 40X20MM BALL 5VDC WIRE Fans DC FAN 40x20mm Ball 5VDC WIRE
分类	硬件与散热解决方案直流风扇鼓风机

对参数有疑问？问 AI 助手

商业参数

产品	Fans	产品类别	Fans
标准包装数量	500

合规参数

RoHS

RoHS Compliant

电气参数

噪声	30 dB(A)	转速	6200 RPM
功率（瓦）	0.70W	额定功率	700 mW
额定电压	5VDC	供电电压	5 V
最大额定电流	0.140A

机械参数

RPM	6200 RPM	重量	0.062 lb (28.12g)
风量	7.0 CFM (0.198m³/min)	风扇类型	Tubeaxial
端接方式	2 Wire Leads	轴承类型	Ball
静压	0.165 in H2O (41.1 Pa)	壳体材料	Polybutylene Terephthalate (PBT)
刀片材料	Plastic	框架材料	Plastic
尺寸/外形	Square - 40mm L x 40mm H x 20mm W	端接样式	Wire Leads

产品信息

类型

Brushless Axial Fans

功能

环境参数

工作温度

14 ~ 158°F (-10 ~ 70°C)

文档与媒体

PDF 文档

FAD1-04020 Series

PDF 文档

FAD1-04020-29227.pdf

相关型号

07199-12

Qualtek

AC Power Cords 12 FAN PWR CORD POWER CORD FAN T-TYPE 12" Fan Cords & Accessories 12 FAN PWR CORD Cable Assembly Cord 0.305m 18AWG 2 POS Power RCP Fan Accessories Fan Power Cords Cord Length (mm): 305 Cord Length (in.): 12 Style: T-Type Cordage: SPT-1(18/2)

¥4.0786

详情

07145-24

Qualtek

AC Power Cords 24 FAN PWR CORD POWER CORD FAN 45DEG ANGLE 24" Power Cord; 24 in.; 45 deg; UL Recognized; CSA Certified; 300 V; 7 A Fan Cords & Accessories 24 FAN PWR CORD Cable Assembly Cord 0.609m 18AWG 2 POS Power RCP FAN POWER CORD PowerCord;24in.;45deg;ULRecognized,CSACertified;300V;7A Fan Accessories Fan Power Cords Cord Length (mm): 610 Cord Length (in.): 24 Style: 45 Cordage: SPT-1(18/2)

¥5.1830

详情

07199-36

Qualtek

AC Power Cords 36 FAN PWR CORD POWER CORD FAN T-TYPE 36" Power Cord; 36 in.; T-Type; UL Recognized; CSA Certified; 300 V; 7 A Fan Cords & Accessories 36 FAN PWR CORD Cable Assembly Cord 0.914m 18AWG 2 POS Power RCP PowerCord;36in.;T-Type;ULRecognized,CSACertified;300V;7A Fan Accessories Fan Power Cords Cord Length (mm): 915 Cord Length (in.): 36 Style: T-Type Cordage: SPT-1(18/2)

¥6.2023

详情

07145-SP072

Qualtek

AC Power Cords 72 45 DEGREE PLUG POWER CORD W/PLUG FAN 45DEG 72" Fan Cords & Accessories 72 45 DEGREE PLUG

¥12.0652

详情

07199-24

Qualtek

AC Power Cords 24 FAN PWR CORD POWER CORD FAN T-TYPE 24" Fan Cord; 24 in.; T-Type; UL Listed; CSA Certified; Blunt Cut; 300 V; 7 A Fan Cords & Accessories 24 FAN PWR CORD Cable Assembly Cord 0.609m 18AWG 2 POS Power RCP FAN POWER CORD FanCord;24in.;T-Type;ULListed,CSACertified;BluntCut;300V;7A Fan Accessories Fan Power Cords Cord Length (mm): 610 Cord Length (in.): 24 Style: T-Type Cordage: SPT-1(18/2)

¥5.2360

详情

07199-72

Qualtek

AC Power Cords 72 FAN PWR CORD POWER CORD FAN T-TYPE 72" Fan Cords & Accessories 72 FAN PWR CORD

¥9.6560

详情

07145-36

Qualtek

AC Power Cords 36 FAN PWR CORD POWER CORD FAN 45DEG ANGLE 36" Power Cord; 36 in.; 45 deg; UL Recognized; CSA Certified; 300 V; 7 A Fan Cords & Accessories 36 FAN PWR CORD Thrml Mgmt Access Fan Cord FAN POWER CORD PowerCord;36in.;45deg;ULRecognized,CSACertified;300V;7A Fan Accessories Fan Power Cords Cord Length (mm): 915 Cord Length (in.): 36 Style: 45 Cordage: SPT-1(18/2)

¥6.2023

详情

07100-SP036

Qualtek

AC Power Cords 36FAN PWR CORD POWER CORD W/PLUG STRAIGHT 36" Fan Cords & Accessories 36FAN PWR CORD

¥11.0160

详情

07100-24

Qualtek

AC Power Cords 24 FAN PWR CORD POWER CORD FAN STRAIGHT 24" Power Cord; Fan; 2; Straight; UL Listed; CSA Certified; 300 V; 7 A Fan Cords & Accessories 24 FAN PWR CORD Cable Assembly Cord 0.6m 2 POS Power PL FAN POWER CORD PowerCord,Fan;2;Straight;ULListed,CSACertified;300V;7A Fan Accessories Fan Power Cords Cord Length (mm): 610 Cord Length (in.): 24 Style: Straight Cordage: SPT-1(18/2)

¥5.1830

详情

07190-12

Qualtek

AC Power Cords 12 FAN PWR CORD POWER CORD FAN RIGHT ANGLE 12" Power Cord; 12 in.; 90 deg; UL Recognized; CSA Certified; 300 V; 7 A Fan Cords & Accessories 12 FAN PWR CORD Cable Assembly Cord 0.305m 18AWG 2 POS Power RCP PowerCord;12in.;90deg;ULRecognized,CSACertified;300V;7A Fan Accessories Fan Power Cords Cord Length (mm): 305 Cord Length (in.): 12 Style: 90 Cordage: SPT-1(18/2)

¥4.0786

详情

07100-50

Qualtek

AC Power Cords 50 FAN PWR CORD POWER CORD FAN STRAIGHT 50" Fan Cords & Accessories 50 FAN PWR CORD Cable Assembly Cord 1.27m 18AWG 2 POS Power RCP Fan Accessories Fan Power Cords Cord Length (mm): 1270 Cord Length (in.): 50 Style: Straight Cordage: SPT-1(18/2)

¥7.7316

详情

QF-40-01

Qualtek

Fan Cords & Accessories 40mm FILTR MEDIA FILTER MEDIA 40MM WHITE Fan Accessories 40mm FILTR MEDIA FAN FILTER MEDIA Fan Accessories Fan Silencer and Accessories Filter Media Fan Size: 40 Material: Foam dust filter FL100 Filter Class: G2 DIN EN 779

¥3.0042

详情

07190-36

Qualtek

Fan Cords & Accessories 36 FAN PWR CORD POWER CORD FAN RIGHT ANGLE 36" Power Cord; Fan; 2; 90 deg; UL Listed; CSA Certified; 300 V; 7 A Fan Accessories 36 FAN PWR CORD Cable Assembly Cord 0.914m 18AWG 2 POS Power RCP FAN POWER CORD PowerCord,Fan;2;90deg;ULListed,CSACertified;300V;7A Fan Accessories Fan Power Cords Cord Length (mm): 915 Cord Length (in.): 36 Style: 90 Cordage: SPT-1(18/2)

¥6.2023

详情

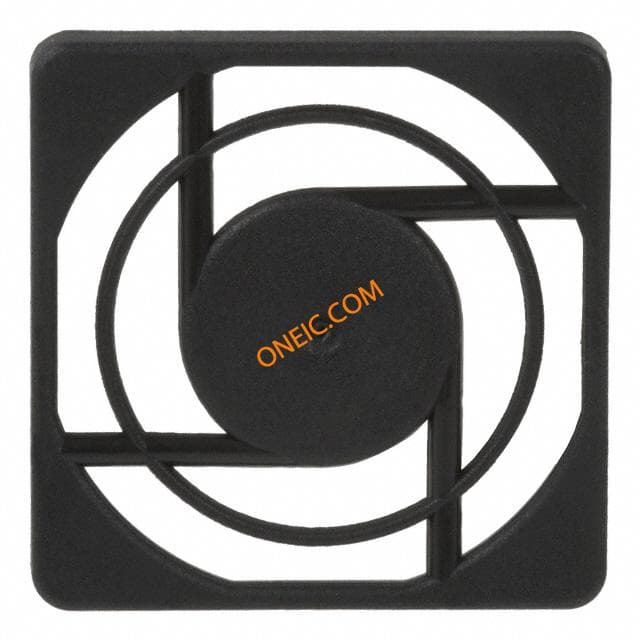

QSG-40-02
