点击放大查看

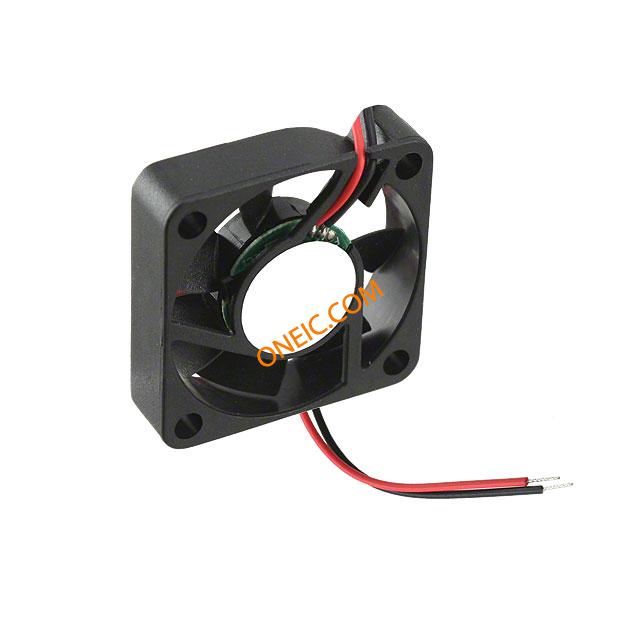

FAD1-04010BBHW11

制造商	Qualtek Electronics Corp.
描述	FAN 40X10MM BALL 5VDC WIRE Fans DC FAN 40x10mm Ball 5VDC WIRE Fan;DC;5V;40x40x10mm;Sq;6.2CFM;0.8W;26dBA;6000RPM;Leadwires
分类	硬件与散热解决方案直流风扇鼓风机

对参数有疑问？问 AI 助手

商业参数

产品	Fans	交货时间	119 Days
子类别	Blowers and Fans	产品类别	Fans
标准包装数量	700

合规参数

RoHS

Lead free / RoHS Compliant

电气参数

噪声	26 dB(A)	转速	6000 RPM
功率（瓦）	0.80W	额定功率	800 mW
额定电压	5VDC	供电电压	5 V
最大额定电流	0.160A

机械参数

RPM	6000 RPM	尺寸	1.6x0.4(40x10)In.(mm)
重量	0.037 lb (16.78g)	风量	6.2 CFM (0.175m³/min)
风扇类型	Tubeaxial	材料（通用）	AluminumAlloy
旋转范围	CW	端接方式	2 Wire Leads
轴承类型	Ball	静压	0.100 in H2O (24.9 Pa)
壳体材料	Plastic	刀片材料	Plastic
框架材料	Plastic	主要材料	Fans
尺寸/外形	Square - 40mm L x 40mm H x 10mm W	端接样式	Wire Leads
风扇附件类型	1.6x0.4(40x10)In.(mm)	总体尺寸	1.6x1.6x0.4In.

产品信息

类型	Axial Fans	功能	DC
方向	ExhaustoverStruts	开关类型	DC
制造商全称	FAD1-04010Series	配置	Square

环境参数

工作温度	14 ~ 158°F (-10 ~ 70°C)	自然散热热阻	6.2CFM
结工作温度	70°C

文档与媒体

PDF 文档

FAD1-04010.pdf

PDF 文档

FAD1-04010 Series

PDF 文档

FAD1-04010-42541.pdf
