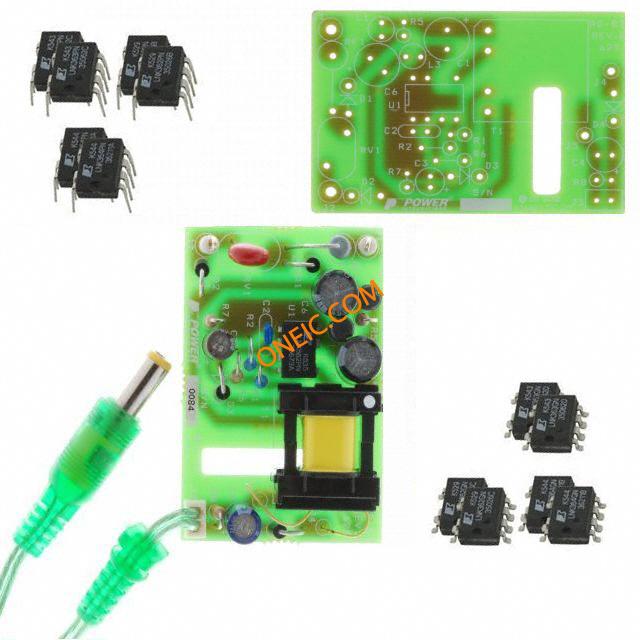

RDK-83
| 制造商 | |
| 描述 | 1.75 W CV CORDLESS PHONE ADAPTER Power Management IC Development Tools LinkSwitch-LP Family KIT DESIGN REF LINKSWITCH LP Development Kit, Power Management With Documentation, Linear Replacement Adapter, Reference Board, Samples Power Integrations LinkSwitch-LP 套件 电源 开发套件 |
| 分类 |
商业参数
| 其他名称 | 596-1128 | 产品类别 | Power Management IC Development Tools |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | No | 零件状态 | LinkSwitch-LP |
电气参数
| 额定输出功率 | 1.6W | 输出电流 | 210mA |
| 稳压器拓扑 | Flyback | 开关频率 | 66kHz |
| 电源线保护 | 电源 | 最小输入电压 | 7.7V |
机械参数
| 包装方式 | Box | 电路板厚度 | Bare (Unpopulated) and Fully Populated |
产品信息
| 内容 | 2 Boards, Samples | 套件类型 | 开发套件 |
| 技术 | Power Management | 套件内容 | Documentation, Linear Replacement Adapter, Reference Board, Samples |
| 主要用途 | AC/DC, Primary Side | 卡标准 | Development Kit |
| 输出及类型 | 1, Isolated | 使用的IC/零件 | LNK562, LNK563, LNK564 |
