RDK-242

制造商	Power Integrations, Inc.
描述	REFERENCE DESIGN FOR A 30 W SUPPLY Power Management IC Development Tools TOPSwitch-JX REF. DESIGN KIT KIT REF DESIGN VG TOPSWITCH-JX TOP266VG, PSU, 30W, EVAL BOARD
分类	集成电路逻辑IC标准逻辑IC

对参数有疑问？问 AI 助手

商业参数

产品

Power Management Modules

标准包装数量

合规参数

RoHS	RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
海关税号	85423990

电气参数

额定输出功率	30W	额定电压	85 VAC to 264 VAC
输出电流	2.5A	元件数量	:TOP266VG
稳压器拓扑	Flyback	开关频率	132kHz
最小输入电压	12V

机械参数

重量	0.002	包装方式	Box
电路板厚度	Fully Populated

产品信息

类型	Power Drivers	内容	Board
产品特性	:-	套件类型	:Power Management

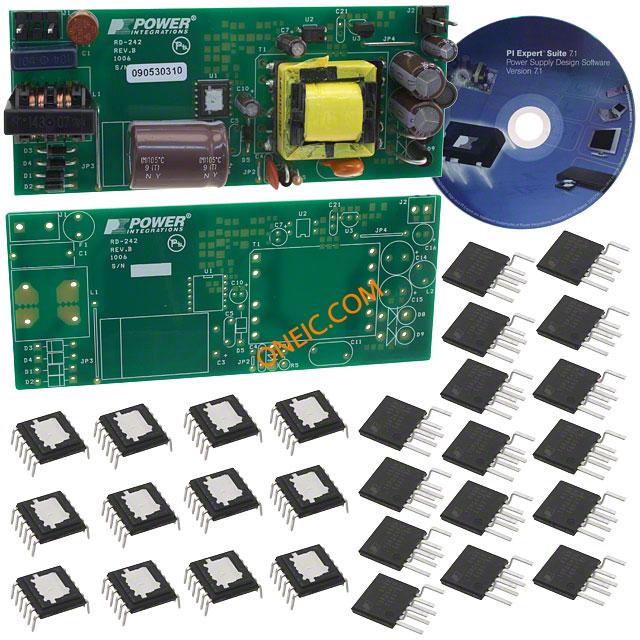

套件内容	:Eval Board TOP266VG	主要用途	AC/DC, Primary and Secondary Side
输出及类型	1, Isolated	使用的IC/零件	TOP266VG
芯片组制造商	:Power Integrations	应用细节	:Power Supply

文档与媒体

在线文档

RDK-242: 30W, 12V @ 2.5A, 85~264VAC

PDF 文档

TOP264-271

PDF 文档

1699502.pdf
