点击放大查看

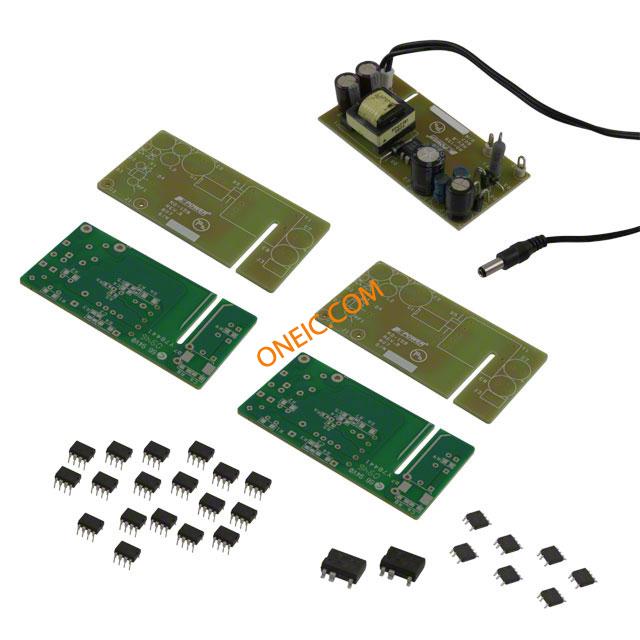

RDK-158

制造商	Power Integrations, Inc.

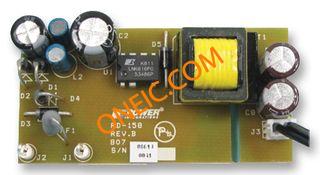

描述	5W CHARGER OR ADAPTER Power Management IC Development Tools 5W Charger/Adapter 8-265V LinkSwitch-II KIT REF DESIGN PG LINKSWITCH-II LNK616PG, SMPS, 5W, EVAL BOARD
分类	集成电路逻辑IC标准逻辑IC

对参数有疑问？问 AI 助手

商业参数

标准包装数量

合规参数

RoHS	No	SVHC	:No SVHC (20-Jun-2013)
海关税号	84733020

电气参数

额定输出功率	5W	输出电流	1A
元件数量	:LNK616PG	稳压器拓扑	Flyback
开关频率	67.25 kHz	最小输入电压	4.75 V ~ 5.25 V

机械参数

重量	0.002	包装方式	Bulk
电路板厚度	Fully Populated

产品信息

内容	Board	产品特性	:-
套件类型	:Power Management - Battery	套件内容	:Eval Board LNK616PG
主要用途	AC/DC, Primary Side	输出及类型	1, Isolated
使用的IC/零件	LNK603, LNK604, LNK605, LNK606, LNK613, LNK614, LNK615, LNK616	芯片组制造商	:Power Integrations
应用细节	:Battery Charger

文档与媒体

在线文档

RDK-158: 5W, 5V @ 1A, 85 ~ 265VAC

PDF 文档

LNK603-606/613-616

PDF 文档

1699504.pdf

PDF 文档

linkswitch-ii_family_datasheet.pdf
