点击放大查看

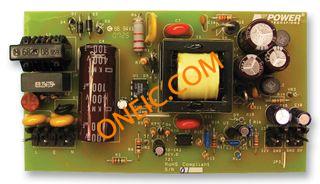

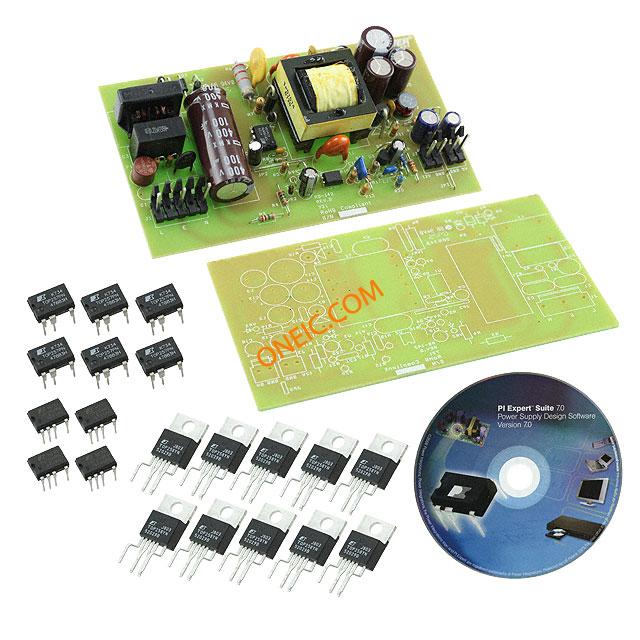

RDK-142

制造商	Power Integrations, Inc.
描述	LCD MONITOR POWER SUPPLY Power Management IC Development Tools TOPSWITCH-HX REF. DESIGN KIT KIT REF DESIGN TOP HX FOR TOP258 Development Kit, Power Management With Design Kit for LCD Power Supply REF DESIGN KIT, FOR TOP258
分类	嵌入式系统与开发工具嵌入式开发工具评估与开发套件

对参数有疑问？问 AI 助手

商业参数

产品	Accessories & Kits	产品类别	Power Management IC Development Tools
标准包装数量	1

合规参数

RoHS	Lead free / RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
海关税号	85235290

电气参数

核心类型	:(Not Available)	额定输出功率	35W
输出电流	2.2A, 2A	稳压器拓扑	Flyback
开关频率	30kHz	最小输入电压	5V, 12V

机械参数

重量	0.421	包装方式	Box
电路板厚度	Fully Populated

产品信息

类型	:Reference Design Kit	内容	Board
产品特性	:Accurate, Auto-Recovering, Hysteretic Thermal Shutdown Function	套件类型	:Displays
技术	Power Management	套件内容	Design Kit for LCD Power Supply
主要用途	AC/DC, Primary Side	卡标准	Development Kit
输出及类型	2, Non-Isolated	使用的IC/零件	TOP258
芯片组制造商	:Power Integrations	应用细节	:LCD Monitor
支持MCU系列	:TOP258PN

文档与媒体

PDF 文档

Reference Design 142

相关型号

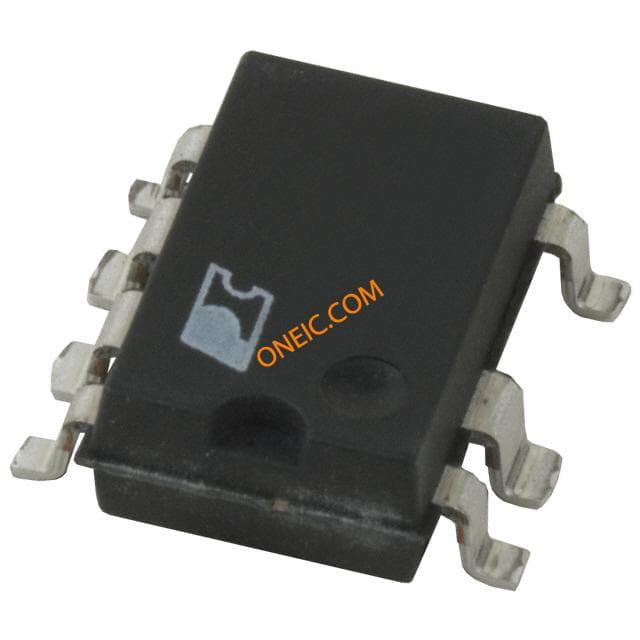

TOP252GN-TL

power integrations

Off Line Switcher 7-Pin SMD-C T/R IC OFFLINE SWIT PROG OVP 8SMD AC/DC Converters Int Off-Line Switchr 10-13W PK 15-21W PK

¥4.6444

详情

TOP255GN-TL

power integrations

Off Line Switcher 7-Pin SMD-C T/R IC OFFLINE SWIT PROG OVP 8SMD AC/DC Converters Off-Line Switcher IC 22W/35W PK

¥19.2374

详情

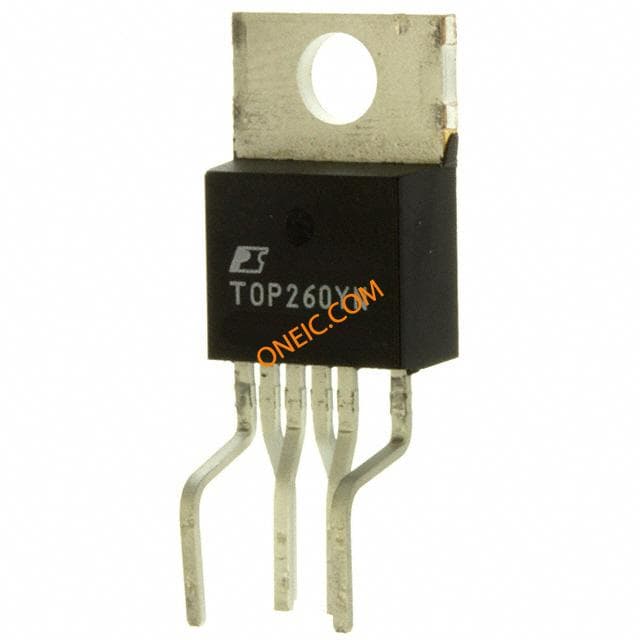

TOP260YN

power integrations

200W (85-264V AC) 275W (230V AC) Off Line Switcher 6-Pin(6+Tab) TO-220-C IC OFFLINE SWIT PROG OVP TO220 AC/DC Converters Int Off-Line Switchr 200W/275W

¥14.0080

详情

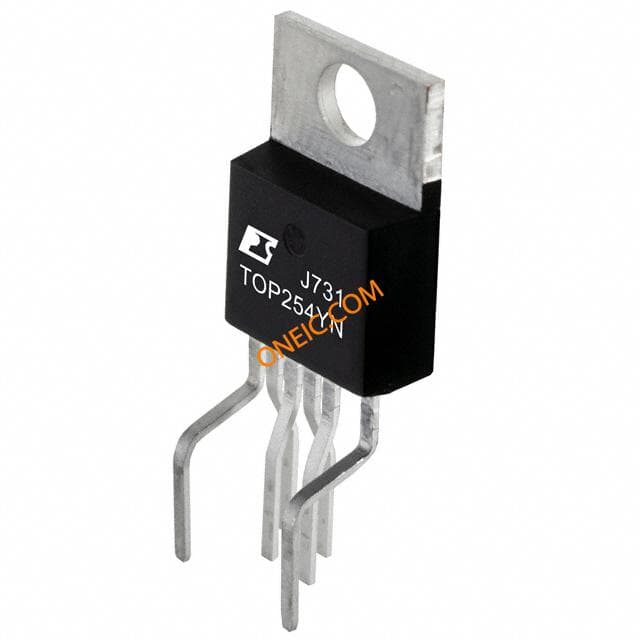

TOP254YN

power integrations

Off Line Switcher 6-Pin(6+Tab) TO-220-C IC OFFLINE SWIT PROG OVP TO220 AC/DC Converters Off-Line Switcher IC 43W

¥10.9200

详情

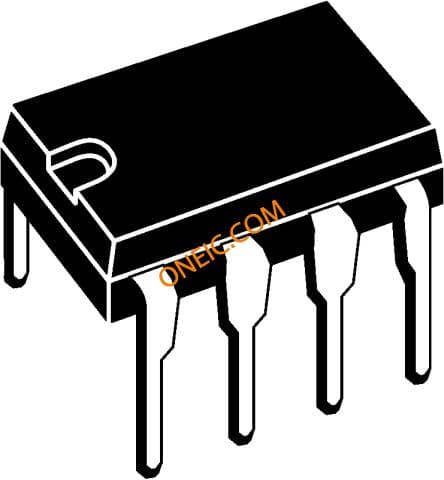

TOP258PN

power integrations

Off Line Switcher 7-Pin PDIP-C IC OFFLINE SWIT PROG OVP 8DIP TOP258PN, Intelligent Power Switch Off Line Switcher, 77W, 7-Pin, PDIP-8C AC/DC Converters Off-Line Switcher IC 35W/50W PK Power Integrations Topswitch, 77W, 7针 PDIP封装

¥6.8495

详情

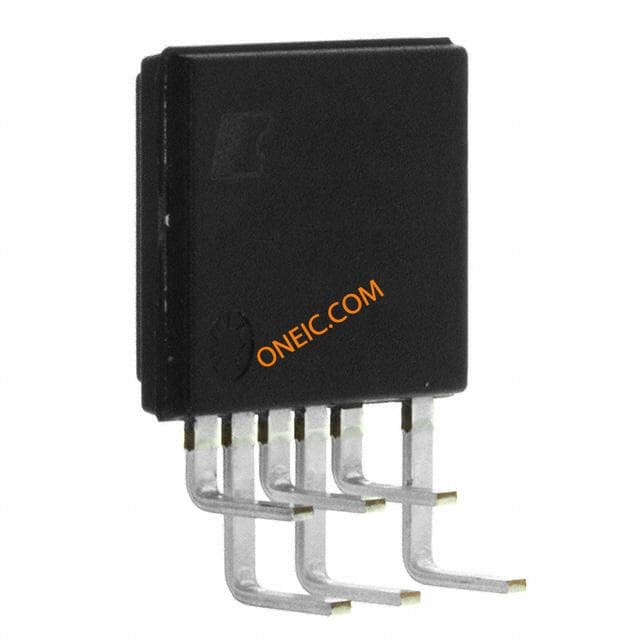

TOP260LN
