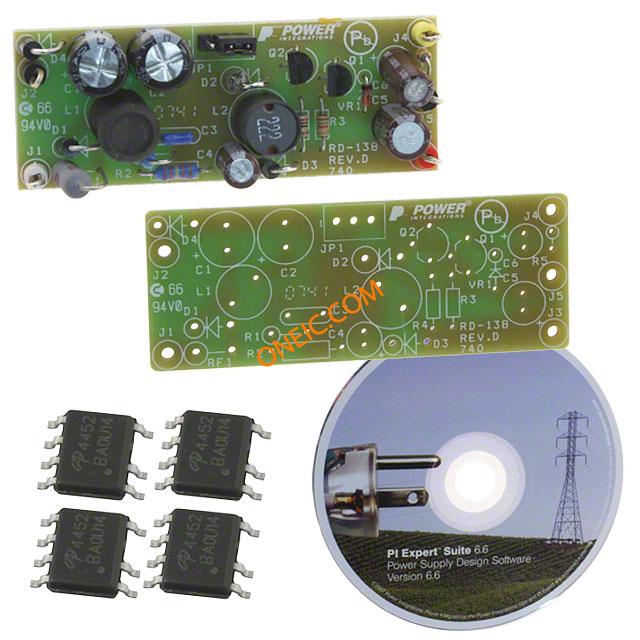

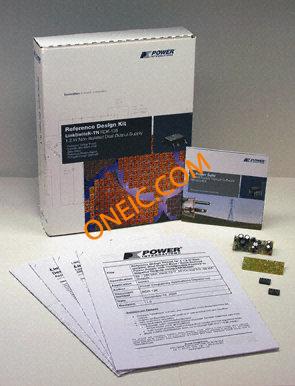

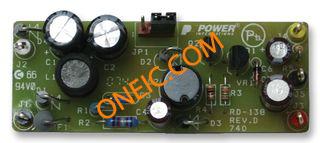

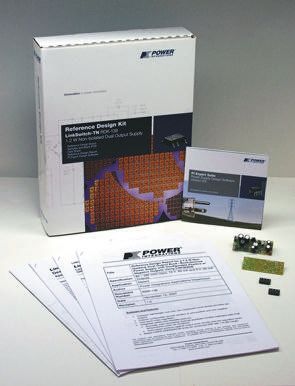

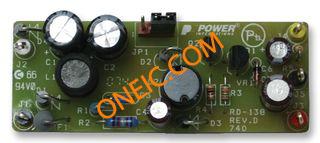

RDK-138
| 制造商 | |
| 描述 | NON-ISOLATED, DUAL OUTPUT BUCK / BUCK-DERIVED POWER SUPPLY Power Management IC Development Tools LINKSWITCH-TN REF. DESIGN KIT KIT REF DESIGN 1.2W PS TN FAMILY Development Kit, Power Management With Design Kit for Power Supply LNK304DN, BUCK PSU, 1.2W, EVAL BOARD Power Integrations 降压电源 开发套件 |
| 分类 |
商业参数
| 产品 | Reference Design Kits | 产品类别 | Power Management IC Development Tools |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Not applicable / Not applicable | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 84733020 | ||
电气参数
| 额定输出功率 | 1.2W | 输出电流 | 80mA, 50mA |
| 元件数量 | :LNK304DN | 稳压器拓扑 | Buck |
| 开关频率 | 66kHz | 最小输入电压 | 12V, 5V |
机械参数
| 重量 | 0.002 | 包装方式 | Box |
| 电路板厚度 | Fully Populated | ||
产品信息
| 内容 | Board | 产品特性 | :- |
| 套件类型 | :Power Management | 技术 | Power Management |
| 套件内容 | Design Kit for Power Supply | 主要用途 | AC/DC, Non-Isolated |
| 卡标准 | Development Kit | 输出及类型 | 2, Non-Isolated |
| 使用的IC/零件 | LNK304 | 芯片组制造商 | :Power Integrations |
| 应用细节 | :Buck Converter | ||
文档与媒体
相关型号
LNK304PN
power integrations
Off Line Switcher 7-Pin PDIP-B AC/DC Switching Converters 120mA MDCM 170mA CCM IC OFFLINE SWIT OCP 8DIP LNK304PN, Switching Regulator,, 12V dc, 7-Pin PDIP-8B AC/DC Converters 120mA MDCM 170mA CCM IC,VeryLowPowerAC-DC,NonIsolate Switching Regulator 170 mA DIL-8 (7-lead), LNK304PN, Power Integrations Power Integrations 开关稳压器, 12 V 直流, 7针 PDIP封装
LNK304DG-TL
power integrations
Off Line Switcher 7-Pin SOIC-C T/R AC/DC Switching Converters 120 mA (MDCM) 170 mA (CCM) IC OFFLINE SWIT OCP 8SOP AC/DC Converters 120 mA (MDCM) 170 mA (CCM)
LNK304DN
power integrations
Off Line Switcher 7-Pin SOIC-C AC/DC Switching Converters 120 mA (MDCM) 170 mA (CCM) IC OFFLINE SWIT OCP 8SOIC LNK304DN, Intelligent Power Switch Off Line Switcher, 7-Pin, SOIC, SOIC-8C AC/DC Converters 120 mA (MDCM) 170 mA (CCM) SWITCHER, 85-250VAC, 0.12A, 7SOIC Driver; switch; 120mA; 85÷265V; Channels:1; SO8 Power Integrations 链路开关, 7针 SOIC封装
LNK304DN-TL
power integrations
Off Line Switcher 7-Pin SOIC-C T/R AC/DC Switching Converters 120 mA (MDCM) 170 mA (CCM) IC OFFLINE SWIT OCP 8SOIC AC/DC Converters 120 mA (MDCM) 170 mA (CCM)
LNK304DG
power integrations
Off Line Switcher 7-Pin SOIC-C AC/DC Switching Converters 120 mA (MDCM) 170 mA (CCM) IC OFFLINE SWIT OCP 8SOP AC/DC Converters 120 mA (MDCM) 170 mA (CCM)
LNK304GN-TL
power integrations
Off Line Switcher 7-Pin SMD-B T/R IC OFFLINE SWIT OCP 8SMD AC/DC Converters 120mA MDCM 170mA CCM
LNK304GN
power integrations
Off Line Switcher 7-Pin SMD-B AC/DC Switching Converters 120mA MDCM 170mA CCM IC OFFLINE SWIT OCP 8SMD LNK304GN, Switching Regulator,, 12V dc, 7-Pin PDIP SMD AC/DC Converters 120mA MDCM 170mA CCM IC, OFF LINE SWITCHER, 120MA, 170MA Switching Regulator 170 mA SMD-8B (7-PIN), LNK304GN, Power Integrations Power Integrations 开关稳压器, 12 V 直流, 7针 PDIP SMD封装
LNK304G
Power Integrations
IC OFFLINE SWIT OCP 8SMD
LNK304G-TL
Power Integrations
IC OFFLINE SWIT OCP 8SMD
LNK304P
Power Integrations
IC OFFLINE SWIT OCP 8DIP
