DAK-86
| 制造商 | |
| 描述 | POE DC-DC CONVERTER - CLASS SELECTABLE Power Management IC Development Tools PoE DC-DC Converter KIT REF DES DPA 6.6W DC-DC CONV |
| 分类 |
商业参数
| 产品 | Reference Designs | 其他名称 | 596-1195 |
| 产品类别 | Power Management IC Development Tools | 标准包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定输出功率 | 6.6W | 额定电压 | 33 V to 57 V |
| 输出电流 | 2 A | 稳压器拓扑 | Flyback |
| 开关频率 | 400kHz | 最小输入电压 | 3.3V |
机械参数
| 包装方式 | Box | 电路板厚度 | Fully Populated |
产品信息
| 类型 | DC/DC Converters, Regulators & Controllers | 内容 | Board, Samples, Software |
| 主要用途 | Special Purpose DC/DC, Power Over Ethernet | 输出及类型 | 1, Isolated |
| 工具类型/特性 | DPA423G | 使用的IC/零件 | DPA423, DPA424, DPA425 |
环境参数
| 工作温度 | + 40 C | ||
文档与媒体
相关型号

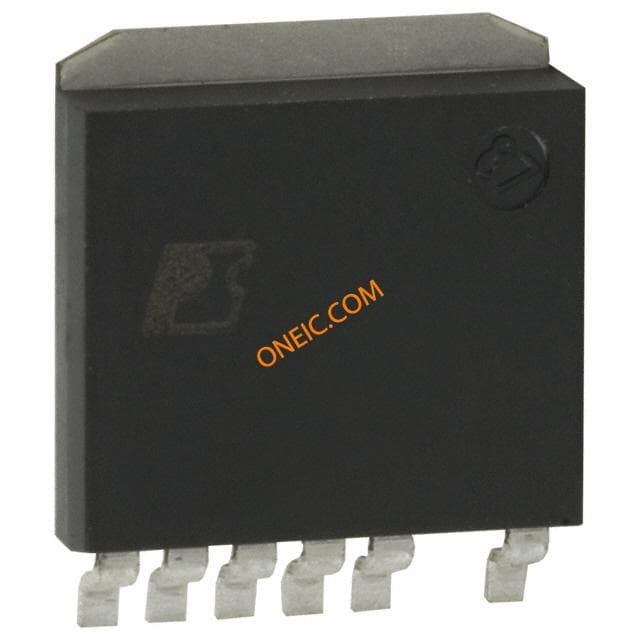

DPA424SN
Power Integrations
DC/DC Switching Converters 35W 36-75V DCIN IC CONV DC-DC DPA SWITCH SPAK
DPA425SN
Power Integrations
Switching Converters, Regulators & Controllers 70W 36-75V DCIN IC CONV DC-DC DPA SWITCH SPAK
DPA425SN-TL
Power Integrations
Switching Converters, Regulators & Controllers 70W 36-75V DCIN IC CONV DC-DC DPA SWITCH SPAK
DPA425PN
power integrations
Highly Integrated DC-DC Converter 8-Pin PDIP Switching Converters, Regulators & Controllers 25.5W 36-75V DCIN IC CONV DC-DC DPA SWITCH 8DIP DPA425PN, DC-DC Converter,, 8-Pin PDIP DC/DC Converters 25.5W 36-75V DCIN
DPA423SN-TL
power integrations
Highly Integrated DC-DC Converter 7-Pin(6+Tab) SPAK T/R Switching Converters, Regulators & Controllers 18W 36-75V DCIN IC CONV DC-DC DPA SWITCH SPAK

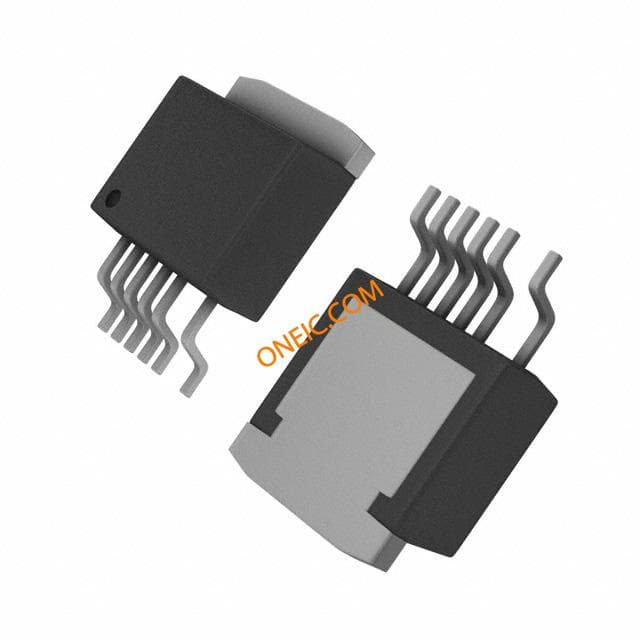

DPA424R-TL
