DAK-16A
| 制造商 | |
| 描述 | AC-DC ADAPTER Power Management IC Development Tools Output: 5.5 V @ 2.75 W KIT DESIGN ACCELERATOR ADAPTER |
| 分类 |
商业参数
| 产品 | Reference Design Kits | 其他名称 | 596-1001 |
| 产品类别 | Power Management IC Development Tools | 标准包装数量 | 1 |
合规参数
| RoHS | No | ||
电气参数
| 额定输出功率 | 2.75W | 额定电压 | 85 VAC to 265 VAC |
| 输出电流 | 500mA | 稳压器拓扑 | Flyback |
| 开关频率 | 42kHz | 最小输入电压 | 5.5V |
机械参数
| 包装方式 | Box | 电路板厚度 | Bare (Unpopulated) |
产品信息
| 类型 | Power Switches | 内容 | Board, Samples, Software |
| 功能 | AC-DC adapter | 主要用途 | AC/DC, Primary Side |
| 输出及类型 | 1, Isolated | 工具类型/特性 | LNK500P/501P |
| 使用的IC/零件 | LNK500, LNK501, LNK520 | 适用产品/相关产品 | LNK500P/501P |
环境参数
| 工作温度 | - 40 C | ||
文档与媒体
相关型号
LNK500PN
power integrations
3 W (85-265 VAC) 4 W (230 VAC) CV/CC Switcher 7-Pin PDIP-B IC SWIT OCP CV/CC HV 8DIP AC/DC Converters 3W 85-265 VAC 4W 230 VAC DC-DC converter; Uin:85÷265V; 400mA; DIP8
LNK520PN
power integrations
CV/CC Switcher 7-Pin PDIP-B IC SWIT OCP CV/CC HV 8DIP AC/DC Converters 3W 85-265 VAC 4W 230 VAC

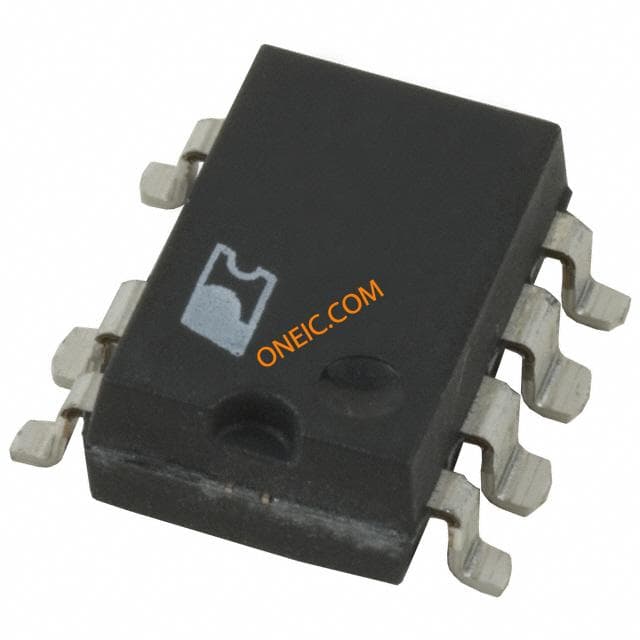

LNK500GN-TL
