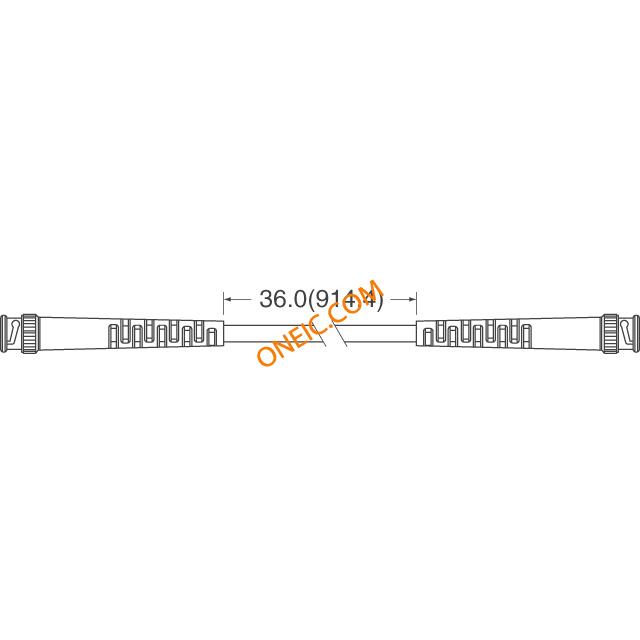

2249-C-36
| 制造商 | |
| 描述 | RF Cable Assemblies BNC-BNC MALE 3" Cable Assembly Coaxial 0.914m 20AWG BNC to BNC M-M RF Cable Assemblies BNC-BNC MALE 3' CABLE BNC MALE RG-58C/U 36" CableAssy;36in.;20AWG;RG58C/U;NonBooted;BlackJacket;ULListed BNC Male Patch Cable 50 Ohms, 3', RG58C/U |
| 分类 |
商业参数
| 零件号别名 | 1931473 | 产品类别 | RF Cable Assemblies |
| 标准包装数量 | 2 | 工厂包装数量 | 2 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 标准 | UL,CE | ||
电气参数
| 阻抗 | 50 Ohm | 额定电压 | 30 V ac|60 V dc|500 Vrms |
| 最小输入电压 | 500VAC | ||
机械参数
| 颜色 | Black | 长度 | 36.0" (914.4mm) |
| 屏蔽 | TinnedCopperBraid | 电缆类型 | Coaxial |
| 导线线规 | 20AWG | 电缆长度 | 36" |
| 线缆护套颜色 | Black | 探头尖端材料 | Brass |
| 第一连接器 | BNC Male Plug | 第二连接器 | BNC Male Plug |
| 基体材料 | Brass | 线径 | 20AWG |
| 连接器类型 | BNC | 接触镀层 | Gold |
| 触头材料 | Brass | 连接器 - 电缆 | Straight |
| 第二连接器类型 | BNCMale | 导体材料 | TinnedCopper |
| 引线长度 | 36in | 绝缘材料 - 类型 | BNC:PTFE|Wire:Polyethylene |
| 第一连接器极性 | Plug (Male) | 第二连接器性别 | Plug (Male) |
| 按钮/帽颜色 | Black | 绝缘材料 - 材质 | Polyethylene |
| 电缆对数 | 19×33 | ||
产品信息
| 样式 | BNC to BNC | 连接器性别 | M-M |
| 系列 | BNC | 产品特性 | Shielded |
| 功能 | NonBooted | 制造商全称 | Pomona |
| 产品子类型 | Test Lead | 应用细节 | ForRFtransmissionsystems,thinnestLAN,testandmeasurement |
环境参数
| 温度额定值 | -40to+85°C | 工作温度 | -40°C ~ 85°C |
文档与媒体
相关型号

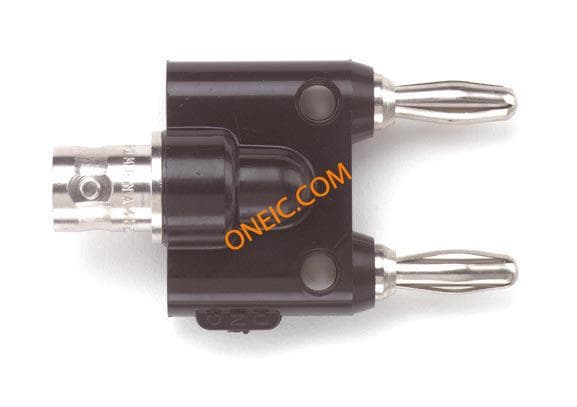

1269
