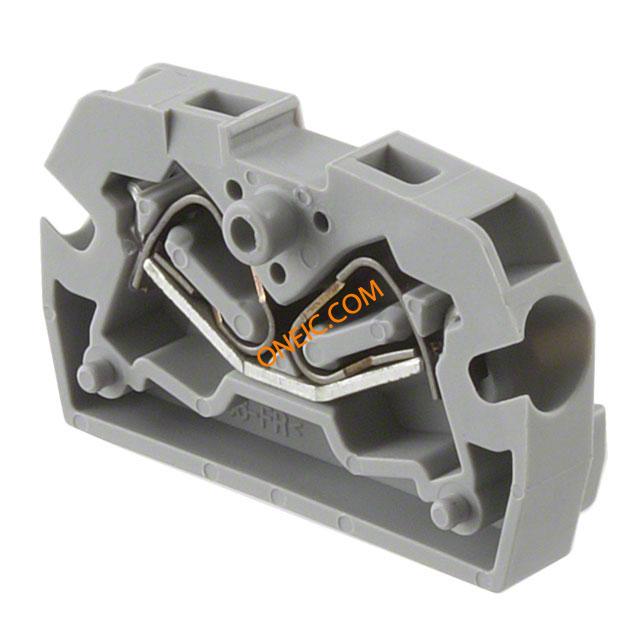

点击放大查看
3249062
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | DIN Rail Terminal Blocks MSBV 2.5-M GRAY VERTICAL ENTRY Conn Feed-Thru F 2 POS Cable Mount 24A MINI FEED-THROUGH TERM BLOCK MSBV25-M |
| 分类 |
商业参数
| 产品类别 | DIN Rail Terminal Blocks | 标准包装数量 | 1 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 电流 - UL | 20A | UL电压 | 300V |
| 电流 - IEC | 24A | IEC电压 | 800V |
| 额定电压 | 800 V | 最大额定电流 | 24 A |
| 最小输入电压 | 800V | ||
机械参数
| 颜色 | Gray | 深度 | 5.2 |
| 宽度 | 5.2 mm | 高度 | 20 mm |
| 长度 | 1.260" (32.00mm) | 导线线规 | 28 |
| 高度（最大） | 0.866" (22.00mm) | 外壳颜色 | Gray |
| 安装类型 | Cable Mount | 安装样式 | DIN Rail |
| 排数 | 2 | 壳体材料 | Polyamide |
| 总长度 | 32 | 剥线长度（范围） | 8mm |
| 端子宽度 | 5.2mm | 端接样式 | Push In, Spring |
| 触点数 | 2 | 位数 | 2 |
| 绝缘材料 - 材质 | Polyamide (PA), Nylon | 线规或范围 - AWG | 12-28 AWG |
| 线规或范围 - mm² | 0.08-4mm² | ||
产品信息
| 类型 | Feed-Thru | 连接器性别 | F |
| 层数 | 1 | ||
