3245024
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | DIN Rail Terminal Blocks UTN 4 Conn Disconnect Terminal Blocks Screw 32A TERM BLOCK UTN4 Din Rail Terminal |
| 分类 |
商业参数
| 商标名 | CLIPLINE UT | 其他名称 | UTN 4 |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 电流 - IEC | 32A | IEC电压 | 250V |
| 额定电压 | 250 V | 最大额定电流 | 32A |
| 最小输入电压 | 250V | ||
机械参数
| 颜色 | 蓝色 | 深度 | 6.2 |
| 高度 | 47.5 | 长度 | 2.165" (55.00mm) |
| 导线线规 | 10-26 | 端接方式 | Screw |
| 高度（最大） | 1.870" (47.50mm) | 外壳颜色 | Blue |
| 安装类型 | DIN Rail | 排数 | 1 |
| 总长度 | 55 | 剥线长度（范围） | 9mm |
| 端子宽度 | 6.2mm | 端接排数 | 螺钉 |
| 端接样式 | Special, Hybrid | 位数 | 2 |
| 绝缘材料 - 材质 | Polyamide (PA), Nylon | 线规或范围 - AWG | 10-26 AWG |
| 线规或范围 - mm² | 0.14-6mm² | ||
产品信息
| 类型 | Disconnect Terminal Blocks | 系列 | UT |
| 层数 | 1 | ||
环境参数
| 工作温度 | +120°C | ||
文档与媒体
相关型号
1204119
Phoenix Contact
Mounting Hardware NS 35/7.5 PERF. WH PRICED PER METER Din Rail 35mm DIN RAIL 35MMX7.5MM SLOTTED 2M NS 35/ 7,5 WH PERF 2000MM NS35/7.5PERF.WH
0824992
Phoenix Contact
Terminal Block Tools & Accessories ZB 6 CUS TERM BLOCK MARKING LABEL Terminal Block Tools & Accessories ZB 6 CUS 1 strip is 1 piece TERMINALBLOCKMARKING

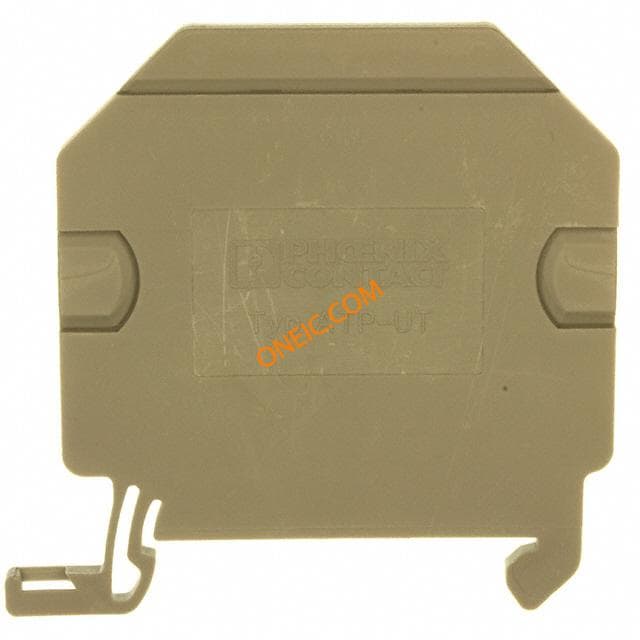

3047167
Phoenix Contact
Terminal Block Tools & Accessories ATP-UT PARTITION Connector Accessories Partition Plate Gray CONN TERM BLK PARTITIN PLATE GRY Phoenix Contact 3047167 Partition Plate Terminal Block, Series: ATP-UT PARTITION PLATE PartitionPlate;TermBlk;Gray;50mmL;2mmW;48mmH Separating plate; Application: UT; polyamide; ATEX Ex Phoenix Contact ATP-UT 系列 隔板
0201744
Phoenix Contact
Terminal Block Tools & Accessories MPS-MT Test Plug, Consisting Of Metal Part For 2.3mm Diameter Socket Hole TERM BLK TEST PLUG W/O SLEEVE Testplugs Test Plug
3030365
Phoenix Contact
Terminal Block Tools & Accessories FBS 20-6 20 P0S BRIDGE Conn Jumper PL 20 POS ST BRIDGE TERM BLOCK 20POS Cross connector/jumper for modular terminal block FBS 20-6 Bridge;Plug-InBridge;20;Red;Crossconnectionsintheterminalcenter. Phoenix Contact FBS 20-6 系列 20 极跳片
1201141
Phoenix Contact
Terminal Block Tools & Accessories AB/NS Connector Accessories Support Polyamide Gray DINRAIL SUPPORT INSULATING Phoenix Contact 1201141 DIN Rail Support Terminal Block, Series: AB/NS Mounting material AB/NS Support,forinsulatedmountingofDINrailsplastic,21mmhigh Phoenix Contact AB/NS 系列 DIN 导轨支撑

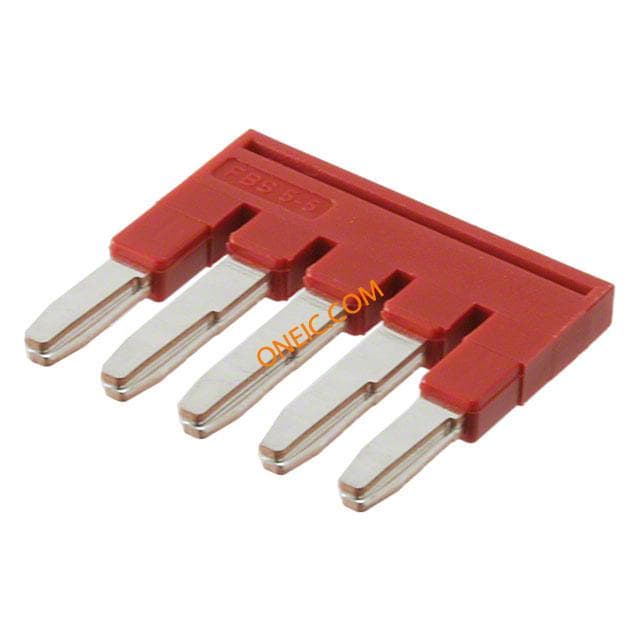

3030349
