3244601
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | CONN TERM BLOCK Terminal Block Tools & Accessories UKH 70 BU |
| 分类 |
商业参数
| 商标名 | CLIPLINE UK | 其他名称 | UKH 70 BU |
| 零件号别名 | UKH70BU | 标准包装数量 | 10 |
合规参数
| RoHS | RoHS Compliant | 材料阻燃等级 | UL94 V-0 |
电气参数
| 电流 - UL | 192A | UL电压 | 1000V |
| 电流 - IEC | 192A | IEC电压 | 1000V |
机械参数
| 颜色 | Blue | 剥线长度（范围） | 24mm |
| 端子宽度 | 20.3mm | 端接样式 | Screw |
| 位数 | 2 | 绝缘材料 - 材质 | Polyamide (PA), Nylon |
| 线规或范围 - AWG | 3/0-6 AWG | 线规或范围 - mm² | 16-95mm² |
产品信息
| 类型 | Feed Through | 系列 | UK |
| 层数 | 1 | ||
文档与媒体
相关型号
1201015
Phoenix Contact
Mounting Hardware NS 32 UNPERFORATED Gprofile DIN Rail, Material Steel, Unperforated, Height 15mm, Width 32mm, Length 2m DIN RAIL 32X15MM UNSLOT STEEL 2M G-profileDINrail,Steel,unperforated,height15mm,width32mm,eachpc2MTR DIN 导轨 G型, NS32 无孔型, 2000mm x 32mm x 15mm
0806602
Phoenix Contact
Mounting Hardware NS 35/15 - 2 METERS PRICED PER METER DIN RAIL 35MMX15MM SLOTTED 2M Din Rail 35mm DINrail35mmNS35/15PERFORATEDWH
1201662
Phoenix Contact
ターミナルブロック・ツールとアクセサリ END BRACKET Connector Accessories End Bracket for End Support Straight Aluminum Silver DINRAIL END BRACKET W/2 SCREWS Phoenix Contact 1201662 End Clamp Terminal Block, Series: E/AL-NS End bracket E/AL-NS 35 Terminal Block Tools & Accessories END BRACKET CONNECTOR ACCESSORIES EndBracket;TermBlk;DINRail;10mm;59mmL;forUKH50-UKH240 Phoenix Contact E/AL-NS 系列 端夹

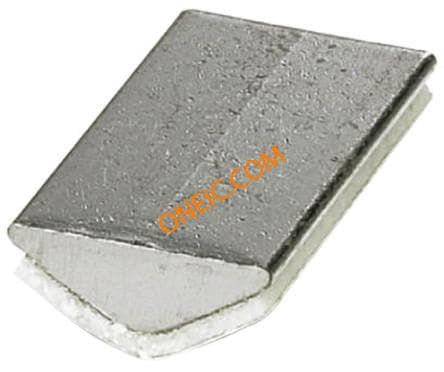

3009228
Phoenix Contact
ターミナルブロック・ツールとアクセサリ UKH 50 EP INSERTION PROFILE Insertion Profile, Levels Out The Prism-Shaped Sleeve Base When Using Flat Conductors INSERTION PROFILE SILVER Insertion profile, Color: silver Insertion profile UKH50 EP Terminal Block Tools & Accessories UKH 50 EP INSERTION PROFILE UKH50EP Phoenix Contact

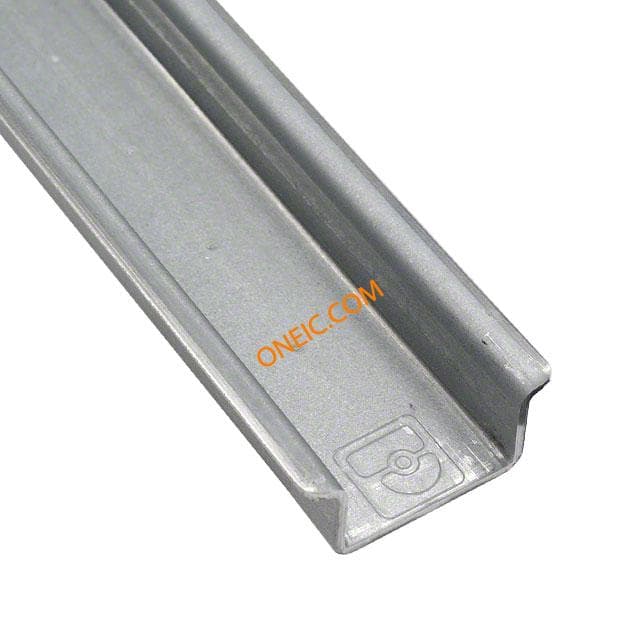

1206586
