3244164
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | DIN Rail Terminal Blocks MSB 2.5-RZ GRAY Conn Feed-Thru F 2 POS Cable Mount 24A TERM BLOCK MSB25-RZ Phoenix Contact 2 路 无熔丝端子块, 安装板, 弹簧笼端接, 800 V |
| 分类 |
商业参数
| 其他名称 | MSB 2 5-RZ | 产品类别 | DIN Rail Terminal Blocks |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 电流 - UL | 20A | UL电压 | 600V |
| 电流 - IEC | 24A | IEC电压 | 800V |
| 额定电压 | 800 V | 最大额定电流 | 24 A |
| 最小输入电压 | 800V | ||
机械参数
| 颜色 | Gray | 深度 | 5.2 |
| 宽度 | 5.2 mm | 高度 | 22 mm |
| 长度 | 1.260" (32.00mm) | 材料（通用） | 聚酰胺 |
| 导线线规 | 28 | 高度（最大） | 0.866" (22.00mm) |
| 外壳颜色 | Gray | 安装类型 | Cable Mount |
| 安装样式 | DIN Rail | 排数 | 2 |
| 壳体材料 | Polyamide | 总长度 | 32 |
| 剥线长度（范围） | 8mm | 端子宽度 | 5.2mm |
| 端接排数 | 弹簧笼 | 端接样式 | Spring Cage |
| 触点数 | 2 | 位数 | 2 |
| 绝缘材料 - 材质 | Polyamide (PA), Nylon | 线规或范围 - AWG | 12-28 AWG |
| 线规或范围 - mm² | 0.08-4mm² | ||
产品信息
| 类型 | Feed-Thru | 连接器性别 | F |
| 产品特性 | Engagement Pin | 线路数量 | 2 |
| 层数 | 1 | ||
环境参数
| 工作温度 | +130°C | ||
相关型号
0824638
Phoenix Contact
Terminal Block Tools & Accessories UC-TMF 5 CUS UNICARD SHEETS LABEL TERM BLOCKS Terminal Block Tools & Accessories UC-TMF 5 CUS 1 sheet is 1 piece
3024423
Phoenix Contact
Terminal Block Tools & Accessories D-MZB 1.5 BU Connector Accessories End Cover END COVER FOR MOD TERM BLOCKS End cover for modular terminal blocks D-MZB 1,5 BU DINRailTerminalBlocksD-MZB1.5BU
0825025
Phoenix Contact
Terminal Block Tools & Accessories ZBF 5 CUS ZACK STRIP Terminal Block Tools & Accessories ZBF 5 CUS 1 strip is 1 piece Terminal Marker
0818153
Phoenix Contact
Unspecified Tools & Accessories UC-TMF 5 UNICARD 96 SECTION Connector Accessories Terminal Block Marker Polyamide White UNICARD SHEETS 1 ROLL=96 LABELS Phoenix Contact 0818153 Marker Card Terminal Block, Series: UC-TMF Terminal Block Tools & Accessories UC-TMF 5 UNICARD 96 SECTION Marker;TermBlk;UniCard;5.2mm;96labelspercard;white Phoenix Contact UC-TMF 系列 标记卡
0828744
Phoenix Contact
ターミナルブロック・ツールとアクセサリ UCT-TMF 5 TERM BLOCK MARKER 5.2MM WHITE Terminal Block Tools & Accessories UCT-TMF 5 Connector Accessories Terminal Block Marker Polycarbonate White UCT-TMF5
0808642
Phoenix Contact
Terminal Block Tools & Accessories ZBF 5 UNPRINTED Cable Accessories Zack Strip Polyamide White 10 SECTION ZACK MARKER STRIP Phoenix Contact 0808642 Marker Strip Terminal Block, Series: ZBF ZACK STRIP Zackstrip,flat,unprinted:10-section, Phoenix Contact ZBF 系列 标记条

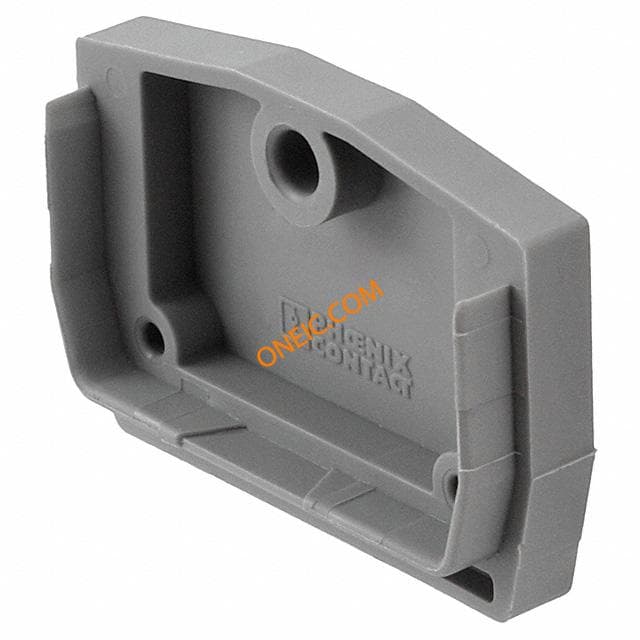

3024177
