3216079
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Misc Products CONN TERM BLOCK Feed-through modular terminal block UKK 5-TG BU DIN Rail Terminal Blocks UKK 5-TG BU UKK5-TGBU |
| 分类 |
商业参数
| 商标名 | CLIPLINE UK | 其他名称 | UKK 5-TG BU |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-2 | ||
电气参数
| 电流 - UL | 25A | UL电压 | 300V |
| 电流 - IEC | 26A | IEC电压 | 400V |
机械参数
| 颜色 | Gray | 剥线长度（范围） | 8mm |
| 端子宽度 | 6.2mm | 端接样式 | Screw |
| 位数 | 4 | 绝缘材料 - 材质 | Polyamide (PA), Nylon |
| 线规或范围 - AWG | 12-26 AWG | 线规或范围 - mm² | 0.2-4mm² |
产品信息
| 类型 | Disconnect, Feed Through | 系列 | UK |
| 断开类型 | Open | 层数 | 2 |
文档与媒体
相关型号
1204119
Phoenix Contact
Mounting Hardware NS 35/7.5 PERF. WH PRICED PER METER Din Rail 35mm DIN RAIL 35MMX7.5MM SLOTTED 2M NS 35/ 7,5 WH PERF 2000MM NS35/7.5PERF.WH
1007222
Phoenix Contact
Terminal Block Tools & Accessories SBS 6:UNBEDRUCKT Connector Accessories Marker Cards for Modular Terminal Blocks Straight White MARKING CARD UNPRINTED SIMPLEX MARKERCARDSFORTERMINALBLOCKSWHITE White Marker Card
1201015
Phoenix Contact
Mounting Hardware NS 32 UNPERFORATED Gprofile DIN Rail, Material Steel, Unperforated, Height 15mm, Width 32mm, Length 2m DIN RAIL 32X15MM UNSLOT STEEL 2M G-profileDINrail,Steel,unperforated,height15mm,width32mm,eachpc2MTR DIN 导轨 G型, NS32 无孔型, 2000mm x 32mm x 15mm
0824992
Phoenix Contact
Terminal Block Tools & Accessories ZB 6 CUS TERM BLOCK MARKING LABEL Terminal Block Tools & Accessories ZB 6 CUS 1 strip is 1 piece TERMINALBLOCKMARKING
0806602
Phoenix Contact
Mounting Hardware NS 35/15 - 2 METERS PRICED PER METER DIN RAIL 35MMX15MM SLOTTED 2M Din Rail 35mm DINrail35mmNS35/15PERFORATEDWH
1201442
Phoenix Contact
Terminal Block Tools & Accessories END BRACKET Connector Accessories End Clamp Polyamide Gray DINRAIL END BRACKET UNIVERSAL Phoenix Contact 1201442 End Clamp DIN Rail, Series: E/UK EndClamp;TermBlk;Gray;50.8mmLx9.5mmWx35.3mmH Holder; grey; Width:9.5mm; TS32,TS35; Ht:35.3mm; L:50.5mm Phoenix Contact E/UK 系列 端夹
1302338
Phoenix Contact
Terminal Block Tools & Accessories BRIDGE BAR ISOLATOR Bridge Bar Isolator, As Distance Piece ISOLATOR BRIDGE BAR USE W/301505 Bridge bar isolator, Color: gray BridgeBarIsolator;ForTermBlk;Gray

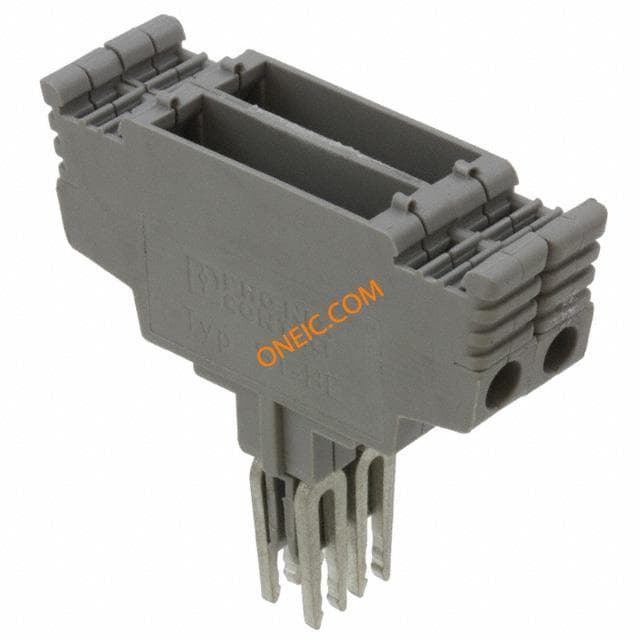

2802332
