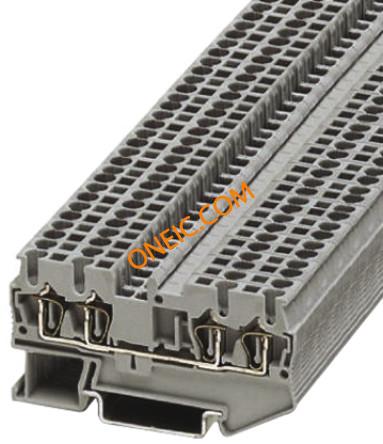

3213124

点击放大查看

3213124

制造商
Phoenix Contact GmbH & Co. KG
描述FEED-THROUGH MODULAR TERMINAL BLOCK CONNECTION METHOD SPRINGCAGECONNECTION CONN TERM BLOCK TB,Spring-cage,Width:3.5 mm,grey DIN Rail Terminal Blocks ST 1,5/S-QUATTRO ST15/S-QUATTRO Phoenix Contact ST 系列 灰色 弹簧笼 , 17.5A, 500 V
分类
连接器解决方案接线端子DIN导轨接线端子
对参数有疑问？问 AI 助手

商业参数

商标名CLIPLINE ST其他名称ST 1 5/S-QUATTRO
标准包装数量50工厂包装数量50

合规参数

RoHSLead free / RoHS Compliant欧盟RoHSCompliant
材料阻燃等级UL94 V-0

电气参数

电流 - UL10AUL电压300V
电流 - IEC17.5AIEC电压500V
额定电压500 V最大额定电流17.5A

机械参数

颜色Gray宽度3.5 mm
高度32 mm, 39.5 mm长度72 mm
导线线规28 → 16 AWG端接方式Spring Cage
安装类型NS 35/7.5, NS 35/15安装样式Spring Cage
剥线长度（范围）8mm端子宽度3.5mm
端接排数弹簧笼端接样式Push In, Spring
连接器颜色Grey触点数4
位数4绝缘材料 - 材质Polyamide (PA), Nylon
线规或范围 - AWG16-28 AWG线规或范围 - mm²0.08-1.5mm²

产品信息

类型Feed Through系列ST
叠层数单层层数1

文档与媒体

PDF 文档
3213124
