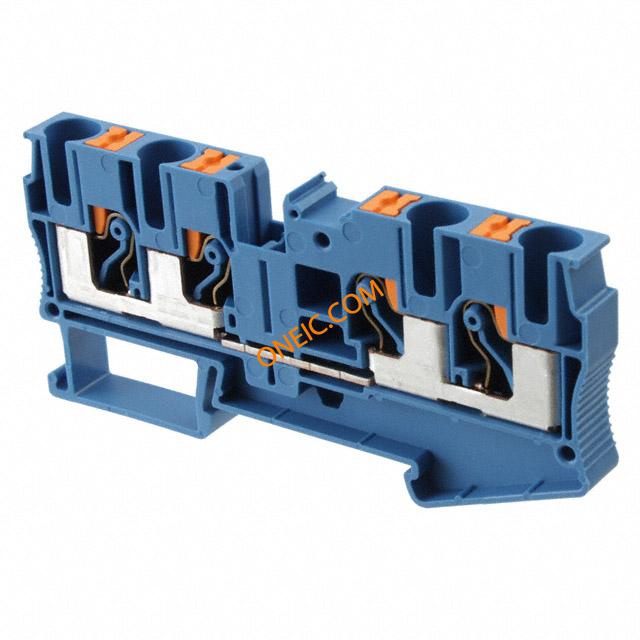

3212947

制造商	Phoenix Contact GmbH & Co. KG
描述	CONN TERM BLK FEED THRU 8.2MM DIN Rail Terminal Blocks PT 6-QUATTRO BU Conn Feed-Through Terminal Blocks 4 POS 41A PT6-QUATTROBU Feed-Through Terminal
分类	连接器解决方案接线端子DIN导轨接线端子

对参数有疑问？问 AI 助手

商业参数

商标名

CLIPLINE PT

标准包装数量

合规参数

RoHS

RoHS Compliant

材料阻燃等级

UL94 V-0

电气参数

电流 - UL	40A	UL电压	600V
电流 - IEC	41A	IEC电压	1000V
额定电压	1 kV	最大额定电流	41 A

机械参数

颜色	Blue	宽度	8.2 mm
高度	42.2 mm, 43.5 mm, 51 mm	长度	90.5 mm
安装类型	NS 35/7.5, NS 35/15	安装样式	DIN Rail
剥线长度（范围）	12mm	端子宽度	8.2mm
端接排数	推入式	端接样式	Push In, Spring
触点数	4	位数	4
绝缘材料 - 材质	Polyamide (PA), Nylon	线规或范围 - AWG	8-20 AWG
线规或范围 - mm²	0.5-10mm²

产品信息

类型	Feed Through	系列	PT
层数	1
