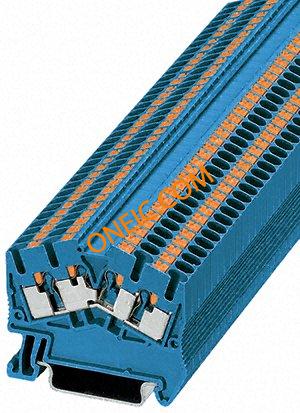

点击放大查看
3212002
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | DIN Rail Terminal Blocks PTS 2,5-QUATTRO BU Conn Feed-Through Modular Terminal Blocks F 4 POS 24A CONN TERM BLOCK Non-Fuse DIN Rail Terminal, 24A, 800V, Blue ,Push In Termination Conn;TermBlk;DINRail;Feed-Thru;Push-In;4Conn;26-12AWG;Blue;NS35/7.5,NS35/15 Phoenix Contact PT Clipline 系列 蓝色 馈通端子块 , 24A, 800 V |
| 分类 |
商业参数
| 商标名 | CLIPLINE PT | 其他名称 | PTS 2 5-QUATTRO BU |
| 产品类别 | DIN Rail Terminal Blocks | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 电流 - UL | 20A | UL电压 | 600V |
| 电流 - IEC | 24A | IEC电压 | 800V |
| 额定电压 | 800 V | 最大额定电流 | 24A |
| 最小输入电压 | 800V | ||
机械参数
| 颜色 | Blue | 深度 | 5.2 |
| 高度 | 50.5 | 导线线规 | 26 → 12 AWG |
| 端接方式 | Push In | 电缆材料 | 0.14 → 4mm² |
| 排数 | 4 | 壳体材料 | Polyamide |
| 总长度 | 49 | 剥线长度（范围） | 10mm |
| 端子宽度 | 5.2mm | 端接排数 | 推入式 |
| 端接样式 | Push In, Spring | 连接器颜色 | Blue |
| 触点数 | 4 | 位数 | 4 |
| 绝缘材料 - 材质 | Polyamide (PA), Nylon | 线规或范围 - AWG | 12-26 AWG |
| 线规或范围 - mm² | 0.14-4mm² | ||
产品信息
| 类型 | Feed-Through Modular Terminal Blocks | 连接器性别 | F |
| 系列 | PT | 叠层数 | 单层 |
| 层数 | 1 | ||
