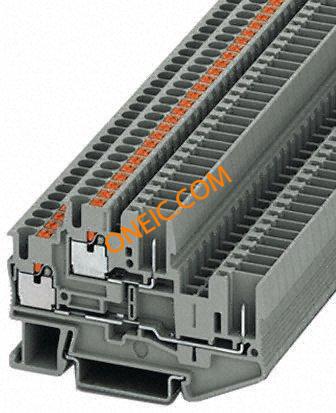

3210871
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | DIN Rail Terminal Blocks PTTB 2,5/2P Conn Feed-Through Modular Terminal Blocks F 4 POS 22A CONN TERM BLOCK FEED THRU 5.2MM Non-Fuse DIN Rail Terminal, 22A, 500V, Grey ,Plug In Termination PushInTechnologyFeedThroughModularTerminalBlock26-12AWG Phoenix Contact PITTB 系列 灰色 双层接线端子块 , 22A, 500 V |
| 分类 |
商业参数
| 商标名 | CLIPLINE PT | 产品类别 | DIN Rail Terminal Blocks |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 电流 - UL | 20A | UL电压 | 600V |
| 电流 - IEC | 22A | IEC电压 | 500V |
| 额定电压 | 500 V | 最大额定电流 | 22A |
| 最小输入电压 | 500V | ||
机械参数
| 颜色 | 灰色 | 深度 | 5.2 |
| 高度 | 55 | 长度 | 2.815" (71.50mm) |
| 导线线规 | 26 → 12 AWG | 端接方式 | Plug In |
| 高度（最大） | 2.165" (55.00mm) | 外壳颜色 | Gray |
| 安装类型 | DIN Rail | 电缆材料 | 0.14 → 4mm² |
| 接触镀层 | Tin | 安装样式 | DIN Rail |
| 排数 | 4 | 壳体材料 | Polyamide |
| 总长度 | 71.5 | 剥线长度（范围） | 10mm |
| 端子宽度 | 5.2mm | 端接排数 | 插入式 |
| 端接样式 | Plug Receptacles, Push In, Spring | 连接器颜色 | Grey |
| 触点数 | 4 | 位数 | 4 |
| 绝缘材料 - 材质 | Polyamide (PA), Nylon | 线规或范围 - AWG | 12-24 AWG |
| 线规或范围 - mm² | 0.14-4mm² | ||
产品信息
| 类型 | Feed-Through Modular Terminal Blocks | 连接器性别 | F |
| 系列 | PITTB | 叠层数 | 双层 |
| 层数 | 2 | ||
