点击放大查看

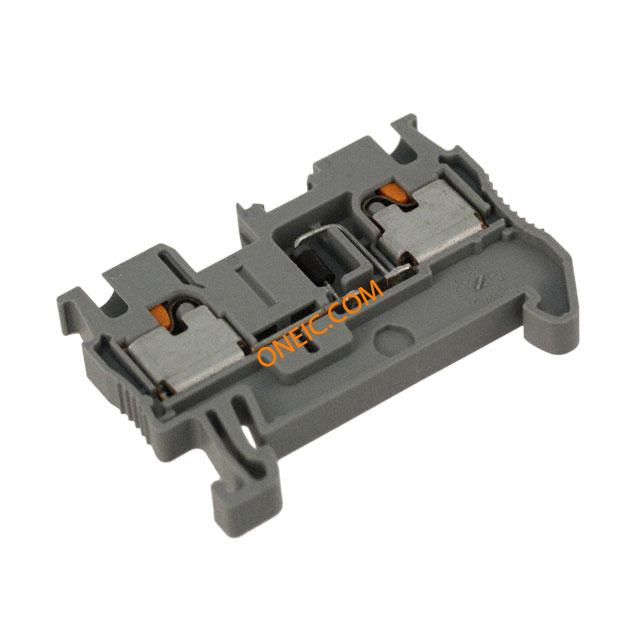

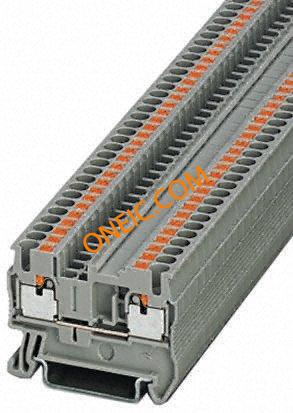

3210224
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | DIN Rail Terminal Blocks PT 2.5-DIO/L-R Conn Feed-Through Modular Terminal Blocks F 2 POS 0.5A CONN TERM BLOCK W/DIODE 5.2MM Non-Fuse DIN Rail Terminal, 0.5A, 800V, Grey ,Push In Termination PushInTechnologyFeedThroughModularTerminalBlock26-12AWG Phoenix Contact PT Clipline 系列 灰色 多层接线端子块 , 500mA, 800 V |
| 分类 |
商业参数
| 商标名 | CLIPLINE PT | 产品类别 | DIN Rail Terminal Blocks |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 电流 - UL | 20A | UL电压 | 300V |
| 电流 - IEC | 0.5A | IEC电压 | 800V |
| 额定电压 | 800 V | 最大额定电流 | 0.5A |
| 最小输入电压 | 800V | ||
机械参数
| 颜色 | Gray | 深度 | 5.2 |
| 高度 | 44 | 导线线规 | 26 → 12 AWG |
| 端接方式 | Push In | 电缆材料 | 0.14 → 4mm² |
| 安装样式 | DIN Rail | 排数 | 2 |
| 壳体材料 | Polyamide | 总长度 | 48.5 |
| 剥线长度（范围） | 10mm | 端子宽度 | 5.2mm |
| 端接排数 | 推入式 | 端接样式 | Push In, Spring |
| 连接器颜色 | Grey | 触点数 | 2 |
| 位数 | 2 | 绝缘材料 - 材质 | Polyamide (PA), Nylon |
| 线规或范围 - AWG | 12-26 AWG | 线规或范围 - mm² | 0.14-4mm² |
产品信息
| 类型 | Feed-Through Modular Terminal Blocks | 连接器性别 | F |
| 系列 | PT | 产品特性 | Diode |
| 叠层数 | 单层 | 层数 | 1 |
