点击放大查看

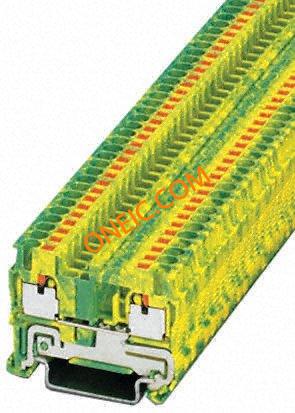

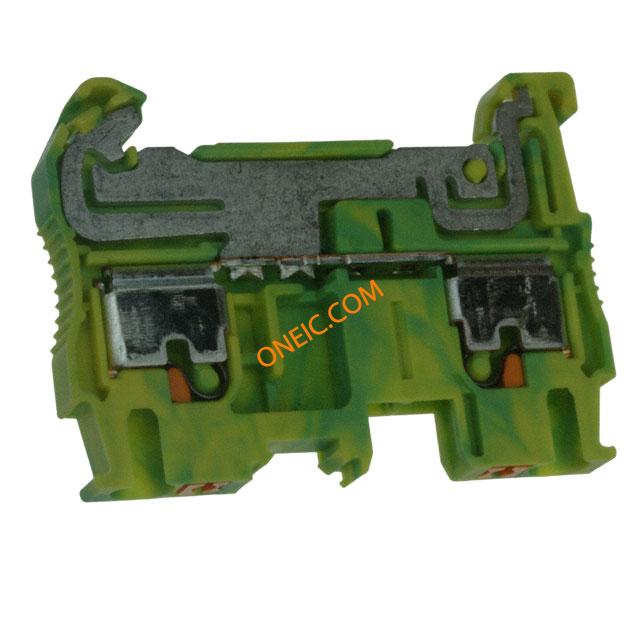

3209536
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | DIN Rail Terminal Blocks PT 2.5-PE Conn Ground Modular Terminal Blocks F 2 POS CONN TERM BLOCK W/GROUND 5.2MM Non-Fuse DIN Rail Terminal, Green/Yellow ,Push In Termination Conn;TermBlk;DINRail;Ground;Push-InConn;26-12AWG;Green-Yellow;5.2mmW Phoenix Contact PT 系列 绿色/黄色 接地端子块 |
| 分类 |
商业参数
| 商标名 | CLIPLINE PT | 产品类别 | DIN Rail Terminal Blocks |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
机械参数
| 颜色 | Green, Yellow | 深度 | 5.2 |
| 宽度 | 5.2 mm | 高度 | 36.5 mm, 44 mm |
| 长度 | 48.5 mm | 导线线规 | 26 → 12 AWG |
| 端接方式 | Push In | 安装类型 | NS 35/7.5, NS 35/15 |
| 电缆材料 | 0.14 → 4mm² | 安装样式 | DIN Rail |
| 排数 | 2 | 壳体材料 | Polyamide |
| 总长度 | 48.5 | 剥线长度（范围） | 10mm |
| 端子宽度 | 5.2mm | 端接排数 | 推入式 |
| 端接样式 | Push In, Spring | 连接器颜色 | Green/Yellow |
| 触点数 | 2 | 位数 | 2 |
| 绝缘材料 - 材质 | Polyamide (PA), Nylon | 线规或范围 - AWG | 12-26 AWG |
| 线规或范围 - mm² | 0.14-4mm² | ||
产品信息
| 类型 | Ground Modular Terminal Blocks | 连接器性别 | F |
| 系列 | PT | 叠层数 | 单层 |
| 层数 | 1 | ||
文档与媒体
相关型号
1204517
Phoenix Contact
Screwdrivers, Nut Drivers & Socket Drivers SZF 1-0 6X3 5 Digital Input Module SCREWDRIVER SLOT 0.6X3.5MM 7.13" Bladed screwdriver SZF 1-0,6X3,5 Screwdriver, blade: 0.6 x 3.5 x 100 mm, length 180 mm Actuationtool,forSTterminalblocks,size:0.6x3.5x100mm
3030226
Phoenix Contact
Terminal Block Tools & Accessories FBS 20-5 20 P0S BRIDGE Conn Jumper PL 20 POS ST CROSS CONN BRIDGE TRM BLK 20POS Phoenix Contact 3030226 Plug In Bridge Terminal Block, Series: FBS Cross connector/jumper for modular terminal block FBS 20-5 Bridge;Plug-InBridge;20;Red;Crossconnectionsintheterminalcenter. Phoenix Contact FBS 系列 20 极跳片
3030925
Phoenix Contact
Terminal Block Tools & Accessories PAI-4 TEST ADAPTER Conn Test Adapter PL/PL 1/1 POS ST 1 Port TEST ADAPTER TERM BLOCK GRAY Test apaptor for 4mm test plug TEST ADAPTOR TESTADAPTER,COLOR:GRAY Phoenix Contact 灰色 测试连接器适配器, 公
3030174
Phoenix Contact
Terminal Block Tools & Accessories FBS 3-5 Conn Jumper PL 3 POS ST CROSS CONN BRIDGE TERM BLK 3POS Phoenix Contact 3030174 Jumper Bridge;Plug-InBridge;3;Red;Crossconnectionsintheterminalcenter. Comb bridge; ways:3; Width:5mm Phoenix Contact 3 极跳片
3030213
Phoenix Contact
Terminal Block Tools & Accessories FBS 10-5 Conn Jumper PL 10 POS ST CROSS CONN BRIDGE TRM BLK 10POS Phoenix Contact 3030213 Plug In Bridge Terminal Block, Series: FBS Bridge;Plug-InBridge;10;Red;Crossconnectionsintheterminalcenter. Comb bridge; ways:10; Width:5mm Phoenix Contact FBS 系列 10 极跳片
3030161
Phoenix Contact
Terminal Block Tools & Accessories FBS 2-5 Conn Jumper PL 2 POS ST CROSS CONN BRIDGE TERM BLK 2POS Phoenix Contact 3030161 Jumper FBS 2-5 BRIDGE, PLUG IN Bridge;Plug-InBridge;2;Red;Crossconnectionsintheterminalcenter. Comb bridge; ways:2; Width:5mm Phoenix Contact 2 极跳片
3030417
Phoenix Contact
Terminal Block Tools & Accessories D-ST 2.5 Connector Accessories End Cover Gray END COVER TERM BLOCK Phoenix Contact 3030417 Cover Terminal Block, Series: D-ST COVER EndCover;TermBlk;Gray;48.6mmL;2.2mmW;29.1mmH End piece; Application: ST2.5; polyamide Phoenix Contact D-ST 系列 端板
3030190
Phoenix Contact
Terminal Block Tools & Accessories FBS 5-5 5 POS BRIDGE Conn Jumper PL 5 POS ST CROSS CONN BRIDGE TERM BLK 5POS Phoenix Contact 3030190 Jumper BRIDGE, PLUG IN Bridge;Plug-InBridge;5;Red;Crossconnectionsintheterminalcenter. Phoenix Contact 5 极跳片

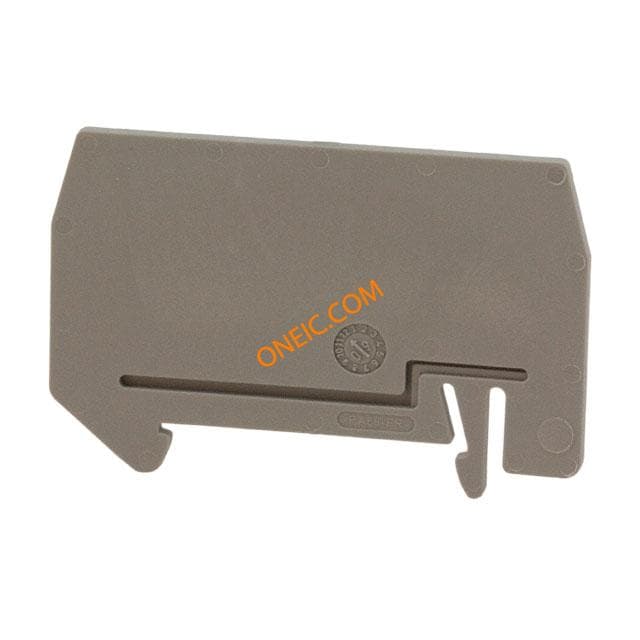

3030721
