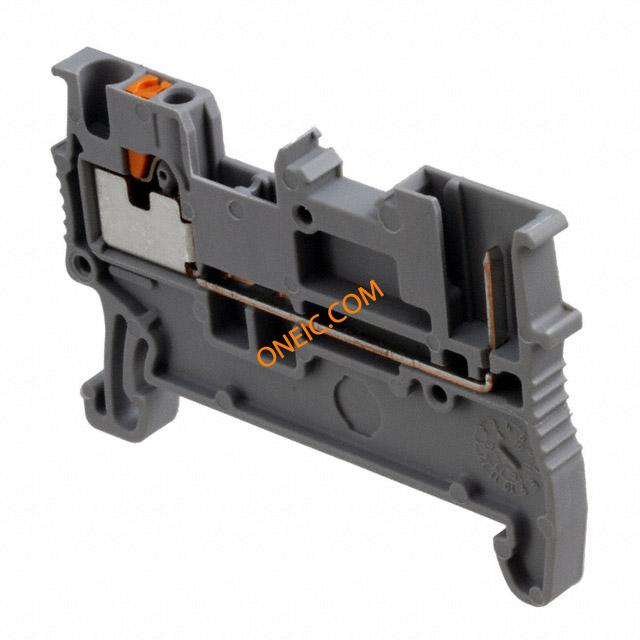

3208582
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | DIN Rail Terminal Blocks PT 1,5/S/1P Conn Feed-Through Terminal Blocks 2 POS 17.5A CONN TERM BLOCK 26-16AWG Non-Fuse DIN Rail Terminal, 17.5A, 500V, Grey ,Plug In Termination Conn;TermBlk;DIN-Rail;1Lvl;Feed-Thru;Push-inPlug;2Conts;3.5mmSpng;26-16AWG;Gray |
| 分类 |
商业参数
| 商标名 | CLIPLINE PT | 产品类别 | DIN Rail Terminal Blocks |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 电流 - UL | 5A | UL电压 | 600V |
| 电流 - IEC | 17.5A | IEC电压 | 500V |
| 额定电压 | 500 V | 最大额定电流 | 17.5A |
机械参数
| 颜色 | Gray | 宽度 | 3.5 mm |
| 高度 | 32 mm, 39.5 mm | 长度 | 1.81" (45.97mm) |
| 导线线规 | 26 → 16 AWG | 端接方式 | Plug In |
| 高度（最大） | 1.555" (39.50mm) | 外壳颜色 | Gray |
| 安装类型 | DIN Rail | 安装样式 | DIN Rail |
| 剥线长度（范围） | 8mm | 端子宽度 | 3.5mm |
| 端接样式 | Plug Receptacles, Push In, Spring | 连接器颜色 | Grey |
| 触点数 | 1 | 位数 | 2 |
| 绝缘材料 - 材质 | Polyamide (PA), Nylon | 线规或范围 - AWG | 14-26 AWG |
| 线规或范围 - mm² | 0.14-1.5mm² | ||
产品信息
| 类型 | Plug Connection | 系列 | PT |
| 层数 | 1 | ||
文档与媒体
相关型号
1204119
Phoenix Contact
Mounting Hardware NS 35/7.5 PERF. WH PRICED PER METER Din Rail 35mm DIN RAIL 35MMX7.5MM SLOTTED 2M NS 35/ 7,5 WH PERF 2000MM NS35/7.5PERF.WH
0809298
Phoenix Contact
Terminal Block Tools & Accessories GBS-ZB/26X6 GROUP MARKING LABEL 29MM Group Marker Label GBS-ZB/26x6 Labels Plastic Label Polyamide/Polycarbonate Gray Phoenix Contact GBS 系列 端子标记
0806602
Phoenix Contact
Mounting Hardware NS 35/15 - 2 METERS PRICED PER METER DIN RAIL 35MMX15MM SLOTTED 2M Din Rail 35mm DINrail35mmNS35/15PERFORATEDWH
3208142
Phoenix Contact
ターミナルブロック・ツールとアクセサリ D-PT 1,5/S END COVER, LENGTH: 45 MM, WIDTH: 2.2 MM, HEIGHT: 24.3 MM, COLOR: GRAY CONN COVER 45X2.2X24.3MM GRAY Phoenix Contact 3208142 Cover Terminal Block, Series: D-PT Terminal Block Tools & Accessories D-PT 1,5/S Connector Accessories End Cover Polyamide Gray EndCover;TermBlk;Gray;45mmL;2.2mmW;24.3mmH Phoenix Contact D-PT 系列 端板
1201442
Phoenix Contact
Terminal Block Tools & Accessories END BRACKET Connector Accessories End Clamp Polyamide Gray DINRAIL END BRACKET UNIVERSAL Phoenix Contact 1201442 End Clamp DIN Rail, Series: E/UK EndClamp;TermBlk;Gray;50.8mmLx9.5mmWx35.3mmH Holder; grey; Width:9.5mm; TS32,TS35; Ht:35.3mm; L:50.5mm Phoenix Contact E/UK 系列 端夹
0201744
Phoenix Contact
Terminal Block Tools & Accessories MPS-MT Test Plug, Consisting Of Metal Part For 2.3mm Diameter Socket Hole TERM BLK TEST PLUG W/O SLEEVE Testplugs Test Plug
3022218
Phoenix Contact
Terminal Block Tools & Accessories END BRACKET Connector Accessories Snap-on End Bracket Polyamide Gray END BRACKET FOR 35 MM DIN RAIL Phoenix Contact 3022218 End Bracket Terminal Block, Series: CLIPFIX End bracket CLIPFIX 35 EndBracket;TermBlk;SnapOn;57mmL;9.5mmW
1201413
Phoenix Contact
Terminal Block Tools & Accessories E/UK 1 Connector Accessories End Brackets For Supporting The Ends Of Double Level and Three Level Terminal Blocks Polyamide Gray DINRAIL END BRACKET UNIVERSAL Assembly adapters E/UK 1 Connector Accessories End Brackets For Supporting The Ends Of Double Level and Three Level Terminal Blocks Pol EndBracket;TermBlk;DINRail;10mm;Gray DIN Rail Terminal Blocks End Clamp E/UK1

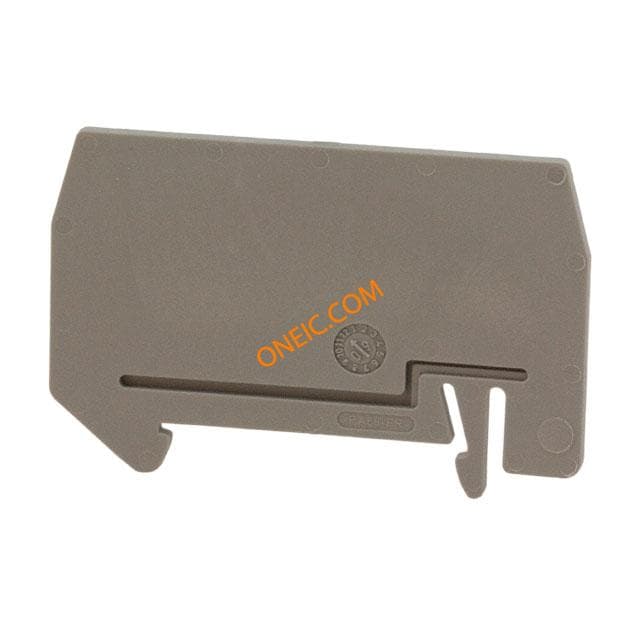

3030721
