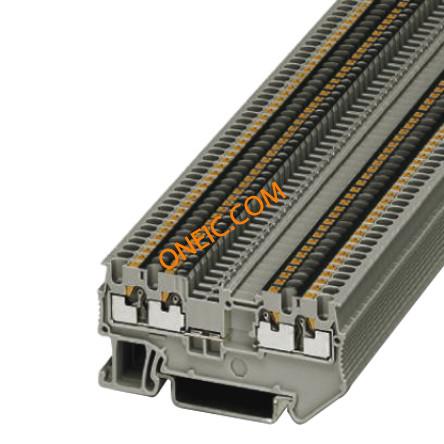

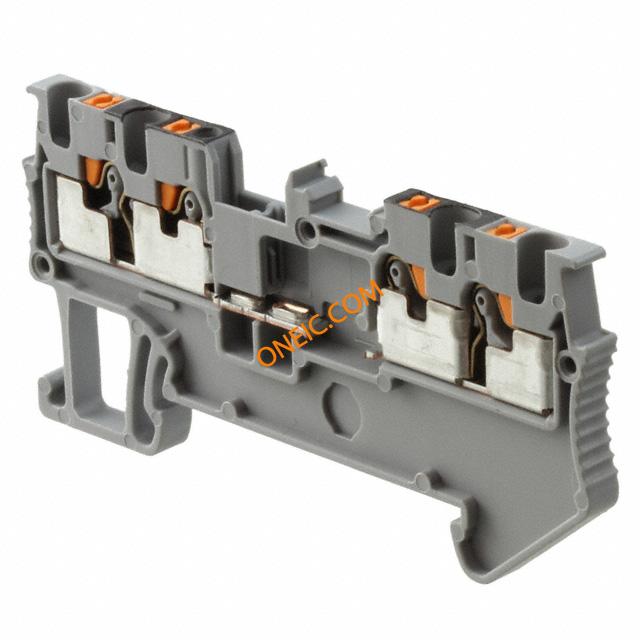

点击放大查看
3208359
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | DIN Rail Terminal Blocks PT 1,5/S-QUATTRO-U PIT 1,5/S-QUATTRO-U CONN FEED-THRU TERM BLOCK 4POS Non-Fuse DIN Rail Terminal, 15A, 500V, Grey ,Push In Termination PT15/S-QUATTRO-U Phoenix Contact PT Clipline 系列 灰色 馈通端子块 , 15A, 500 V |
| 分类 |
商业参数
| 产品 | DIN Rail Terminal Blocks | 商标名 | CLIPLINE PT |
| 标准包装规格 | 50 | 产品类别 | DIN Rail Terminal Blocks |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 电流 - UL | 15A | UL电压 | 300V |
| 电流 - IEC | 15A | IEC电压 | 500V |
| 额定电压 | 500 V | 最大额定电流 | 15 A |
机械参数
| 颜色 | Gray | 宽度 | 3.5 mm |
| 高度 | 32 mm, 39.5 mm | 长度 | 63.2 mm |
| 导线线规 | 26 | 端接方式 | Push In |
| 安装类型 | NS 35/7.5, NS 35/15 | 安装样式 | DIN Rail |
| 剥线长度（范围） | 8mm | 端子宽度 | 3.5mm |
| 端接排数 | 推入式 | 端接样式 | Push-In |
| 连接器颜色 | Grey | 触点数 | 4 |
| 位数 | 4 | 绝缘材料 - 材质 | Polyamide (PA), Nylon |
| 线规或范围 - AWG | 26-16 | 线规或范围 - mm² | 14 |
产品信息
| 类型 | Modular Terminal Block | 系列 | PT |
| 叠层数 | 单层 | 层数 | 1 |
环境参数
| 机械寿命 | New At Mouser | 工作温度 | +130°C |
