3205019
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | DIN Rail Terminal Blocks QTC 1.5 IDC BLOCK Conn Terminal Block F 2 POS ST 17.5A CONN TERM BLK MOD 24-16AWG T/H Non-Fuse DIN Rail Terminal, 17.5A, 800V, Grey ,Quick Connect Termination Conn;TermBlk;DINRail;FeedThru;QuickConn;2;24-16AWG;Gray;5.2mmW Phoenix Contact QTC Clipline 系列 灰色 馈通端子块 , 17.5A, 800 V |
| 分类 |
商业参数
| 商标名 | CLIPLINE QTC | 产品类别 | DIN Rail Terminal Blocks |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 认证机构 | cULus | 材料阻燃等级 | UL94 V-0 |
电气参数
| 电流 - UL | 10A | UL电压 | 600V |
| 电流 - IEC | 17.5A | IEC电压 | 800V |
| 额定电压 | 800 V | 极数 | 2Poles |
| 最大额定电流 | 17.5A | 最小输入电压 | 800V |
机械参数
| 颜色 | Gray | 深度 | 5.2 |
| 宽度 | 5.2 mm | 高度 | 39.3 mm |
| 长度 | 58.8 mm | 重量 | 0.328753 oz |
| 导线线规 | 24 → 16 AWG | 端接方式 | Quick Connect |
| 安装类型 | Straight | 电缆材料 | 0.25 → 1.5mm² |
| 排数 | 2 | 壳体材料 | Polyamide |
| 总长度 | 46.8 | 主要材料 | DINRail |
| 端子宽度 | 5.2mm | 端接排数 | 快速连接 |
| 插针孔直径 | 5.2mm | 端接样式 | IDC |
| 连接器颜色 | Grey | 触点数 | 2 |
| 位数 | 2 | 绝缘材料 - 材质 | Polyamide (PA), Nylon |
| 线规或范围 - AWG | 16-24 AWG | 线规或范围 - mm² | 0.25-1.5mm² |
产品信息
| 类型 | Terminal Block | 连接器性别 | F |
| 系列 | QTC | 叠层数 | 单层 |
| 层数 | 1 | 基础产品编号 | QTC1.5 |
文档与媒体
相关型号
1204517
Phoenix Contact
Screwdrivers, Nut Drivers & Socket Drivers SZF 1-0 6X3 5 Digital Input Module SCREWDRIVER SLOT 0.6X3.5MM 7.13" Bladed screwdriver SZF 1-0,6X3,5 Screwdriver, blade: 0.6 x 3.5 x 100 mm, length 180 mm Actuationtool,forSTterminalblocks,size:0.6x3.5x100mm
1201798
Phoenix Contact
取り付け用金具類 PRICED by the METER 2 METER DIN RAIL DIN Rail, Material Steel, Un-Perforated, 2.3mm Thick, Height 15mm, Width 35mm, Length 2m DIN RAIL 35X15MM UNSLOT STEEL 2M Mounting Hardware PRICED by the METER 2 METER DIN RAIL Din-Rail,NS35/15-2,3UNPERF2000MM,1=2meters CustomcutDIN-Rail
3030226
Phoenix Contact
Terminal Block Tools & Accessories FBS 20-5 20 P0S BRIDGE Conn Jumper PL 20 POS ST CROSS CONN BRIDGE TRM BLK 20POS Phoenix Contact 3030226 Plug In Bridge Terminal Block, Series: FBS Cross connector/jumper for modular terminal block FBS 20-5 Bridge;Plug-InBridge;20;Red;Crossconnectionsintheterminalcenter. Phoenix Contact FBS 系列 20 极跳片
1201442
Phoenix Contact
Terminal Block Tools & Accessories END BRACKET Connector Accessories End Clamp Polyamide Gray DINRAIL END BRACKET UNIVERSAL Phoenix Contact 1201442 End Clamp DIN Rail, Series: E/UK EndClamp;TermBlk;Gray;50.8mmLx9.5mmWx35.3mmH Holder; grey; Width:9.5mm; TS32,TS35; Ht:35.3mm; L:50.5mm Phoenix Contact E/UK 系列 端夹
3030925
Phoenix Contact
Terminal Block Tools & Accessories PAI-4 TEST ADAPTER Conn Test Adapter PL/PL 1/1 POS ST 1 Port TEST ADAPTER TERM BLOCK GRAY Test apaptor for 4mm test plug TEST ADAPTOR TESTADAPTER,COLOR:GRAY Phoenix Contact 灰色 测试连接器适配器, 公

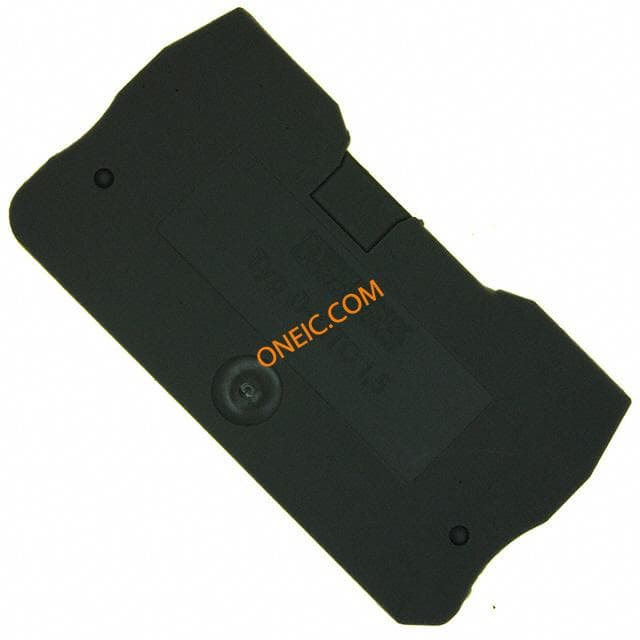

3205161
Phoenix Contact
Terminal Block Tools & Accessories D-QTC 1.5 Connector Accessories End Cover Gray CONN TERM BLK MOD END COVER GRAY Phoenix Contact 3205161 Cover Terminal Block, Series: D-QTC EndCover;TermBlk;Gray;58.8mmL;2.2mmW;39.3mmH;D-QTC1.5 Phoenix Contact CLIPLINE 系列 端板
3030174
Phoenix Contact
Terminal Block Tools & Accessories FBS 3-5 Conn Jumper PL 3 POS ST CROSS CONN BRIDGE TERM BLK 3POS Phoenix Contact 3030174 Jumper Bridge;Plug-InBridge;3;Red;Crossconnectionsintheterminalcenter. Comb bridge; ways:3; Width:5mm Phoenix Contact 3 极跳片
3030213
Phoenix Contact
Terminal Block Tools & Accessories FBS 10-5 Conn Jumper PL 10 POS ST CROSS CONN BRIDGE TRM BLK 10POS Phoenix Contact 3030213 Plug In Bridge Terminal Block, Series: FBS Bridge;Plug-InBridge;10;Red;Crossconnectionsintheterminalcenter. Comb bridge; ways:10; Width:5mm Phoenix Contact FBS 系列 10 极跳片

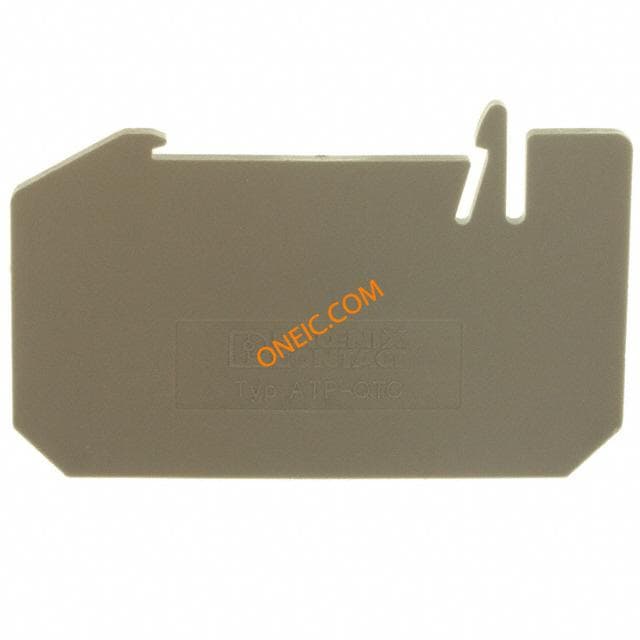

3206209
