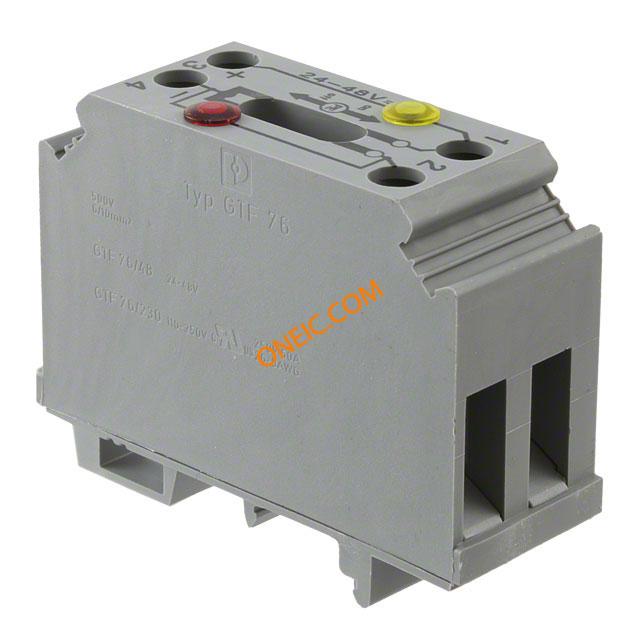

点击放大查看
3121012
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | DIN Rail Terminal Blocks GTF 76/230 Misc Products GROUND DISC TERM BLOCK Disconnect and test disconnect terminal block GTF 76/230 GTF76/230 Phoenix Contact GTF 系列 灰色 断开接线排 , 41A, 110 V |
| 分类 |
商业参数
| 产品 | DIN Rail Terminal Blocks | 交货时间 | 20 Days |
| 子类别 | Misc Products | 产品类别 | DIN Rail Terminal Blocks |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | No | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 电流 - UL | 50A | UL电压 | 250V |
| 电流 - IEC | 57A | IEC电压 | 110V |
| 额定电压 | 110 V | 最大额定电流 | 57 A |
机械参数
| 颜色 | Gray | 宽度 | 22.5 mm |
| 高度 | 54 mm | 长度 | 64.5 mm |
| 重量 | 2.166527 oz | 导线线规 | 20 |
| 高度（最大） | 2.421" (61.50mm) | 外壳颜色 | Gray |
| 安装类型 | DIN Rail | 安装样式 | DIN Rail |
| 剥线长度（范围） | 12mm | 端子宽度 | 22.5mm |
| 端接排数 | 螺钉 | 端接样式 | Screw |
| 触点数 | 2 | 位数 | 2 |
| 绝缘材料 - 材质 | Polyamide (PA), Nylon | 线规或范围 - AWG | 20-8 |
| 线规或范围 - mm² | 8 | ||
产品信息
| 类型 | Wire to Wire | 系列 | GTF |
| 产品特性 | Indicators | 行业别名 | GTF 76/230 |
| 叠层数 | 单层 | 层数 | 1 |
