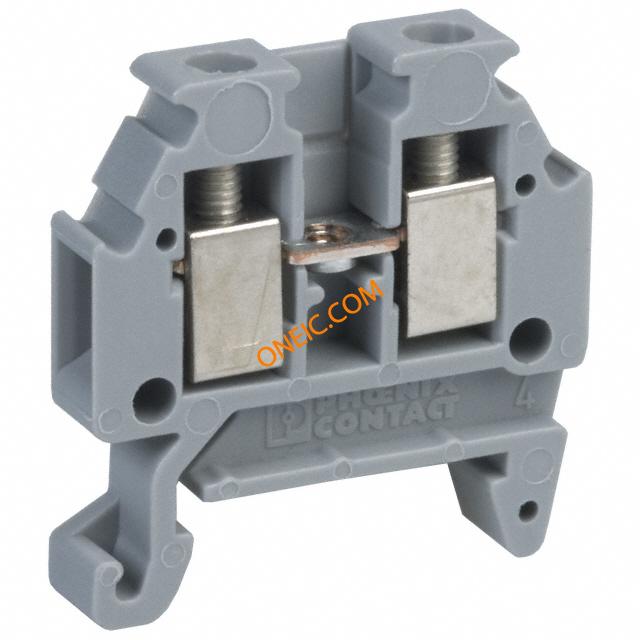

3100305
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | DIN Rail Terminal Blocks 4.2mm MINI BLOCK MT 1.5 GRAY 4.2mm Conn Modular Terminal Blocks F 2 POS Screw ST 17.5A CONN TERM BLK FEED THRU 4.2MM Non-Fuse DIN Rail Terminal, 17.5A, 400V, Grey ,Screw Down Termination TERMINAL BLOCK, DIN, GREY Conn;TermBlk;Screw;1;2;30-14;Gray;15A;300V;4kV;M2;0.22Nm(Min.);PA Phoenix Contact MT 系列 灰色 标准 DIN 导轨端子 , 17.5A, 400 V |
| 分类 |
商业参数
| 产品 | DIN Rail Terminal Blocks | 产品类别 | DIN Rail Terminal Blocks |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85369010 |
| 认证机构 | UL,CSA | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 电流 - UL | 15A | UL电压 | 300V |
| 电流 - IEC | 17.5A | IEC电压 | 400V |
| 额定电压 | 400 V | 极数 | :1 |
| 导体绞线 | :1.5mm² | 工作电压 | :400V |
| 最大额定电流 | 17.5 A | 最小输入电压 | 400V |
| 保护电压（VP）（2416） | 4kV | ||
机械参数
| 颜色 | Gray | 深度 | 4.2 |
| 间距 | :4.2mm | 宽度 | 4.2 mm |
| 长度 | 22 mm | 重量 | 0.081694 oz |
| 导线线规 | 26 | 端接方式 | Screw |
| 安装类型 | Straight | 端子类型 | :Screw |
| 连接器类型 | :Terminal Block, DIN Rail | 接触镀层 | :- |
| 安装样式 | DIN Rail | 排数 | 2 |
| 触头材料 | :- | 壳体材料 | Polyamide |
| 总长度 | 22 | 主要材料 | DINRail |
| 尺寸/外形 | 22mmLx4.2mmW | 剥线长度（范围） | 6mm |
| 端子宽度 | 4.2mm | 插针孔直径 | 4.2mm |
| 端接样式 | Screw | 连接器颜色 | Grey |
| 触点数 | 2 | 交叉孔直径 | 0.14to1.5mm^2 |
| 位数 | 2 | 绝缘材料 - 材质 | Polyamide (PA), Nylon |
| 螺纹/螺钉/孔尺寸 | M2 | 线规或范围 - AWG | 26-16 |
| 线规或范围 - mm² | 16 | 第一连接器安装类型 | :DIN Rail |
| 额定扭矩（oz-in / mNm） | 0.22Nm(Min.) | ||
产品信息
| 类型 | Wire to Wire | 连接器性别 | F |
| 系列 | MT | 层数 | 1 |
| 基础产品编号 | MT1,5 | 兼容传感器最大尺寸 | :1.5mm² |
文档与媒体
相关型号
1205037
Phoenix Contact
Screwdrivers, Nut Drivers & Socket Drivers SM. SCREWDRIVER Hardware Tools, ScrewDriver, Bladed, Matches All Screw Terminal Blocks Up To 1.5mm Sqaure SCREWDRIVER SLOT 0.4X2.5MM 6.34" Tool, Driver ScrewDriver;160mm;0.4mm;2.5mm;80mm;30g
1401637
Phoenix Contact
ターミナルブロック・ツールとアクセサリ E/MBK END BRACKET Connector Accessories End Clamp Straight Polyamide Gray TERMINAL BLOCK END BRACKET End bracket E/MBK Terminal Block Tools & Accessories E/MBK END BRACKET Mn35 Digital Multimeter Ac/Dc Volts, Dc Amps, Resistance, Temp EndClamp;TermBlk;Gray;22mmLx6.2mmWx11.4mmH Phoenix Contact E/MBK 系列 端夹
0803579
Phoenix Contact
Terminal Block Tools & Accessories 4.2mm 10x10 STRIPS CONN ACC MARKER STRIP UNPRINTED Phoenix Contact 0803579 Marker Card Terminal Block, Series: ZBFM Connector Accessories Flat Zack Marker Sheet Polyamide White Zackmarkersheet,flat,unprinted:100-section,10strips Phoenix Contact ZBFM 系列 标记卡
3001624
Phoenix Contact
Terminal Block Tools & Accessories 10POS. FIXED BRIDGE Conn Jumper M 10 POS ST CONN TERM BLK FIXED BRIDGE Phoenix Contact 3001624 Fixed Bridge Terminal Block, Series: FBRN CONNECTION BAR, FBRN-10-4N FixedBridgeBar;TermBlk;Universal;10;Silver Phoenix Contact FBRN 系列 固定桥接
0800268
Phoenix Contact
Terminal Block Tools & Accessories ZBFM 4/WH CONN ACC MARKER STRIP PREPRINT Zack Strip, Flat, 100-Section, Labeled Horizontally With Consecutive Numbers From 1-100, For All Terminal Blocks, Pitch 4.2mm, Color White
3100321
Phoenix Contact
Terminal Block Tools & Accessories END COVER Connector Accessories End Cover Straight Gray CONN TERM BLK END COVER Phoenix Contact 3100321 Cover Terminal Block, Series: D-MT END COVER, D-MT 1.5 EndCover;TermBlk;Gray;22mmL;1mmW Phoenix Contact D-MT 系列 端板
1421659
Phoenix Contact
Terminal Block Tools & Accessories END BRACKET FOR NS15 Connector Accessories End Clamp Polyamide Gray CONN TERM BLK END BRACKET 5.2MM Phoenix Contact 1421659 End Clamp Terminal Block, Series: E/MK EndClamp;TermBlk;Gray;21.2mmL;6mmW;18mmH

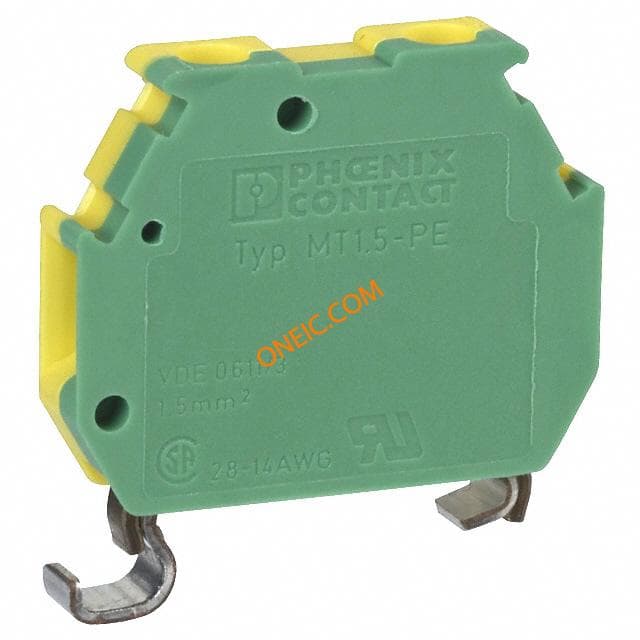

3100318
