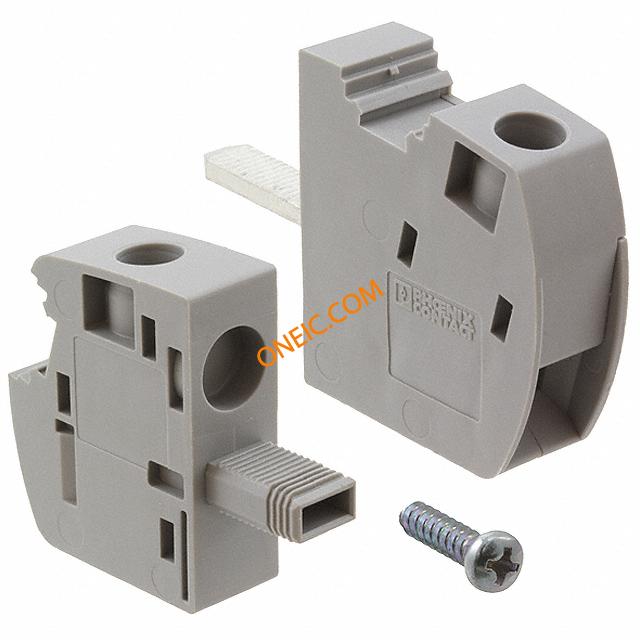

3073322
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Fixed Terminal Blocks UW 10 Conn Feed-Through Modular Terminal Blocks 2 POS Screw Wall Mount 76A FEED TRHOUGH TERM BLOCK UW10 Phoenix Contact 2 路 母 灰色, 螺钉端接 |
| 分类 |
商业参数
| 产品 | Fixed Terminal Blocks | 商标名 | COMBICON Power |
| 产品类别 | Fixed Terminal Blocks | 标准包装数量 | 1 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 电流 - UL | 65A | UL电压 | 600V |
| 额定电压 | 500 V | 最大额定电流 | 76 A |
机械参数
| 颜色 | Gray | 宽度 | 10.1 mm |
| 高度 | 31 mm | 长度 | 52.5 mm |
| 材料（通用） | 聚酰胺 | 导线线规 | 20 |
| 端接方式 | Screw | 安装类型 | Vertical |
| 连接器类型 | 母座 | 安装样式 | Through Hole |
| 排数 | 1 | 面板厚度 | 0.039 ~ 0.158" (1.0 ~ 4.0mm) |
| 面板安装类型 | 2 Piece | 端接排数 | 螺钉 |
| 端接样式 | Screw | 触点数 | 2 |
| 线规或范围 - mm² | 6 | 后面板接线方式 | Bolt/Screw Clamp - Wire Entry 90° to Panel |
| 前面板接线方式 | Bolt/Screw Clamp - Wire Entry 90° to Panel | ||
产品信息
| 类型 | Feed-Through Terminal Block | 层数 | 1 |
| 每层位数 | 2 | ||
