3042094
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Pluggable Terminal Blocks ST 2.5/2P-BU Conn Spring Cage F 2 POS 24A FEED THROUGH TERM BLOCK 28-12AWG Pluggable spring-cage modular terminal block ST 2,5/2P BU ST25/2PBU |
| 分类 |
商业参数
| 产品 | Pluggable Terminal Blocks | 商标名 | CLIPLINE ST |
| 产品类别 | Pluggable Terminal Blocks | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 电流 - UL | 20A | UL电压 | 600V |
| 电流 - IEC | 24A | IEC电压 | 500V |
| 额定电压 | 500 V | 最大额定电流 | 24 A |
| 最小输入电压 | 500V | ||
机械参数
| 颜色 | Blue | 宽度 | 5.2 mm |
| 高度 | 61.5 | 长度 | 1.917" (48.70mm) |
| 重量 | 0.183425 oz | 导线线规 | 28 |
| 高度（最大） | 1.732" (44.00mm) | 外壳颜色 | Blue |
| 安装类型 | DIN Rail | 排数 | 2 |
| 壳体材料 | Polyamide | 总长度 | 53.5 |
| 剥线长度（范围） | 10mm | 端子宽度 | 5.2mm |
| 端接样式 | Plug Receptacles | 触点数 | 2 |
| 位数 | 2 | 绝缘材料 - 材质 | Polyamide (PA), Nylon |
| 线规或范围 - AWG | 12-28 AWG | 线规或范围 - mm² | 0.08-4mm² |
产品信息
| 类型 | Spring Cage | 连接器性别 | F |
| 系列 | ST | 层数 | 1 |
文档与媒体
相关型号
1204119
Phoenix Contact
Mounting Hardware NS 35/7.5 PERF. WH PRICED PER METER Din Rail 35mm DIN RAIL 35MMX7.5MM SLOTTED 2M NS 35/ 7,5 WH PERF 2000MM NS35/7.5PERF.WH
3040588
Phoenix Contact
Terminal Block Tools & Accessories PC Connector Accessories Keying CONN TERM BLK KEYING STAR RED Phoenix Contact 3040588 Keying Star Terminal Block, Series: PC KEYINGSTAR,RED Phoenix Contact CLIPLINE 系列 键接星
3038671
Phoenix Contact
Terminal Block Tools & Accessories FBS 20-5 GY Conn Jumper M 20 POS ST BRIDGE TERM BLOCK 20POS Cross connector/jumper for modular terminal block FBS 20-5 GY CROSSCONNECTOR/JUMPERPOS20
0828744
Phoenix Contact
ターミナルブロック・ツールとアクセサリ UCT-TMF 5 TERM BLOCK MARKER 5.2MM WHITE Terminal Block Tools & Accessories UCT-TMF 5 Connector Accessories Terminal Block Marker Polycarbonate White UCT-TMF5
3030174
Phoenix Contact
Terminal Block Tools & Accessories FBS 3-5 Conn Jumper PL 3 POS ST CROSS CONN BRIDGE TERM BLK 3POS Phoenix Contact 3030174 Jumper Bridge;Plug-InBridge;3;Red;Crossconnectionsintheterminalcenter. Comb bridge; ways:3; Width:5mm Phoenix Contact 3 极跳片
3032127
Phoenix Contact
Terminal Block Tools & Accessories FBS 50-5 GY Conn Jumper M 50 POS ST BRIDGE TERM BLOCK 50POS Cross connector/jumper for modular terminal block FBS 50-5 GY Cross connector/jumper for modular terminal block, Number of positions: 50, Color: gray CROSSCONNECTOR/JUMPERPOS50GRAY
3030161
Phoenix Contact
Terminal Block Tools & Accessories FBS 2-5 Conn Jumper PL 2 POS ST CROSS CONN BRIDGE TERM BLK 2POS Phoenix Contact 3030161 Jumper FBS 2-5 BRIDGE, PLUG IN Bridge;Plug-InBridge;2;Red;Crossconnectionsintheterminalcenter. Comb bridge; ways:2; Width:5mm Phoenix Contact 2 极跳片

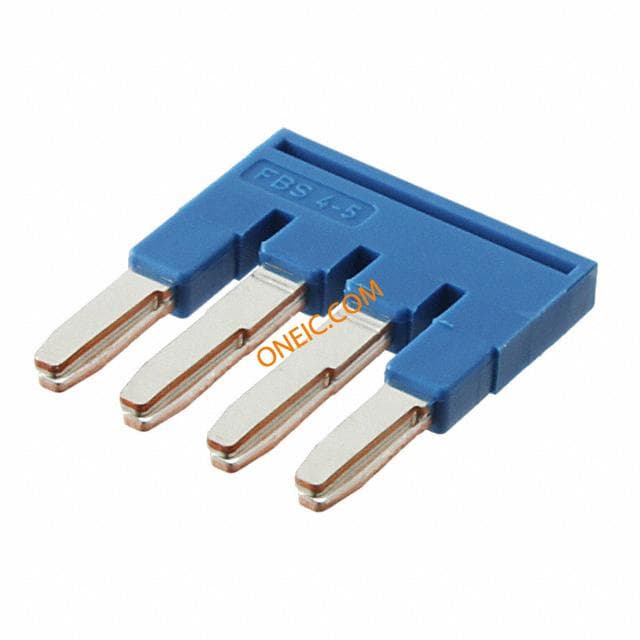

3036893
Phoenix Contact
Terminal Block Tools & Accessories FBS 4-5 BU Conn Jumper M 4 POS ST BRIDGE TERM BLOCK 4POS Cross connector/jumper for modular terminal block FBS 4-5 BU CROSSCONNECTOR/JUMPERPOS4,BLUE
3030417
Phoenix Contact
Terminal Block Tools & Accessories D-ST 2.5 Connector Accessories End Cover Gray END COVER TERM BLOCK Phoenix Contact 3030417 Cover Terminal Block, Series: D-ST COVER EndCover;TermBlk;Gray;48.6mmL;2.2mmW;29.1mmH End piece; Application: ST2.5; polyamide Phoenix Contact D-ST 系列 端板
3030190
Phoenix Contact
Terminal Block Tools & Accessories FBS 5-5 5 POS BRIDGE Conn Jumper PL 5 POS ST CROSS CONN BRIDGE TERM BLK 5POS Phoenix Contact 3030190 Jumper BRIDGE, PLUG IN Bridge;Plug-InBridge;5;Red;Crossconnectionsintheterminalcenter. Phoenix Contact 5 极跳片
3032114
Phoenix Contact
Terminal Block Tools & Accessories FBS 50-5 BU Conn Jumper M 50 POS ST BRIDGE TERM BLOCK 50POS Cross connector/jumper for modular terminal block FBS 50-5 BU Cross connector/jumper for modular terminal block, Number of positions: 50, Color: blue CROSSCONNECTOR/JUMPERPOS50BLUE

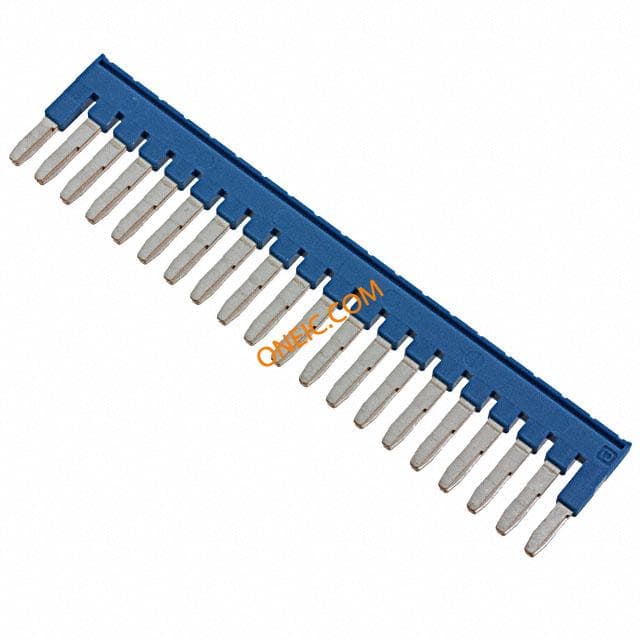

3036929
